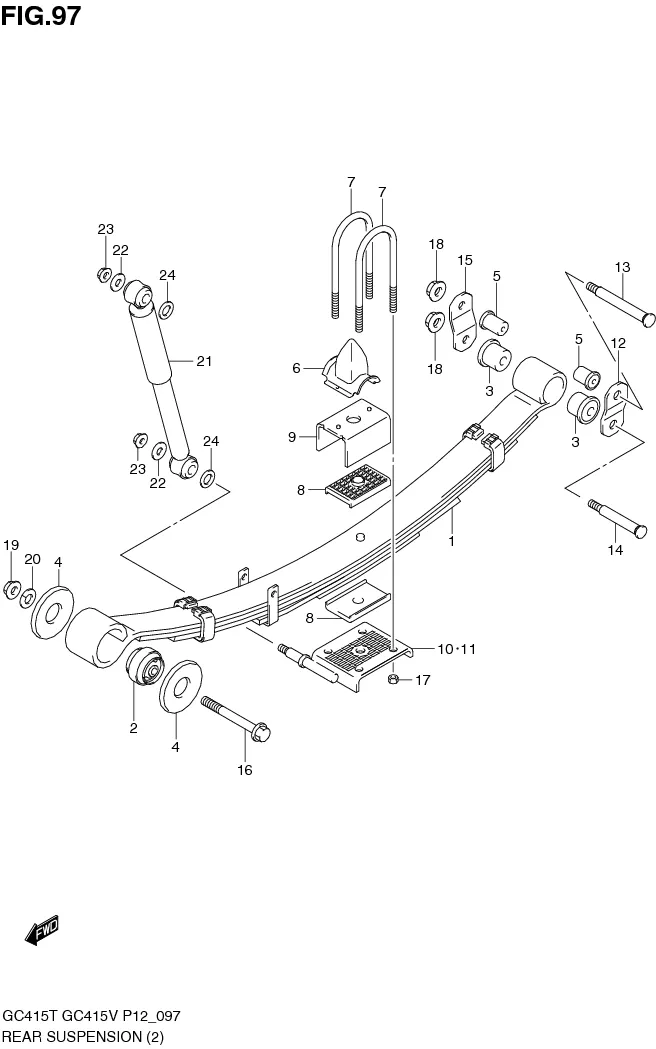

FIG.97 REAR SUSPENSION (GC415V: TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41310-61J40-000	SPRING ASSY, REAR	2	Rp1.629.000	MT:GLX
1-1	41310-61J10-000	SPRING ASSY, REAR	2	Rp1.592.000	MT:VAN,GA,GL,AT:GLX
2	41331-61J00-000	BUSHING, REAR SPRING FR	2	Rp95.000
3	41333-61J00-000	BUSHING, SPRING SHACKLE NO.2	4	Rp19.500
4	41334-61J01-000	SPACER	4	Rp21.500
5	41465-61J00-000	BUSHING, SPRING SHACKLE NO.1	4	Rp14.500
6	42150-61J20-000	BUMPER, REAR SPRING	2	Rp121.000
7-1	41411-61J00-000	U BOLT, REAR SPRING	4	Rp65.500	VAN
7-2	41411-61J10-000	U BOLT, REAR SPRING	4	Rp53.000	GA,GL,GLX
8-1	41341-61J00-000	PAD, REAR SPRING	4	Rp127.500	VAN
8-2	41341-61J20-000	PAD, REAR SPRING	4	Rp184.500	GA,GL,GLX
9-1	41421-61J10-000	PLATE, REAR SPRING CLAMP	2	Rp186.000	VAN
9-2	DISCONTINUE SUB: 41421-61J20-000	PLATE, REAR SPRING CLAMP	2	-	GA,GL,GLX
10	41430-61J20-000	SEAT, REAR SPRING RH	1	Rp106.500
11	41440-61J20-000	SEAT, REAR SPRING LH	1	Rp105.000
12	41462-61J00-000	PLATE, SPRING SHACKLE INNER	1	Rp110.500
13	41463-61J00-000	PIN, SPRING SHACKLE UPPER	1	Rp69.500
14	41463-61J10-000	PIN, SPRING SHACKLE LOWER	1	Rp67.500
15	41461-61J00-000	PLATE, SPRING SHACKLE OUTER	2	Rp29.500
16	09103-12091-000	BOLT (12X100)	2	Rp70.000
17-1	08310-0012A-000	NUT	8	Rp17.500	VAN
17-2	08310-0012A-000	NUT	16	Rp17.500	GA,GL,GLX
18	08316-1010A-000 SUB: 08316B1010AN000	NUT	4	Rp3.500
19	08316-1012A-000 SUB: 08316B1012AN000	NUT	2	Rp6.500
20	DISCONTINUE SUB: 08321-0112A-000	LOCK WASHER	2	-
21-1	41700-61J00-000	ABSORBER ASSY, REAR SHOCK	2	Rp216.000	VAN
21-2	41700-61J10-000	ABSORBER ASSY, REAR SHOCK	2	Rp284.500	GA,GL,GLX
22	09160-12073-000	WASHER (12.5X32X2.3)	4	Rp16.000
23	08316-1012A-000 SUB: 08316B1012AN000	NUT	4	Rp6.500
24	08322-0116A-000 SUB: 08322B0116AN000	WASHER	4	Rp6.500
