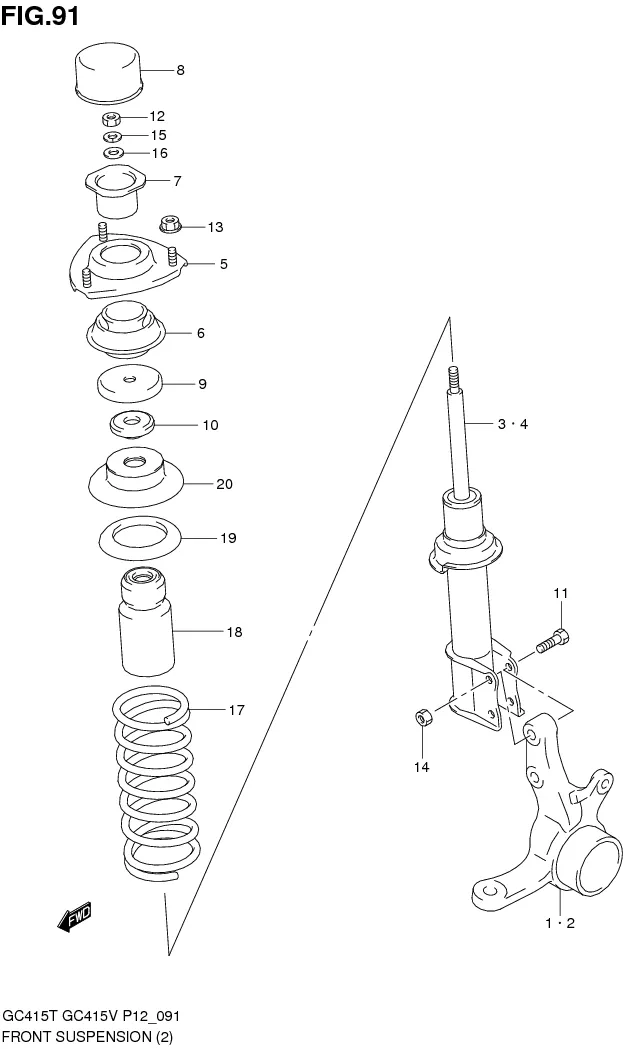

FIG.91 FRONT SUSPENSION (TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	45111-61J10-000	KNUCKLE, STEERING RH	1	Rp487.500
2	45151-61J10-000	KNUCKLE, STEERING LH	1	Rp487.500
3-1	41601-61J00-000 SUB: 41601-61J30-000	STRUT ASSY, FRONT SUSPENSION	1	Rp828.000	GC415T
3-2	41601-61J00-000	STRUT ASSY, FRONT SUSPENSION	1	Rp828.000	GC415V:VAN,GA,BLIND VAN
3-3	41601-60K10-000	STRUT ASSY, FRONT SUSPENSION	1	Rp830.500	GC415V:GL,GLX,SGX
4-1	41602-61J00-000 SUB: 41602-61J30-000	STRUT ASSY, FRONT SUSPENSION	1	Rp828.000	GC415T
4-2	41602-61J00-000	STRUT ASSY, FRONT SUSPENSION	1	Rp828.000	GC415V:VAN,GA,BLIND VAN
4-3	41602-60K10-000	STRUT ASSY, FRONT SUSPENSION	1	Rp830.500	GC415V:GL,GLX,SGX
5	41710-61J01-000	SUPPORT, FRONT STRUT	2	Rp110.500
6	41721-85010-000 SUB: 41721-77500-000	RUBBER, FRONT STRUT SUPPORT	2	Rp97.500
7	41723-85000-000 SUB: 41723-85050-000	STOPPER, FRONT STRUT REBOUND	2	Rp47.000
8	41724-61J00-000	CAP, STRUT SUPPORT	2	Rp69.000
9	41741-77500-000 SUB: 41741-77500L000	SEAT, FRONT STRUT BEARING	2	Rp48.000
10	41742-60G00-000	BEARING, FRONT STRUT	2	Rp159.000
11	09103-12090-000	BOLT (12X55)	4	Rp39.500
12	08310-0014B-000 SUB: 08310B0014BN000	NUT	2	Rp9.000
13	09159-08140-000	NUT	6	Rp20.000
14	08316-1012A-000 SUB: 09159-12064-000	NUT	4	Rp6.500
15	08321-0114B-000 SUB: 08321B0114BN000	LOCK WASHER	2	Rp10.500
16	08322-0114B-000	WASHER	2	Rp16.000
17-1	41111-61J00-000	SPRING, FRONT COIL	2	Rp243.000	GC415V:VAN,GA,BLIND VAN
17-2	41111-60K00-000	SPRING, FRONT COIL	2	Rp268.500	GC415V:GL,GLX,SGX
17-3	41111-61J30-000	SPRING, FRONT COIL	2	Rp248.000	GC415T
18	42111-61J00-000	STOPPER, FRONT BUMP	2	Rp169.000
19	41211-61J00-000	SEAT, FR SPRING RUBBER	2	Rp18.500
20	41230-61J00-000	SEAT, FRONT SPRING	2	Rp74.500
