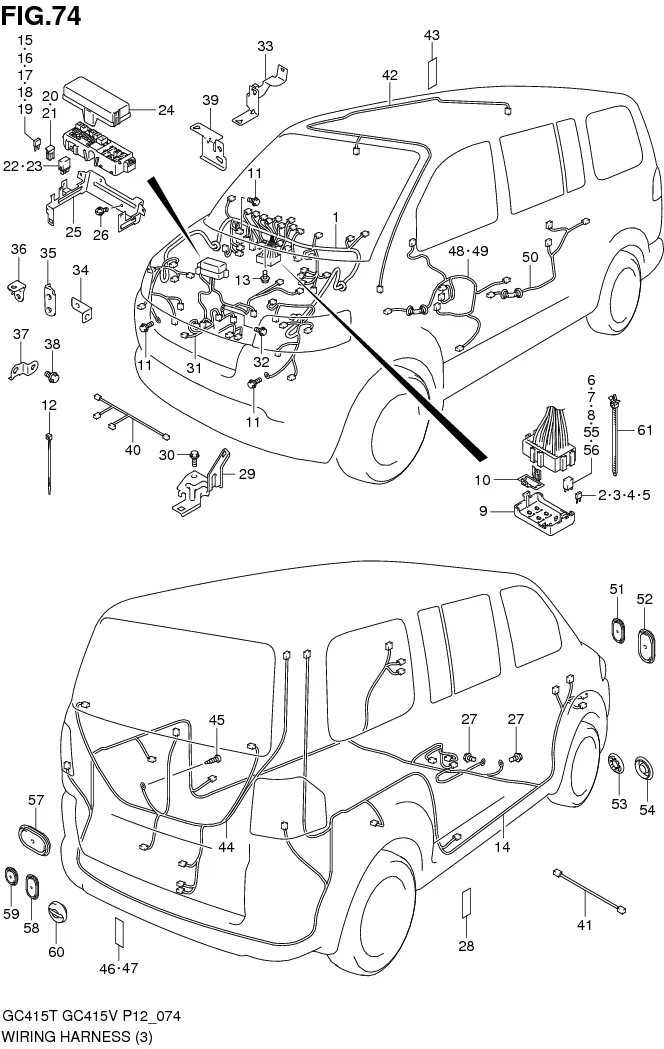

FIG.74 WIRING HARNESS (GC415V:TYPE 2)

FIG.74 WIRING HARNESS (GC415V:TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 36601-60K00-000		 HARNESS ASSY, MAIN 1 - GA:N/AIR CON
1-1 36610-60K00-000 HARNESS ASSY, MAIN 1 Rp3.138.500 VAN GA,BLIND VAN:N/AIR CON
1-7 36610-60KQ0-000 HARNESS ASSY, MAIN 1 Rp5.650.000 GLX,SGX:AT
1-6 36610-60K70-000 HARNESS ASSY, MAIN 1 Rp4.806.000 GLX,SGX:MT
1-4 36601-60K10-000 HARNESS ASSY, MAIN 1 Rp3.541.500 GA:W/AIR CON
1-3 36610-60K10-000 HARNESS ASSY, MAIN 1 Rp3.580.000 GA,BLIND VAN:W/AIR CON
1-5 36610-60K50-000 HARNESS ASSY, MAIN 1 Rp8.481.000 GL
2 09481-10501-000
SUB: 09481M10501-000		 .FUSE (10A) 0 Rp12.000
3 09481-15501-000
SUB: 09481M15501-000		 .FUSE (15A) 0 Rp12.000
4 09481-20501-000 .FUSE (20A) 0 Rp14.500
5 09481-30501-000
SUB: 09481M30501-000		 .FUSE (30A) 1 Rp13.000
6 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, HEATER 1 Rp47.000 GA,BLIND VAN:W/AIR CON GL,GLX,SGX
7 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, FRONT FOG LAMP 1 Rp47.000 W/FRONT FOG LAMP
8 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, REAR AIR CON 3 Rp47.000 W/REAR AIR CONDITIONER
9 36717-61J01-000 .COVER, FUSE BOX 1 Rp270.000
10 DISCONTINUE
SUB: 33941-61J00-000		 BRACKET, CONNECTOR 1 -
11 09115-06005-000 BOLT (6X16) 3 Rp14.000
12 09407-18402-000
SUB: 09407B18402N000		 CLAMP (L:165) 1 Rp8.000
13 02162-0612A-000 BOLT 1 Rp11.000
14-6 36630-60KP0-000 HARNESS ASSY, FLOOR 1 Rp6.055.500 GLX,SGX:AT
14-5 36630-60K21-000 HARNESS ASSY, FLOOR 1 Rp5.049.500 GL,GLX,SGX:MT FROM 2008-9
14-4 36630-60K21-000
SUB: 36630-60K20-000		 HARNESS ASSY, FLOOR 1 Rp5.049.500 GL,GLX,SGX:MT
14-2 DISCONTINUE
SUB: 36630-60K80-000		 HARNESS ASSY, FLOOR 1 - GA,BLIND VAN:N/AIR CON
14-1 36630-60K00-000 HARNESS ASSY, FLOOR 1 Rp3.323.500 VAN
14-3 36630-60K10-000 HARNESS ASSY, FLOOR 1 Rp4.253.500 GA,BLIND VAN:W/AIR CON
15 09481-10501-000
SUB: 09481M10501-000		 .FUSE (10A) 2 Rp12.000
16 09481-15501-000
SUB: 09481M15501-000		 .FUSE (15A) 2 Rp12.000
17 09481-25501-000 .FUSE (20A) 1 Rp14.000
18 09481-30401-000 .FUSE (30A) 1 Rp42.000
19 09481-30501-000
SUB: 09481M30501-000		 .FUSE (30A) 1 Rp13.000
20 09481-50401-000
SUB: 09481M50401-000		 .FUSE (50A) 1 Rp50.500
21 09481M60401-000 .FUSE (60A) 2 Rp66.000
22 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, STARTER MOTOR 1 Rp47.000
23 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, RADIATOR FAN 1 Rp47.000
24 36738-61J01-000 .COVER, FUSE BOX 1 Rp337.000
25 36731-61J00-000 BRACKET, MAIN FUSE BOX 1 Rp82.000
26 02162-0612A-000 BOLT 2 Rp11.000
27 09115-06005-000 BOLT (6X16) 3 Rp14.000
28 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS QTR 2 Rp6.500
29 36651-60K00-000
SUB: 36651B60K00N000		 BRACKET, T/M HARNESS 1 Rp13.500
30 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
31 36650-60K00-000 HARNESS ASSY, ENGINE 1 Rp2.711.500
32 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, ENGINE GROUND 1 -
33 DISCONTINUE
SUB: 36651-61J00-000		 BRACKET, ENGINE HARNESS 1 -
34 36651-60G20-000 BRACKET, ENGINE HARNESS 1 Rp48.000
35 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, CRANK SENSOR WIRE 1 Rp5.500
36 36995M57B30-000 BRACKET, CAS WIRE 2 Rp5.500
37 36655-61J00-000 BRACKET, ENGINE HARNESS 1 Rp39.500
38 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
39 36651-61J10-000 BRACKET, OIL PRESSURE 1 Rp51.000
40-1 36895-60K00-000 WIRE, OIL PRESSURE 1 Rp98.500 N/POWER STEERING
40-2 36895-60K10-000 WIRE, OIL PRESSURE 1 Rp117.000 W/POWER STEERING
41 36840-61J00-000 WIRE, FUEL PUMP & GAUGE 1 Rp63.000
42-1 36820-61J00-000 WIRE, ROOF 1 Rp70.500 VAN,BLIND VAN
42-3 36820-60K00-000 WIRE, ROOF 1 Rp155.500 GL,GLX,SGX
42-2 36820-61J11-000 WIRE, ROOF 1 Rp118.000 GA
43 36930M82000-000
SUB: 36930M82010-000		 COVER, ROOF WIRE 1 Rp6.500
44-1 DISCONTINUE
SUB: 36680-61J20-000		 HARNESS ASSY, BACK DOOR 1 - VAN
44-2 DISCONTINUE
SUB: 36680-61J50-000		 HARNESS ASSY, BACK DOOR 1 - GA,BLIND VAN
44-3 36680-61J30-000 HARNESS ASSY, BACK DOOR 1 Rp242.500 GL,GLX,SGX
45 DISCONTINUE
SUB: 09139-05028-000		 SCREW 1 -
46 36930M82000-000
SUB: 36930M82010-000		 COVER, BACK DOOR WIRE 1 Rp6.500
47 DISCONTINUE
SUB: 84761-50X50-000		 SEAL (140X190) 1 -
48-2 36756-60K10-000 WIRE, FRONT DOOR DRIVER 1 Rp348.500 GL
48-3 36756-60K30-000 WIRE, FRONT DOOR DRIVER 1 Rp436.500 GLX,SGX
48-1 36756-61J20-000 WIRE, FRONT DOOR DRIVER 1 Rp416.000 GA,BLIND VAN
49-1 36757-61J20-000 WIRE, FRONT DOOR PASSENGER 1 Rp222.500 GA,BLIND VAN
49-2 36757-60K00-000 WIRE, FRONT DOOR PASSENGER 1 Rp194.500 GL
49-3 36757-60K10-000 WIRE, FRONT DOOR PASSENGER 1 Rp233.000 GLX,SGX
50-1 36751-61J20-000 WIRE, REAR DOOR 2 Rp179.500 GA,BLIND VAN
50-2 36751-60K00-000 WIRE, REAR DOOR 1 Rp175.000 GL,GLX,SGX
51 DISCONTINUE
SUB: 36757-60B00-000		 CAP, DOOR HARNESS BODY 2 - VAN
52 DISCONTINUE
SUB: 09250-24005-000		 CAP, DOOR HARNESS BODY 2 - VAN
53 09250M20031-000
SUB: 09250-20011-000		 CAP, REAR DOOR HOLE 2 Rp4.500 VAN
54 09250-25007-000 CAP, REAR DOOR HOLE 2 Rp10.500 VAN
55 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 1 Rp47.000
56 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FUEL 1 Rp47.000
57 36757-65D90-000 CAP, REAR WASHER NOZZLE 1 Rp21.500 N/REAR WASHER
58 DISCONTINUE
SUB: 38837-61J10-000		 PLUG, RR WASHER HOSE HOLE 1 - N/REAR WASHER
59 DISCONTINUE
SUB: 38837-61J20-000		 PLUG, RR WASHER HOSE HOLE 1 - N/REAR WASHER
60 09250-20034-000
SUB: 09250-20009-000		 CAP, RR WASHER HOSE HOLE 1 Rp35.000 N/REAR WASHER
61 09407-17402-000
SUB: 09407-14408-000		 CLAMP 1 Rp39.000
