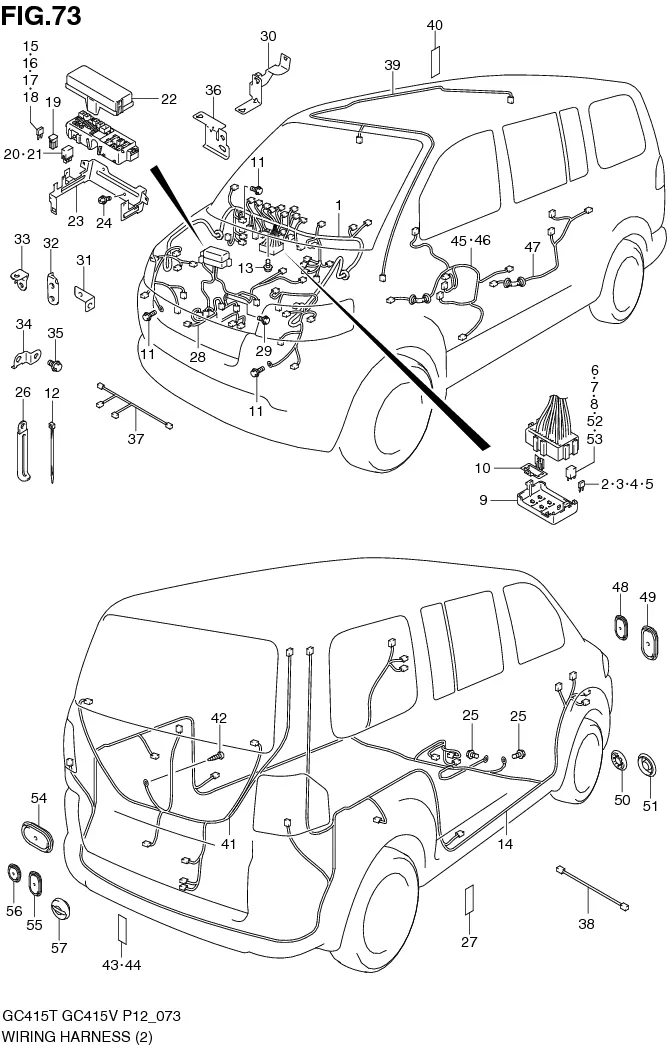

FIG.73 WIRING HARNESS (GC415V:TYPE 1)

FIG.73 WIRING HARNESS (GC415V:TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610-61J10-000 HARNESS ASSY, MAIN 1 Rp10.105.000 GA:W/AIR CON 2 PERSONS 5 PERSONS
1-1 DISCONTINUE
SUB: 36610-61J01-000		 HARNESS ASSY, MAIN 1 - VAN GA:N/AIR CON 2 PERSONS 5 PERSONS
1-10 36601-61J21-000 HARNESS ASSY, MAIN 1 Rp18.136.000 GLX:AT:EURO 2
1-9 36601-61J00-000 HARNESS ASSY, MAIN 1 Rp13.806.000 GLX:MT:EURO 2
1-8 36601-61J10-000 HARNESS ASSY, MAIN 1 Rp12.436.000 GL:EURO 2
1-7 36601-61J50-000 HARNESS ASSY, MAIN 1 - GA:W/AIR CON 8 PERSONS
1-5 36610-61JU1-000 HARNESS ASSY, MAIN 1 Rp18.440.500 GLX:AT
1-4 36610-61J31-000 HARNESS ASSY, MAIN 1 - GLX:MT
1-3 DISCONTINUE
SUB: 36610-61J20-000		 HARNESS ASSY, MAIN 1 - GL
1-6 36601-61J40-000 HARNESS ASSY, MAIN 1 - GA:N/AIR CON 8 PERSONS
2 09481-10501-000
SUB: 09481M10501-000		 .FUSE (10A) 4 Rp12.000
3 09481-15501-000
SUB: 09481M15501-000		 .FUSE (15A) 0 Rp12.000
4 09481-20501-000 .FUSE (20A) 0 Rp14.500
5 09481-30501-000
SUB: 09481M30501-000		 .FUSE (30A) 1 Rp13.000
6 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, HEATER 1 Rp47.000 GLX
7 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, FRONT FOG LAMP 1 Rp47.000 W/FRONT FOG LAMP
8 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, REAR AIR CON 3 Rp47.000 W/REAR AIR CONDITIONER
9 36717-61J01-000 .COVER, FUSE BOX 1 Rp270.000
10 DISCONTINUE
SUB: 33941-61J00-000		 BRACKET, CONNECTOR 1 -
11 09115-06005-000 BOLT (6X16) 3 Rp14.000
12 09407-18402-000
SUB: 09407B18402N000		 CLAMP (L:165) 1 Rp8.000
13 02162-0612A-000 BOLT 1 Rp11.000
14-1 36630-61J00-000 HARNESS ASSY, FLOOR 1 Rp11.223.500 VAN
14-5 DISCONTINUE
SUB: 36630-61J40-000		 HARNESS ASSY, FLOOR 1 - GLX:AT
14-4 DISCONTINUE
SUB: 36630-61J30-000		 HARNESS ASSY, FLOOR 1 - GL GLX:MT
14-3 DISCONTINUE
SUB: 36630-61J20-000		 HARNESS ASSY, FLOOR 1 - GA:W/AIR CON
14-2 DISCONTINUE
SUB: 36630-61J10-000		 HARNESS ASSY, FLOOR 1 - GA:N/AIR CON
15 09481-10501-000
SUB: 09481M10501-000		 .FUSE (10A) 2 Rp12.000
16 09481-15501-000
SUB: 09481M15501-000		 .FUSE (15A) 2 Rp12.000
17 09481-20501-000 .FUSE (20A) 1 Rp14.500
18 09481-30501-000
SUB: 09481M30501-000		 .FUSE (30A) 2 Rp13.000
19 09481M60401-000 .FUSE (60A) 2 Rp66.000
20 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, STARTER MOTOR 1 Rp47.000
21 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY, RADIATOR FAN 1 Rp47.000
22 36738-61J01-000 .COVER, FUSE BOX 1 Rp337.000
23 36731-61J00-000 BRACKET, MAIN FUSE BOX 1 Rp82.000
24 02162-0612A-000 BOLT 2 Rp11.000
25 09115-06005-000 BOLT (6X16) 3 Rp14.000
26 DISCONTINUE
SUB: 09404-08418-000		 CLAMP (L:65) 1 -
27 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS 1 Rp6.500
28-1 DISCONTINUE
SUB: 36650-61J00-000		 HARNESS ASSY, ENGINE 1 - MT
28-4 36650-61J20-000 HARNESS ASSY, ENGINE 1 Rp8.423.000 AT:GLX:EURO 2
28-2 DISCONTINUE
SUB: 36650-61J60-000		 HARNESS ASSY, ENGINE 1 - MT:EURO 2
28-3 DISCONTINUE
SUB: 36650-61J50-000		 HARNESS ASSY, ENGINE 1 - AT
29 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, ENGINE GROUND 1 -
30 DISCONTINUE
SUB: 36651-61J00-000		 BRACKET, ENGINE HARNESS 1 -
31 36651-60G20-000 BRACKET, ENGINE HARNESS 1 Rp48.000
32 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, CRANK SENSOR WIRE 1 Rp5.500
33 36995M57B30-000 BRACKET, CAS WIRE 2 Rp5.500
34 36655-61J00-000 BRACKET, ENGINE HARNESS 1 Rp39.500
35 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
36 36651-61J10-000 BRACKET, OIL PRESSURE 1 Rp51.000
37-1 36895-61J00-000 WIRE, OIL PRESSURE 1 Rp483.500 N/POWER STEERING
37-2 36895-61J10-000 WIRE, OIL PRESSURE 1 Rp589.000 W/POWER STEERING
38 36840-61J00-000 WIRE, FUEL PUMP & GAUGE 1 Rp63.000
39-1 36820-61J00-000 WIRE, ROOF 1 Rp70.500 VAN
39-2 36820-61J11-000 WIRE, ROOF 1 Rp118.000 GA,GL,GLX
40 36930M82000-000
SUB: 36930M82010-000		 COVER, ROOF WIRE 1 Rp6.500
41-1 DISCONTINUE
SUB: 36680-61J20-000		 HARNESS ASSY, BACK DOOR 1 - VAN,GA
41-2 36680-61J30-000 HARNESS ASSY, BACK DOOR 1 Rp242.500 GL,GLX
42 DISCONTINUE
SUB: 09139-05028-000		 SCREW 1 -
43 36930M82000-000
SUB: 36930M82010-000		 COVER, BACK DOOR WIRE 1 Rp6.500
44 DISCONTINUE
SUB: 84761-50X50-000		 SEAL (140X190) 1 -
45-1 DISCONTINUE
SUB: 36756-61J10-000		 WIRE, FRONT DOOR DRIVER 1 - GL,GLX
45-2 36756-61J30-000 WIRE, FRONT DOOR DRIVER 1 Rp484.500 GL,GLX:EURO 2
46 36757-61J10-000 WIRE, FRONT DOOR PASSENGER 1 Rp220.000 GL,GLX
47 DISCONTINUE
SUB: 36751-61J10-000		 WIRE, REAR DOOR 2 - GL,GLX
48 DISCONTINUE
SUB: 36757-60B00-000		 CAP, DOOR HARNESS BODY 2 - VAN,GA
49 DISCONTINUE
SUB: 09250-24005-000		 CAP, DOOR HARNESS BODY 2 - VAN,GA
50 09250M20031-000
SUB: 09250-20011-000		 CAP, REAR DOOR HOLE 2 Rp4.500 VAN,GA
51 09250-25007-000 CAP, REAR DOOR HOLE 2 Rp10.500 VAN,GA
52 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 1 Rp47.000
53 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FUEL 1 Rp47.000
54 36757-65D90-000 CAP, REAR WASHER NOZZLE 1 Rp21.500 N/REAR WASHER
55 DISCONTINUE
SUB: 38837-61J10-000		 PLUG, RR WASHER HOSE HOLE 1 - N/REAR WASHER
56 DISCONTINUE
SUB: 38837-61J20-000		 PLUG, RR WASHER HOSE HOLE 1 - N/REAR WASHER
57 09250-20034-000
SUB: 09250-20009-000		 CAP, RR WASHER HOSE HOLE 1 Rp35.000 N/REAR WASHER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
