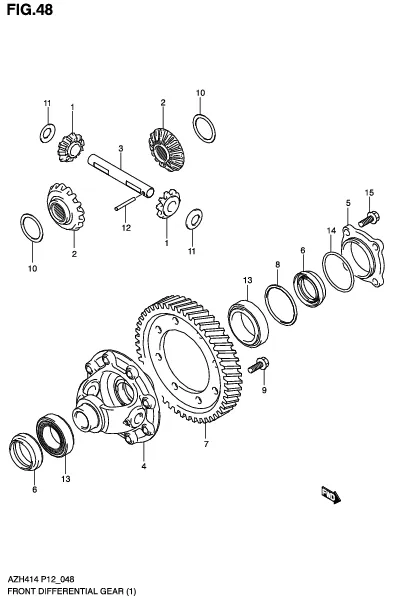

FIG.48 FRONT DIFFERENTIAL GEAR (MT)

FIG.48 FRONT DIFFERENTIAL GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 27331-71L00-000 PINION, DIFFERENTIAL 2 Rp511.500
2 27341-71L00-000 GEAR, DIFFERENTIAL SIDE 2 Rp707.000
3 27351-70C01-000 SHAFT, DIFFERENTIAL PINION 1 Rp241.500
4 27411-71L00-000 CASE, DIFFERENTIAL 1 Rp1.863.500
5 27421-70C00-000 RETAINER, DIFF SIDE BEARING 1 Rp468.000
6 27432-54LA0-000 SEAL, DIFF SIDE OIL 2 Rp88.000
7 27511-71C20-000 GEAR, FINAL 1 Rp2.695.500
8-9 DISCONTINUE
SUB: 29541-74C70-000		 SHIM, SIDE BEARING (T:0.81) 0 -
8-11 DISCONTINUE
SUB: 29541-74C90-000		 SHIM, SIDE BEARING (T:0.87) 0 -
8-10 DISCONTINUE
SUB: 29541-74C80-000		 SHIM, SIDE BEARING (T:0.84) 0 -
8-8 DISCONTINUE
SUB: 29541-74C60-000		 SHIM, SIDE BEARING (T:0.78) 0 -
8-7 DISCONTINUE
SUB: 29541-74C50-000		 SHIM, SIDE BEARING (T:0.75) 0 -
8-5 DISCONTINUE
SUB: 29541-74C30-000		 SHIM, SIDE BEARING (T:0.69) 0 -
8-4 DISCONTINUE
SUB: 29541-74C20-000		 SHIM, SIDE BEARING (T:0.66) 0 -
8-3 DISCONTINUE
SUB: 29541-74C10-000		 SHIM, SIDE BEARING (T:0.63) 0 -
8-2 DISCONTINUE
SUB: 29541-74C00-000		 SHIM, SIDE BEARING (T:0.60) 0 -
8-1 DISCONTINUE
SUB: 29541-75C00-000		 SHIM, SIDE BEARING (T:0.30) 0 -
8-6 DISCONTINUE
SUB: 29541-74C40-000		 SHIM, SIDE BEARING (T:0.72) 0 -
9 09103-10189-000 BOLT (10X23) 8 Rp29.000
10-3 09160M35002-000
SUB: 09160-35002-000		 SHIM (T:1.00) 0 Rp9.500
10-7 09160M35004-000
SUB: 09160-35004-000		 SHIM (T:1.20) 0 Rp14.500
10-6 09160M35010-000
SUB: 09160-35010-000		 SHIM (T:1.15) 0 Rp9.500
10-5 09160M35003-000
SUB: 09160-35003-000		 SHIM (T:1.10) 0 Rp9.000
10-4 09160M35009-000
SUB: 09160-35009-000		 SHIM (T:1.05) 0 Rp14.000
10-2 09160M35008-000
SUB: 09160-35008-000		 SHIM (T:0.95) 0 Rp14.500
10-1 09160M35006-000
SUB: 09160-35006-000		 SHIM (T:0.90) 0 Rp8.500
11 09164-17006-000 WASHER (17.3X32X1) 2 Rp28.500
12 09205M05007-000
SUB: 09205-05007-000		 SPRING PIN (5X36) 1 Rp5.000
13 09265-38001-000 BEARING (38X63X17) 2 Rp631.000
14 09280-58005-000 O RING (D:2.3,ID:56.9) 1 Rp30.000
15 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
