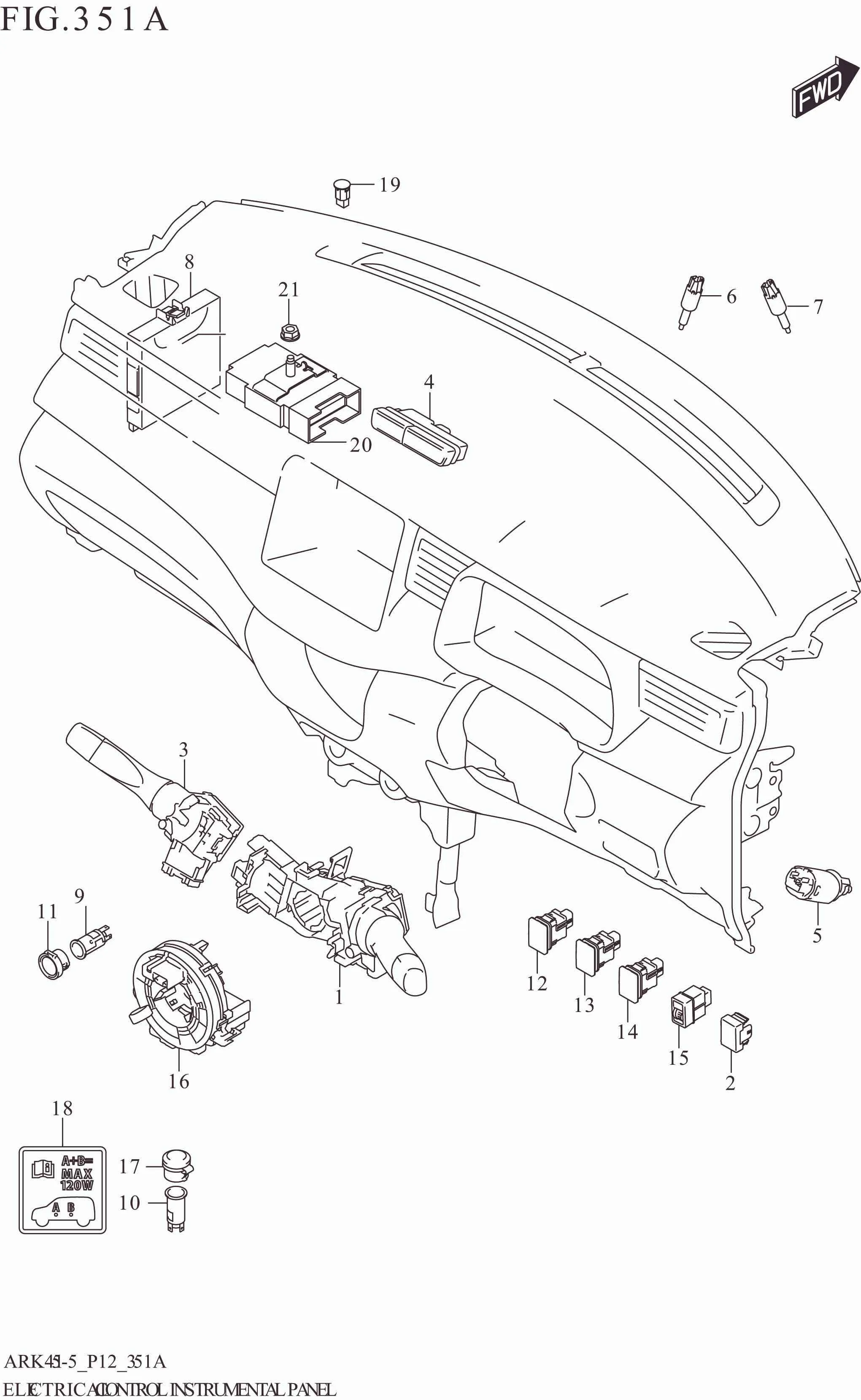

FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 37210-73R10-000 SWITCH ASSY,LIGHTING & TURN 1 Rp213.000
1-3 37210-52SB0-000 .SWITCH ASSY,LIGHTING & TURN 1 Rp888.000
1-1 37210-73R00-000 SWITCH ASSY,LIGHTING & TURN 1 Rp162.500
2 37285M66R00-000 CAP,OPTION SW HOLE 0 Rp5.500
3-1 37310-73R10-000 SWITCH ASSY,WIPER & WASHER 1 Rp225.000
3-2 37310-52SB0-000 SWITCH ASSY,WIPER & WASHER 1 Rp250.500
4 37430M68P20-000 SWITCH ASSY,HAZARD &A/B (BLACK) 1 Rp235.500
5 37740-73R00-000 SET,STOP LAMP SW 1 Rp200.500
6 37970M74L02-000 SWITCH ASSY,CLUTCH 1 Rp165.500
7 37970M71M02-000 SWITCH ASSY,CLUTCH START 1 Rp86.500
8-7 36775-86TD1-000 CONTROLLER ASSY,BODY ELEC 1 Rp2.162.500
8-6 36775-86T30-000 CONTROLLER ASSY,BODY ELEC 1 Rp2.162.500
8-5 36775-86TB1-000 CONTROLLER ASSY,BODY ELEC 1 Rp2.289.500
8-3 36775-86T10-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.763.500
8-2 36775-73R51-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.501.000
8-1 36775-73R51-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.501.000
8-4 36775-86TB1-000
SUB: 36775-86TB0-000		 CONTROLLER ASSY,BODY ELEC 1 Rp2.289.500
9 39420-76F00-000 BODY,SOCKET 1 Rp103.000
10 39420-76F00-000 BODY,SOCKET 1 Rp103.000
11 39440M56R20-5PK COVER,SOCKET (BLACK) 1 Rp18.000
12 37780M66R00-000 SWITCH ASSY,ID STOP OFF 1 Rp107.500
13 37775M66R00-000 SWITCH ASSY,PARK SNSR 1 Rp120.000
14 37585M66R00-000 SWITCH ASSY,ESP OFF 1 Rp103.000
15 35180M66R00-000 SWITCH ASSY,HEADLAMP LEVELING 1 Rp114.000
16-1 37410-73R00-000 SET,CONTACT COIL & SAS 1 Rp1.087.000
16-2 37410-73R10-000 SET,CONTACT COIL & SAS 1 Rp1.149.000
16-3 37410-52SB0-000 SET,CONTACT COIL & AUTO LIGHT 1 Rp1.168.500
17 39441-67L00-5PK COVER,SOCKET (BLACK) 1 Rp16.500
18 39442-73R10-000 LABEL,ACC SOCKET 1 Rp4.000
19 38680-62R00-000 SENSOR ASSY,AUTO LIGHT 1 Rp639.500
20 3B140-86T00-000 CONTROLLER ASSY,GATEWAY 1 Rp576.500
21 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
