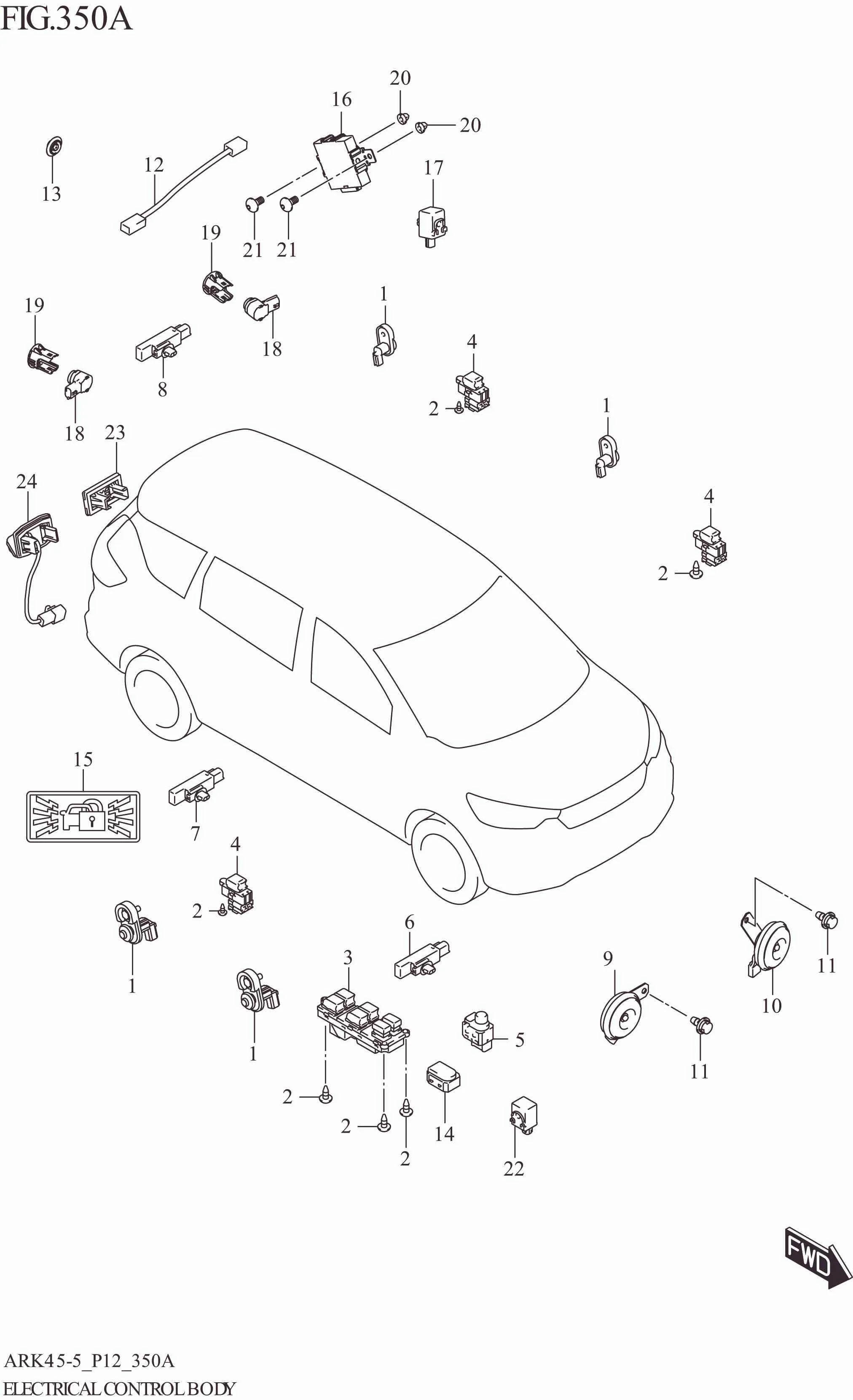

FIG. 350A ELECTRICAL CONTROL BODY

FIG. 350A ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 37670M56R00-000 SWITCH ASSY,DOOR 4 Rp54.000
2 03541-0410A-000 SCREW 6 Rp11.000
3-1 37990-73RA2-000 SWITCH ASSY,POWER WINDOW MA 1 Rp601.000
3-2 37990-73RA2-000 SWITCH ASSY,POWER WINDOW MA 1 Rp601.000
4 37995M79M02-000 SWITCH ASSY,POWER WINDOW SUB 3 Rp109.500
5-1 37950-62J21-000 SWITCH ASSY,MIRROR 1 Rp278.500
5-2 37950-62J31-000 SWITCH ASSY,MIRROR 1 Rp463.500
6 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500
7 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500
8 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500
9 38500-73R00-000 HORN ASSY,LOW PITCHED 1 Rp73.000
10 38500-73RB0-000 HORN ASSY,HIGH PITCHED 1 Rp109.000
11 09115-08001-000 BOLT (8X18) 2 Rp21.500
12 37177M66R10-000 SWITCH ASSY,BACK DOOR KLS 1 Rp184.000
13 09250-16015-000 PLUG (OD:24.5) 1 Rp3.500
14 37285M76M00-5PK CAP,MIRROR SW HOLE (BLACK) 1 Rp33.500
15 36771-79M01-000 LABEL,SECURITY ALARM 1 Rp5.000
16 37730-73R00-000 CONTROLLER ASSY,PARK SNSR 1 Rp371.500
17 37734M56R00-000 BUZZER,PARK SNSR 1 Rp93.500
18-9 37735-73R00-WBY SENSOR ASSY,PARK (IVORY) 2 Rp197.500
18-8 37735-73R00-ZZY SENSOR ASSY,PARK (ORANGE) 2 Rp197.500
18-3 37735-73R00-ZYZ SENSOR ASSY,PARK (GRAY) 2 Rp197.500
18-7 37735-73R00-WBD SENSOR ASSY,PARK (RED) 2 Rp185.500
18-6 37735-73R00-WAE SENSOR ASSY,PARK (KHAKI) 2 Rp197.500
18-4 37735-73R00-ZBD SENSOR ASSY,PARK (BLACK) 2 Rp192.500
18-2 37735-73R00-Z2S SENSOR ASSY,PARK (SILVER) 2 Rp192.500
18-1 37735-73R00-ZQZ SENSOR ASSY,PARK (WHITE) 2 Rp192.500
18-5 37735-73R00-ZLL SENSOR ASSY,PARK (RED) 2 Rp197.500
19-6 37737-73R00-WAE BEZEL,PARK SNSR (KHAKI) 2 Rp78.000
19-9 37737-73R00-WBY BEZEL,PARK SNSR (IVORY) 2 Rp78.000
19-8 37737-73R00-ZZY BEZEL,PARK SNSR (ORANGE) 2 Rp78.000
19-7 37737-73R00-WBD BEZEL,PARK SNSR (RED) 2 Rp73.000
19-5 37737-73R00-ZLL BEZEL,PARK SNSR (RED) 2 Rp78.000
19-4 37737-73R00-ZBD BEZEL,PARK SNSR (BLACK) 2 Rp76.500
19-3 37737-73R00-ZYZ BEZEL,PARK SNSR (GRAY) 2 Rp76.500
19-2 37737-73R00-Z2S BEZEL,PARK SNSR (SILVER) 2 Rp76.500
19-1 37737-73R00-ZQZ BEZEL,PARK SNSR (WHITE) 2 Rp76.500
20 71851M70F00-000 NUT 2 Rp4.000
21 03141M0612A-000 SCREW 2 Rp4.500
22 38590-72M00-000 BUZZER ASSY,KLS 1 Rp441.500
23 39977M66R00-000 CAP,BACK CAMERA 1 Rp16.000
24 39970M72R00-000 CAMERA ASSY,BACK 1 Rp2.859.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
