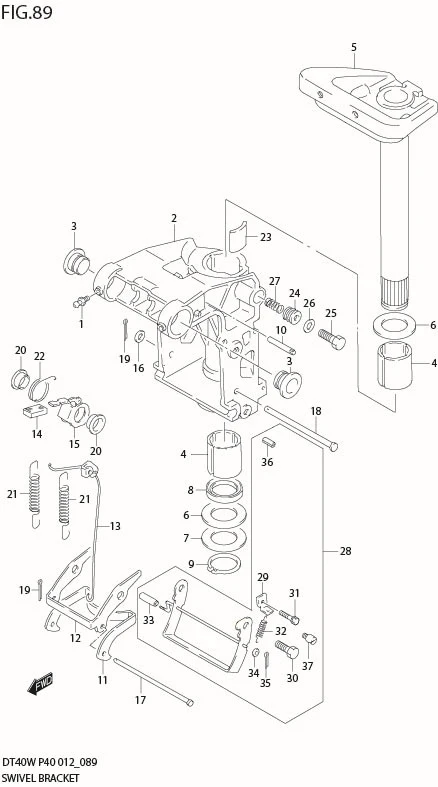

FIG 89 SWIVEL BRACKET (DT40WK P40)

FIG 89 SWIVEL BRACKET (DT40WK P40)
No No. Part Description Qty Price Per Pcs Remarks
1 09205-08002-000 NIPPLE, GREASE 3 Rp30.500
2 45331-94610-000 BRACKET, SWIVEL (BLACK) 1 Rp97.500
3 09202-06031-000 BUSH, SWIVEL BRACKET 2 Rp21.500
4 36894-95201-000 BUSH, STEERING 2 Rp110.500
5 09118-08172-000
SUB: 09118-08098-000		 BRACKET, STEERING (BLACK) 1 Rp53.000
6 09118-08171-000
SUB: 09118-08109-000		 WASHER (39.5X64X1) 3 Rp136.000
7 09118-08168-000
SUB: 29118-93J00-000		 SHIM (39.5X64X0.3) 0 Rp50.500
8 52110-92L00-0EP OIL SEAL (39X51X5) 1 Rp2.935.500
9 52110-92L20-0EP CIRCLIP 1 Rp3.703.500
10 52110-92L10-0EP PIN, RELEASE ARM 1 Rp3.670.000
11 11435-94400-000 ARM, REVERSE LOCK 1 Rp35.000
12 54151-99E00-000 LINK, REVERSE LOCK ARM 1 Rp56.500
13 54211-92L00-0EP LINK, RELEASE 1 Rp637.000
14 54221-92L00-0EP RUBBER, RELEASE LEVER 1 Rp349.500
15 09117-08104-000 LEVER, RELEASE 1 Rp26.000
16 54160-94410-000 WASHER (8.5X14X1.0) 1 Rp296.000
17 54160-94410-000 PIN 1 Rp296.000
18 54160-92L00-000
SUB: 54160-94421-000		 PIN (8X11) 1 Rp283.000
19 DISCONTINUE
SUB: 54165-94400-000		 PIN 2 -
20 09160-13018-000 BUSH 2 Rp36.000
21 09159-12014-000 SPRING 2 Rp37.000
22 09160-12066-000 SPRING 1 Rp13.500
23 DISCONTINUE
SUB: 36894-94401-000		 ADJUSTER, STEERING 1 -
24 09125-05050-000
SUB: 29125-93J10-000		 COVER, STEERING ADJUSTER 1 Rp14.000
25 54166-94431-000 BOLT, STEERING ADJUSTER (8X35) 1 Rp189.000
26 09160-12108-000 WASHER (8.5X14X1.0) 1 Rp16.000
27 09202-06031-000 SPRING, STEERING ADJUSTER 1 Rp21.500
28 36894-95201-000 SHALLOW WATER DRIVE ASSY 1 Rp110.500 OPT
29 09118-08172-000
SUB: 09118-08098-000		 ?STOPPER, SHALLOW WATER 1 Rp53.000 OPT
30 09118-08171-000
SUB: 09118-08109-000		 ?BOLT (10X20.8) 2 Rp136.000 OPT
31 09118-08168-000
SUB: 29118-93J00-000		 ?BOLT (6X16) 1 Rp50.500 OPT
32 52110-92L00-0EP ?SPRING 1 Rp2.935.500 OPT
33 11435-94400-000 ?KNOB, RELEASE LEVER 1 Rp35.000 OPT
34 54151-99E00-000 ?WASHER (5.5X12X0.8) 1 Rp56.500 OPT
35 54211-92L00-0EP ?PIN 1 Rp637.000 OPT
36 54221-92L00-0EP ?SPRING PIN (8X16) 1 Rp349.500 OPT
37 09117-08104-000 ?PIN, SHALLOW DRIVE 1 Rp26.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
