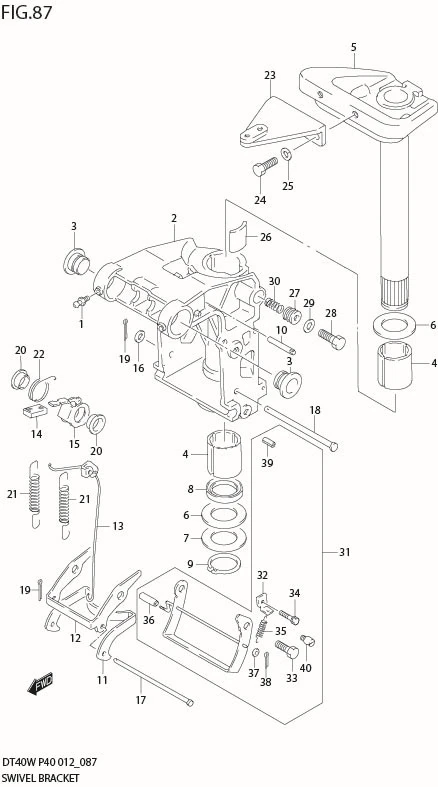

FIG 87 SWIVEL BRACKET (DT40WR P40)

FIG 87 SWIVEL BRACKET (DT40WR P40)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 45255-95500-000		 NIPPLE, GREASE 3 -
2 09160-05029-000 BRACKET, SWIVEL (BLACK) 1 Rp14.000
3 09204-01002-000 BUSH, SWIVEL BRACKET 2 Rp13.000
4 09205-08002-000 BUSH, STEERING 2 Rp30.500
5 45331-94610-000 BRACKET, STEERING (BLACK) 1 Rp97.500
6 22511-99011-000 WASHER (39.5X64X1) 3 Rp39.500
7 43111-92L00-0EP SHIM (39.5X64X0.3) 0 Rp3.548.000
8 43211-87JL0-000 OIL SEAL (39X51X5) 1 Rp213.000
9 43711-97E11-000
SUB: 43711-97E00-000		 CIRCLIP 1 Rp106.500
10 43750-92L10-0EP PIN, RELEASE ARM 1 Rp1.662.500
11 09160-39001-000 ARM, REVERSE LOCK 1 Rp23.000
12 09181-39001-000 LINK, REVERSE LOCK ARM 1 Rp31.500
13 09282-39001-000 LINK, RELEASE 1 Rp53.000
14 09380-38003-000 RUBBER, RELEASE LEVER 1 Rp50.500
15 41225-94502-000 LEVER, RELEASE 1 Rp44.000
16 45231-92L00-000 WASHER (8.5X14X1.0) 1 Rp145.000
17 DISCONTINUE
SUB: 45241-94400-000		 PIN 1 -
18 45250-92L00-000
SUB: 45250-94400-000		 PIN (8X11) 1 Rp67.500
19 DISCONTINUE
SUB: 45255-93001-000		 PIN 2 -
20 DISCONTINUE
SUB: 45261-94400-000		 BUSH 2 -
21 09160-08091-000 SPRING 2 Rp11.000
22 DISCONTINUE
SUB: 09200-05015-000		 SPRING 1 -
23 DISCONTINUE
SUB: 09200-08043-000		 ATTACHMENT, STEERING BRACKET 1 -
24 09204-01002-000 BOLT (10X25) 2 Rp13.000
25 59315-94J00-000
SUB: 09306-22006-000		 LOCK WASHER (10.2X18.4X2.5) 2 Rp21.500
26 09443-15031-000 ADJUSTER, STEERING 1 Rp97.500
27 DISCONTINUE
SUB: 09448-29018-000		 COVER, STEERING ADJUSTER 1 -
28 43755-97E01-000 BOLT, STEERING ADJUSTER (8X35) 1 Rp484.000
29 09100-10316-000
SUB: 09100-10311-000		 WASHER (8.5X14X1.0) 1 Rp86.000
30 09162-10005-000 SPRING, STEERING ADJUSTER 1 Rp13.000
31 43411-97E00-000 SHALLOW WATER DRIVE ASSY 1 Rp65.000 OPT
32 43412-93901-000
SUB: 43412-93900-000		 ?STOPPER, SHALLOW WATER 1 Rp30.000 OPT
33 29101-93J00-000 ?BOLT (10X20.8) 2 Rp21.000 OPT
34 09160-08091-000 ?BOLT (6X16) 1 Rp11.000 OPT
35 29440-93J00-000 ?SPRING 1 Rp22.500 OPT
36 DISCONTINUE
SUB: 45255-95500-000		 ?KNOB, RELEASE LEVER 1 - OPT
37 45713-92L00-000 ?WASHER (5.5X12X0.8) 1 Rp29.000 OPT
38 09111-10067-000
SUB: 09111-10032-000		 ?PIN 1 Rp52.500 OPT
39 09117-06030-000 ?SPRING PIN (8X16) 1 Rp18.000 OPT
40 09160-05029-000 ?PIN, SHALLOW DRIVE 1 Rp14.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
