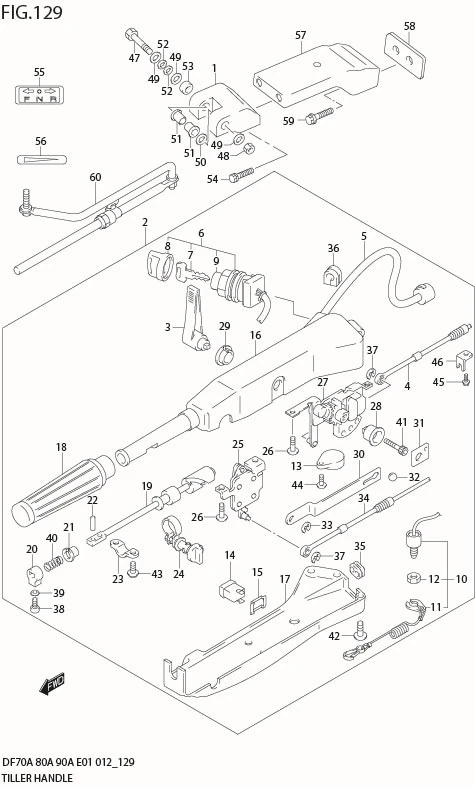

FIG 129 TILLER HANDLE (DF90ATH E40)

FIG 129 TILLER HANDLE (DF90ATH E40)
No No. Part Description Qty Price Per Pcs Remarks
1 43761-87J11-0EP BRACKET, TILLER HANDLE 1 Rp692.500
2 63110-87L02-0EP HANDLE ASSY, TILLER 1 -
3 21111-87J10-0EP ?LEVER, SHIFT 1 Rp858.000
4 23230-90J00-000 ?CABLE, SHIFT 1 Rp1.007.000
5 36620-99E10-000 ?WIRE ASSY, HANDLE 1 Rp793.500
6 37110-87J21-000
SUB: 37110-87J20-000		 ?SWITCH ASSY, IGNITION 1 Rp561.000
7-1 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 -
7-2 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 -
7-3 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 -
7-4 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 -
7-5 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 -
7-6 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 -
7-7 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 -
7-8 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 -
7-9 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 -
7-10 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 -
7-11 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 -
7-12 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 -
8 37143-99E00-000 ??CAP, KEY 1 Rp26.000
9 37149-93J00-000 ??CAP, CYLINDER BODY 1 Rp87.500
10 37820-87J04-000
SUB: 37820-87J02-000		 ?SWITCH ASSY, EMERGENCY 1 Rp567.000
11 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE, LOCK 1 Rp221.500
12 37826-92E00-000 ??NUT 1 Rp65.500
13 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 -
14 37850-87J00-000 ?SWITCH ASSY, TRIM 1 Rp632.500
15 37852-87J00-000 ?PLATE, PTT SWITCH 1 Rp112.000
16 63111-87J10-0EP ?HOUSING, TILLER HANDLE 1 Rp1.312.500
17 63121-87J03-000 ?COVER, LOWER 1 Rp243.500
18 63210-93E30-000 ?GRIP, HANDLE 1 Rp293.000
19 63221-87J00-000 ?SHAFT, THROTTLE 1 Rp545.000
20 63223-92D00-000 ?STOPPER, HANDLE ROD 1 Rp37.500
21 63225-93200-000 ?BUSH, HANDLE ROD 1 Rp37.000
22 63227-93200-000 ?PIN, HANDLE ROD 1 Rp21.000
23 63235-87J00-000 ?PLATE, THROTTLE SHAFT 1 Rp28.500
24 63240-87J00-000 ?ADJUSTER, THROTTLE 1 Rp111.000
25 63250-87J01-000 ?ARM ASSY, THROTTLE 1 Rp1.628.500
26 63251-87J00-000 ?BOLT, SHIFT GEAR ASSY 4 Rp27.000
27 63260-87J02-000 ?GEAR ASSY, SHIFT 1 Rp1.863.500
28 63261-87J00-000 ?BUSH, SHIFT GEAR 1 Rp97.000
29 63262-87J00-000 ?BUSH, SHIFT LEVER 1 Rp31.500
30 63271-87J00-000 ?PLATE, LOCK 1 Rp136.000
31 63272-87J00-000 ?PLATE, BALL GUIDE 1 Rp85.000
32 63273-87J00-000 ?BALL 1 Rp44.000
33 63274-87J00-000 ?E RING 1 Rp20.000
34 63610-87J00-000 ?CABLE, THROTTLE 1 Rp307.000
35 63625-99E00-000 ?GROMMET, THROTTLE CABLE 1 Rp45.000
36 63626-99E01-000 ?GROMMET, WIRE HARNESS 1 Rp61.000
37 67292-87J00-000 ?E RING 2 Rp20.500
38 09126-06015-000 ?SCREW (6X23) 1 Rp19.000
39 09163-06001-000 ?LOCK WASHER 1 Rp11.000
40 09440-12027-000 ?SPRING 1 Rp13.000
41 09106-08099-000 ?BOLT (8X50) 1 Rp25.500
42 DISCONTINUE
SUB: 09125-05047-000		 ?SCREW (5X14) 6 -
43 09136-05008-000 ?SCREW (5X12) 2 Rp23.500
44 02142-05207-000 ?SCREW 1 Rp9.000
45 63611-87J00-000 ?BOLT CLAMP BRACKET 2 Rp71.000
46 63612-87J00-000 ?BRACKET, CLAMP 2 Rp184.500
47 09100-10264-000 BOLT (10X80) 1 Rp92.000
48 09159-10050-000 NUT 1 Rp23.500
49 09160-10114-000 WASHER (10.5X22X1.5) 3 Rp20.000
50 09160-10508-000 WASHER (10.3X25X1.5) 1 Rp92.500
51 09306-10020-000 BUSH 2 Rp23.000
52 09164-10016-000 WASHER 2 Rp39.000
53 43768-90J01-000 SPACER, TILLER HANDLE 1 Rp305.500
54 09117-10058-000 BOLT (10X45) 2 Rp31.000
55 21131-96010-000 MARK, CLUTCH SHIFT 1 Rp12.000
56 63215-93110-000 MARK, HANDLE GRIP 1 Rp24.500
57 43755-87L12-0EP EXTENSION, STRG BRKT 1 Rp1.628.500
58 43776-87L00-000 SPACER, STRG BRKT 1 Rp1.722.500
59 09116-10150-000 BOLT (10X55) 2 Rp128.000
60 43770-99E03-000 ADJUSTER ASSY, STEERING 1 Rp3.821.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
