  5. FIG 74 TRANSMISSION

DF70A 80A 90A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF70A E01)FIG 4 RING GEAR COVER (DF70A E40)FIG 5 RING GEAR COVER (DF70ATH E01)FIG 6 RING GEAR COVER (DF70ATH E40)FIG 7 RING GEAR COVER (DF80A E01)FIG 8 RING GEAR COVER (DF80A E40)FIG 9 RING GEAR COVER (DF90A E01)FIG 10 RING GEAR COVER (DF90A E40)FIG 11 RING GEAR COVER (DF90ATH E01)FIG 12 RING GEAR COVER (DF90ATH E40)FIG 13 CRANKSHAFTFIG 14 TIMING CHAINFIG 15 CAMSHAFT (DF70A E01)FIG 16 CAMSHAFT (DF70A E40)FIG 17 CAMSHAFT (DF70ATH E01)FIG 18 CAMSHAFT (DF70ATH E40)FIG 19 CAMSHAFT (DF80A E01)FIG 20 CAMSHAFT (DF80A E40)FIG 21 CAMSHAFT (DF90A E01)FIG 22 CAMSHAFT (DF90A E40)FIG 23 CAMSHAFT (DF90ATH E01)FIG 24 CAMSHAFT (DF90ATH E40)FIG 25 INTAKE MANIFOLDFIG 26 SILENCERFIG 27 EXHAUST COVERFIG 28 FUEL VAPOR SEPARATOR (DF70A E01)FIG 29 FUEL VAPOR SEPARATOR (DF70A E40)FIG 30 FUEL VAPOR SEPARATOR (DF70ATH E01)FIG 31 FUEL VAPOR SEPARATOR (DF70ATH E40)FIG 32 FUEL VAPOR SEPARATOR (DF80A E01)FIG 33 FUEL VAPOR SEPARATOR (DF80A E40)FIG 34 FUEL VAPOR SEPARATOR (DF90A E01)FIG 35 FUEL VAPOR SEPARATOR (DF90A E40)FIG 36 FUEL VAPOR SEPARATOR (DF90ATH E01)FIG 37 FUEL VAPOR SEPARATOR (DF90ATH E40)FIG 38 FUEL INJECTOR (DF70A E01)FIG 39 FUEL INJECTOR (DF70A E40)FIG 40 FUEL INJECTOR (DF70ATH E01)FIG 41 FUEL INJECTOR (DF70ATH E40)FIG 42 FUEL INJECTOR (DF80A E01)FIG 43 FUEL INJECTOR (DF80A E40)FIG 44 FUEL INJECTOR (DF90A E01)FIG 45 FUEL INJECTOR (DF90A E40)FIG 46 FUEL INJECTOR (DF90ATH E01)FIG 47 FUEL INJECTOR (DF90ATH E40)FIG 48 FUEL PUMPFIG 49 WATER PUMP (DF70A E01)FIG 50 WATER PUMP (DF70A E40)FIG 51 WATER PUMP (DF70ATH E01)FIG 52 WATER PUMP (DF70ATH E40)FIG 53 WATER PUMP (DF80A E01)FIG 54 WATER PUMP (DF80A E40)FIG 55 WATER PUMP (DF90A E01)FIG 56 WATER PUMP (DF90A E40)FIG 57 WATER PUMP (DF90ATH E01)FIG 58 WATER PUMP (DF90ATH E40)FIG 59 THERMOSTATFIG 60 THROTTLE BODY (DF70A E01)FIG 61 THROTTLE BODY (DF70A E40)FIG 62 THROTTLE BODY (DF70ATH E01)FIG 63 THROTTLE BODY (DF70ATH E40)FIG 64 THROTTLE BODY (DF80A E01)FIG 65 THROTTLE BODY (DF80A E40)FIG 66 THROTTLE BODY (DF90A E01)FIG 67 THROTTLE BODY (DF90A E40)FIG 68 THROTTLE BODY (DF90ATH E01)FIG 69 THROTTLE BODY (DF90ATH E40)FIG 70 OIL PUMPFIG 71 OIL PANFIG 72 CLUTCH SHAFTFIG 73 CLUTCH RODFIG 74 TRANSMISSIONFIG 75 STARTING MOTORFIG 76 MAGNETOFIG 77 RECTIFIER / IGNITION COILFIG 78 SENSORFIG 79 HARNESS (DF70A E01)FIG 80 HARNESS (DF70A E40)FIG 81 HARNESS (DF70ATH E01)FIG 82 HARNESS (DF70ATH E40)FIG 83 HARNESS (DF80A E01)FIG 84 HARNESS (DF80A E40)FIG 85 HARNESS (DF90A E01)FIG 86 HARNESS (DF90A E40)FIG 87 HARNESS (DF90ATH E01)FIG 88 HARNESS (DF90ATH E40)FIG 89 PTT SWITCH / ENGINE CONTROL UNIT (DF70A E01)FIG 90 PTT SWITCH / ENGINE CONTROL UNIT (DF70A E40)FIG 91 PTT SWITCH / ENGINE CONTROL UNIT (DF70ATH E01)FIG 92 PTT SWITCH / ENGINE CONTROL UNIT (DF70ATH E40)FIG 93 PTT SWITCH / ENGINE CONTROL UNIT (DF80A E01)FIG 94 PTT SWITCH / ENGINE CONTROL UNIT (DF80A E40)FIG 95 PTT SWITCH / ENGINE CONTROL UNIT (DF90A E01)FIG 96 PTT SWITCH / ENGINE CONTROL UNIT (DF90A E40)FIG 97 PTT SWITCH / ENGINE CONTROL UNIT (DF90ATH E01)FIG 98 PTT SWITCH / ENGINE CONTROL UNIT (DF90ATH E40)FIG 99 CLAMP BRACKETFIG 100 SWIVEL BRACKET (DF70A E01)FIG 101 SWIVEL BRACKET (DF70A E40)FIG 102 SWIVEL BRACKET (DF70ATH E01)FIG 103 SWIVEL BRACKET (DF70ATH E40)FIG 104 SWIVEL BRACKET (DF80A E01)FIG 105 SWIVEL BRACKET (DF80A E40)FIG 106 SWIVEL BRACKET (DF90A E01)FIG 107 SWIVEL BRACKET (DF90A E40)FIG 108 SWIVEL BRACKET (DF90ATH E01)FIG 109 SWIVEL BRACKET (DF90ATH E40)FIG 110 TRIM CYLINDERFIG 111 PTT MOTORFIG 112 ENGINE HOLDERFIG 113 DRIVE SHAFT HOUSINGFIG 114 GEAR CASEFIG 115 SIDE COVERFIG 116 ENGINE COVER (DF70A E01)FIG 117 ENGINE COVER (DF70A E40)FIG 118 ENGINE COVER (DF70ATH E01)FIG 119 ENGINE COVER (DF70ATH E40)FIG 120 ENGINE COVER (DF80A E01)FIG 121 ENGINE COVER (DF80A E40)FIG 122 ENGINE COVER (DF90A E01)FIG 123 ENGINE COVER (DF90A E40)FIG 124 ENGINE COVER (DF90ATH E01)FIG 125 ENGINE COVER (DF90ATH E40)FIG 126 TILLER HANDLE (DF70ATH E01)FIG 127 TILLER HANDLE (DF70ATH E40)FIG 128 TILLER HANDLE (DF90ATH E01)FIG 129 TILLER HANDLE (DF90ATH E40)FIG 130 FUEL TANK (PLASTIC)FIG 131 DRAG LINK (DF70A E01)FIG 132 DRAG LINK (DF70A E40)FIG 133 DRAG LINK (DF70ATH E01)FIG 134 DRAG LINK (DF70ATH E40)FIG 135 DRAG LINK (DF80A E01)FIG 136 DRAG LINK (DF80A E40)FIG 137 DRAG LINK (DF90A E01)FIG 138 DRAG LINK (DF90A E40)FIG 139 DRAG LINK (DF90ATH E01)FIG 140 DRAG LINK (DF90ATH E40)FIG 141 METER (DF70A E01)FIG 142 METER (DF70A E40)FIG 143 METER (DF80A E01)FIG 144 METER (DF80A E40)FIG 145 METER (DF90A E01)FIG 146 METER (DF90A E40)FIG 147 OPT:METER (1)FIG 148 OPT:METER (2) (DF70A E01)FIG 149 OPT:METER (2) (DF70A E40)FIG 150 OPT:METER (2) (DF70ATH E01)FIG 151 OPT:METER (2) (DF70ATH E40)FIG 152 OPT:METER (2) (DF80A E01)FIG 153 OPT:METER (2) (DF80A E40)FIG 154 OPT:METER (2) (DF90A E01)FIG 155 OPT:METER (2) (DF90A E40)FIG 156 OPT:METER (2) (DF90ATH E01)FIG 157 OPT:METER (2) (DF90ATH E40)FIG 158 OPT:WATER PRESSURE GAUGE SUB KIT (DF70A E01)FIG 159 OPT:WATER PRESSURE GAUGE SUB KIT (DF70A E40)FIG 160 OPT:WATER PRESSURE GAUGE SUB KIT (DF70ATH E01)FIG 161 OPT:WATER PRESSURE GAUGE SUB KIT (DF70ATH E40)FIG 162 OPT:WATER PRESSURE GAUGE SUB KIT (DF80A E01)FIG 163 OPT:WATER PRESSURE GAUGE SUB KIT (DF80A E40)FIG 164 OPT:WATER PRESSURE GAUGE SUB KIT (DF90A E01)FIG 165 OPT:WATER PRESSURE GAUGE SUB KIT (DF90A E40)FIG 166 OPT:WATER PRESSURE GAUGE SUB KIT (DF90ATH E01)FIG 167 OPT:WATER PRESSURE GAUGE SUB KIT (DF90ATH E40)FIG 168 OPT:REMOTE CONTROLFIG 169 OPT:HARNESS (DF70A E01)FIG 170 OPT:HARNESS (DF70A E40)FIG 171 OPT:HARNESS (DF70ATH E01)FIG 172 OPT:HARNESS (DF70ATH E40)FIG 173 OPT:HARNESS (DF80A E01)FIG 174 OPT:HARNESS (DF80A E40)FIG 175 OPT:HARNESS (DF90A E01)FIG 176 OPT:HARNESS (DF90A E40)FIG 177 OPT:HARNESS (DF90ATH E01)FIG 178 OPT:HARNESS (DF90ATH E40)FIG 179 OPT:SWITCH (DF70A E01)FIG 180 OPT:SWITCH (DF70A E40)FIG 181 OPT:SWITCH (DF80A E01)FIG 182 OPT:SWITCH (DF80A E40)FIG 183 OPT:SWITCH (DF90A E01)FIG 184 OPT:SWITCH (DF90A E40)FIG 185 OPT:TILLER HANDLE (DF70A E01)FIG 186 OPT:TILLER HANDLE (DF70A E40)FIG 187 OPT:TILLER HANDLE (DF80A E01)FIG 188 OPT:TILLER HANDLE (DF80A E40)FIG 189 OPT:TILLER HANDLE (DF90A E01)FIG 190 OPT:TILLER HANDLE (DF90A E40)FIG 191 OPT:GASKET SET (DF70A E01)FIG 192 OPT:GASKET SET (DF70A E40)FIG 193 OPT:GASKET SET (DF70ATH E01)FIG 194 OPT:GASKET SET (DF70ATH E40)FIG 195 OPT:GASKET SET (DF80A E01)FIG 196 OPT:GASKET SET (DF80A E40)FIG 197 OPT:GASKET SET (DF90A E01)FIG 198 OPT:GASKET SET (DF90A E40)FIG 199 OPT:GASKET SET (DF90ATH E01)FIG 200 OPT:GASKET SET (DF90ATH E40)FIG 201 OPT:REMOTE CONTROL SPACER

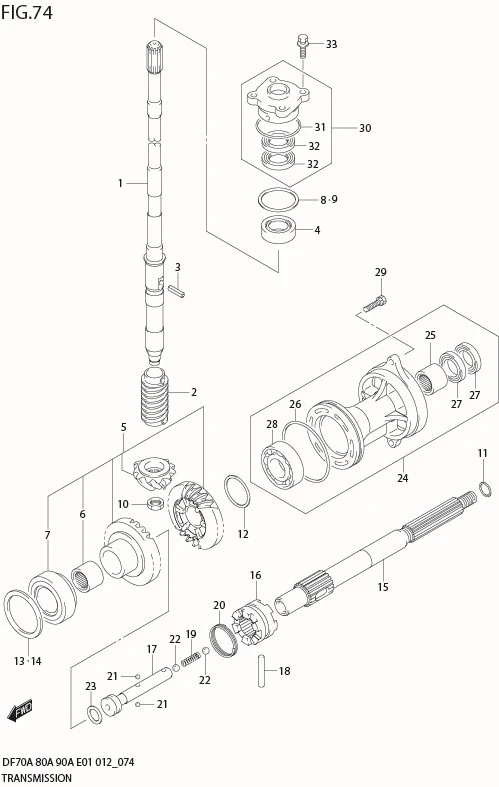

FIG 74 TRANSMISSION

FIG 74 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1-2 57110-87L12-000
SUB: 57110-87L11-000		 SHAFT ASSY, DRIVE (X) 1 Rp7.705.000 TRANSOM(X)
1-1 57110-87L02-000
SUB: 57110-87L01-000		 SHAFT ASSY, DRIVE (L) 1 Rp6.262.000 TRANSOM(L)
2 57133-87L01-000
SUB: 57133-87L00-000		 COLLAR, DRIVE SHAFT 1 Rp132.000
3 09205-05011-000 SPRING 1 Rp13.000
4 09265-25046-000
SUB: 09265-25040-000		 BEARING (25X52X29.25) 1 Rp663.500
5 57300-87860-000 PINION/GEAR SET 1 Rp10.118.500
6 09263-25067-000 ?BEARING (25X32X26) 1 Rp198.500
7 09265-40003-000 ?BEARING (40X75X26) 1 Rp1.260.500
8 57500-87873-000 SHIM SET, DRIVE SHAFT 1 Rp495.500
9-11 09181-40195-000 ?SHIM (40X52X1) 1 Rp35.000
9-14 09181-41014-000 ?SHIM (41X52X1.15) 1 Rp44.000
9-13 09181-41013-000 ?SHIM (41X52X1.1) 1 Rp44.000
9-12 09181-41012-000 ?SHIM (41X52X1.05) 1 Rp44.000
9-10 09181-41010-000 ?SHIM (41X52X0.95) 1 Rp44.000
9-9 09181-41009-000 ?SHIM (41X52X0.9) 1 Rp44.000
9-8 09181-41008-000 ?SHIM (41X52X0.85) 1 Rp44.000
9-6 09181-41006-000 ?SHIM (41X52X0.75) 1 Rp44.000
9-5 09181-41005-000 ?SHIM (41X52X0.7) 1 Rp44.000
9-1 09181-40186-000 ?SHIM (41X52X0.5) 1 Rp32.000
9-4 09181-41004-000 ?SHIM (41X52X0.65) 1 Rp44.000
9-3 DISCONTINUE
SUB: 09181-41003-000		 ?SHIM (41X52X0.6) 1 -
9-2 DISCONTINUE
SUB: 09181-41002-000		 ?SHIM (41X52X0.55) 1 -
9-7 DISCONTINUE
SUB: 09181-40190-000		 ?SHIM (40X52X0.8) 1 -
10 09140-14024-000 NUT 1 Rp23.000
11-4 09181-25149-000 SHIM (25X32X1.21) 1 Rp18.000 PROP SHAFT REV THRUST
11-9 09181-25075-000 WASHER (25X32X1.7) 1 Rp28.500 PROP SHAFT REV THRUST
11-8 09181-25074-000 WASHER (25X32X1.6) 1 Rp28.500 PROP SHAFT REV THRUST
11-7 09181-25073-000 WASHER (25X32X1.5) 1 Rp28.500 PROP SHAFT REV THRUST
11-6 09181-25072-000 WASHER (25X32X1.4) 1 Rp28.500 PROP SHAFT REV THRUST
11-5 DISCONTINUE
SUB: 09181-25153-000		 SHIM (25X32X1.3) 1 - PROP SHAFT REV THRUST
11-3 09181-25143-000 SHIM (25X32X1.09) 1 Rp18.000 PROP SHAFT REV THRUST
11-2 DISCONTINUE
SUB: 09181-25139-000		 SHIM (25X32X1) 1 - PROP SHAFT REV THRUST
11-1 09181-25130-000 SHIM (25X32X0.5) 1 Rp18.000 PROP SHAFT REV THRUST
12-11 DISCONTINUE
SUB: 09181-40013-000		 SHIM (40X46.8X1.05) 1 - REV GEAR
12-10 DISCONTINUE
SUB: 09181-40012-000		 SHIM (40X46.8X1) 1 - REV GEAR
12-9 DISCONTINUE
SUB: 09181-40011-000		 SHIM (40X46.8X0.95) 1 - REV GEAR
12-8 DISCONTINUE
SUB: 09181-40010-000		 SHIM (40X46.8X0.9) 1 - REV GEAR
12-5 DISCONTINUE
SUB: 09181-40007-000		 SHIM (40X46.8X0.75) 1 - REV GEAR
12-7 DISCONTINUE
SUB: 09181-40009-000		 SHIM (40X46.8X085) 1 - REV GEAR
12-4 DISCONTINUE
SUB: 09181-40006-000		 SHIM (40X46.8X0.7) 1 - REV GEAR
12-6 DISCONTINUE
SUB: 09181-40008-000		 SHIM (40X46.8X0.8) 1 - REV GEAR
12-1 09181-40018-000 SHIM (40X46.8X0.55) 1 Rp20.000 REV GEAR
12-2 DISCONTINUE
SUB: 09181-40004-000		 SHIM (40X46.8X0.6) 1 - REV GEAR
12-3 DISCONTINUE
SUB: 09181-40005-000		 SHIM (40X46.8X0.65) 1 - REV GEAR
13 57500-87882-000 SHIM SET, FORWARD GEAR 1 Rp495.000 FWD GEAR
14-1 09181-64002-000 ?SHIM (64X75X0.55) 1 Rp55.000 FWD GEAR
14-2 09181-64003-000 ?SHIM (64X75X0.6) 1 Rp55.000 FWD GEAR
14-3 09181-64004-000 ?SHIM (64X75X0.65) 1 Rp55.000 FWD GEAR
14-4 09181-64005-000 ?SHIM (64X75X0.7) 1 Rp55.000 FWD GEAR
14-5 09181-64006-000 ?SHIM (64X75X0.75) 1 Rp55.000 FWD GEAR
14-6 09181-64007-000 ?SHIM (64X75X0.8) 1 Rp55.000 FWD GEAR
14-7 09181-64008-000 ?SHIM (64X75X0.85) 1 Rp55.000 FWD GEAR
14-8 09181-64009-000 ?SHIM (64X75X0.9) 1 Rp55.000 FWD GEAR
14-9 09181-64010-000 ?SHIM (64X75X0.95) 1 Rp55.000 FWD GEAR
14-10 09181-64011-000 ?SHIM (64X75X1) 1 Rp65.500 FWD GEAR
15 57610-87L00-000 SHAFT, PROPELLER 1 Rp3.630.000
16 57621-87L10-000
SUB: 57621-87L00-000		 SHIFTER, CLUTCH DOG 1 Rp1.171.500
17 57631-87L00-000 PIN, CONNECTOR 1 Rp491.000
18 09202-07003-000 PIN 1 Rp51.000
19 09440-09043-000 SPRING 1 Rp26.000
20 09440-42002-000 SPRING 1 Rp27.000
21 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
22 06111-11004-000 BALL 2 Rp12.500
23 09181-25030-000 SHIM (25X32X3) 1 Rp38.000
24 56120-87L30-0EP HOUSING, PROP SHAFT BRG 1 Rp3.437.500
25 09263-25067-000 ?BEARING (25X32X26) 1 Rp198.500
26 09280-92004-000 ?O RING (D:3.1 ID:89.4) 1 Rp77.000
27 09282-25001-000 ?OIL SEAL (25X38X8) 2 Rp50.000
28 08113-60087-000 ?BEARING 1 Rp297.500
29 09117-08047-000 BOLT (8X30) 2 Rp44.500
30 56130-87L01-000
SUB: 56130-87L00-000		 HOUSING, DRIVE SHAFT OIL SEAL 1 Rp922.500
31 09280-46004-000 ?O RING (D:3.5,ID:45.7) 1 Rp21.000
32 09282-22007-000 ?OIL SEAL (22X36X6) 2 Rp79.000
33 09117-08110-000
SUB: 09117-08057-000		 BOLT (8X25) 4 Rp33.000
