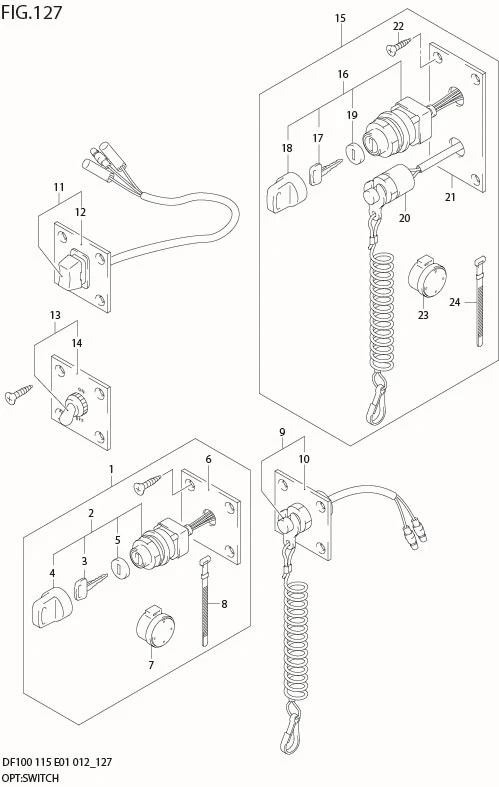

FIG 127 OPT:SWITCH (DF115T E40)

No	No. Part	Description	Qty	Price Per Pcs
1	37100-96J01-000 SUB: 37100-96J00-000	PANEL ASSY, IGNITION SW	1	Rp1.589.000
2	37110-93J02-000 SUB: 37110-93J01-000	.SWITCH ASSY, IGNITION	1	Rp1.295.500
3-2	DISCONTINUE SUB: 37141-99E10-000	..KEY (932)	2	-
3-12	DISCONTINUE SUB: 37141-99EB0-000	..KEY (942)	2	-
3-11	DISCONTINUE SUB: 37141-99EA0-000	..KEY (941)	2	-
3-10	DISCONTINUE SUB: 37141-99E90-000	..KEY (940)	2	-
3-9	DISCONTINUE SUB: 37141-99E80-000	..KEY (939)	2	-
3-8	DISCONTINUE SUB: 37141-99E70-000	..KEY (938)	2	-
3-7	DISCONTINUE SUB: 37141-99E60-000	..KEY (937)	2	-
3-6	DISCONTINUE SUB: 37141-99E50-000	..KEY (936)	2	-
3-5	DISCONTINUE SUB: 37141-99E40-000	..KEY (935)	2	-
3-4	DISCONTINUE SUB: 37141-99E30-000	..KEY (934)	2	-
3-3	DISCONTINUE SUB: 37141-99E20-000	..KEY (933)	2	-
3-1	DISCONTINUE SUB: 37141-99E00-000	..KEY (931)	2	-
4	37143-99E00-000	..CAP, KEY	1	Rp26.000
5	37149-93J00-000	..CAP, CYLINDER BODY	1	Rp87.500
6	37139-99E00-000	.PANEL, IGNITION SW	1	Rp316.500
7	38500-93J90-000	.BUZZER ASSY, WARNING	1	Rp297.000
8	DISCONTINUE SUB: 09407-08401-000	.CLAMP (L:80)	1	-
9	37803-93J06-000 SUB: 37803-93J03-000	PANEL ASSY, EMERGENCY SW	1	Rp578.000
10	DISCONTINUE SUB: 37825-99E00-000	.PANEL, EMERGENCY SW	1	-
11	DISCONTINUE SUB: 37805-93J00-000	PANEL ASSY, PTT SW	1	-
12	37855-99E00-000	.PANEL, PTT SW	1	Rp469.500
13	37210-93J00-000	PANEL ASSY, LIGHTING SW	1	Rp758.000
14	37212-93J00-000	.PANEL, LIGHTING SW	1	Rp316.500
15	37100-96J27-000 SUB: 37100-96J23-000	PANEL ASSY, ENGINE SW	1	Rp1.843.500
16	37110-93J02-000 SUB: 37110-93J01-000	.SWITCH ASSY, IGNITION	1	Rp1.295.500
17-9	DISCONTINUE SUB: 37141-99E80-000	..KEY (939)	2	-
17-12	DISCONTINUE SUB: 37141-99EB0-000	..KEY (942)	2	-
17-11	DISCONTINUE SUB: 37141-99EA0-000	..KEY (941)	2	-
17-10	DISCONTINUE SUB: 37141-99E90-000	..KEY (940)	2	-
17-8	DISCONTINUE SUB: 37141-99E70-000	..KEY (938)	2	-
17-7	DISCONTINUE SUB: 37141-99E60-000	..KEY (937)	2	-
17-6	DISCONTINUE SUB: 37141-99E50-000	..KEY (936)	2	-
17-5	DISCONTINUE SUB: 37141-99E40-000	..KEY (935)	2	-
17-4	DISCONTINUE SUB: 37141-99E30-000	..KEY (934)	2	-
17-3	DISCONTINUE SUB: 37141-99E20-000	..KEY (933)	2	-
17-2	DISCONTINUE SUB: 37141-99E10-000	..KEY (932)	2	-
17-1	DISCONTINUE SUB: 37141-99E00-000	..KEY (931)	2	-
18	37143-99E00-000	..CAP, KEY	1	Rp26.000
19	37149-93J00-000	..CAP, CYLINDER BODY	1	Rp87.500
20	37820-93J05-000 SUB: 37820-93J03-000	.SWITCH ASSY, EMERGENCY	1	Rp520.000
21	37139-99E20-000	.PANEL	1	Rp605.000
22	03121-0516A-000	.SCREW	4	Rp11.500
23	38500-93J90-000	.BUZZER ASSY, WARNING	1	Rp297.000
24	DISCONTINUE SUB: 09407-08401-000	.CLAMP (L:80)	1	-
