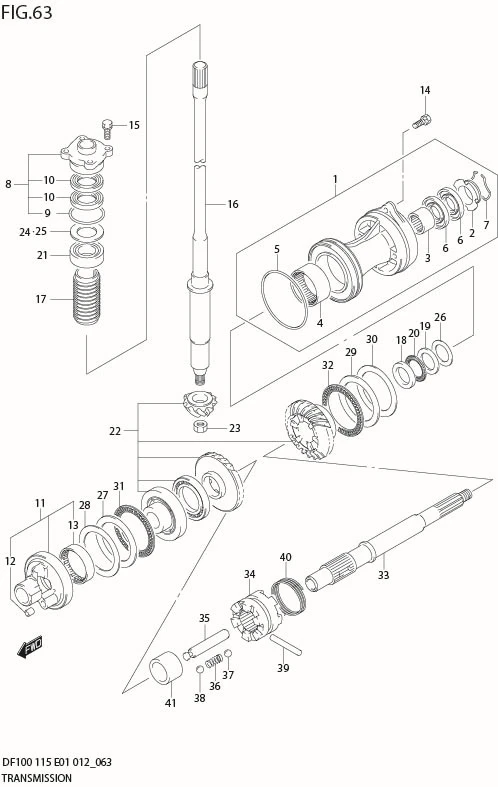

FIG 63 TRANSMISSION (DF115Z E1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56120-92J12-0EP	HOUSING, PROP SFT BRG (BLACK)	1	Rp6.280.500
2	56123-92J00-000	.WASHER, OIL SEAL PROTECTOR	1	Rp54.500
3	09263-30051-000	.BEARING (30X37X26)	1	Rp269.500
4	09263-50001-000	.BEARING (50X62X25)	1	Rp466.000
5	09280-97001-000	.O RING (D:3.5,ID:95)	1	Rp28.000
6	09282-30007-000	.OIL SEAL (30X50X6)	2	Rp63.000
7	DISCONTINUE SUB: 09387-52001-000	.CIRCLIP	1	-
8	56130-90J00-000	HOUSING, DRIVE SHAFT BRG	1	Rp657.500
9	09280-46004-000	.O RING (D:3.5,ID:45.7)	1	Rp21.000
10	09282-24004-000	.OIL SEAL (24X40X7)	2	Rp43.000
11	56140-92J40-000 SUB: 56140-92J30-000	HOUSING, REV GEAR BRG	1	Rp1.595.500
12	09206-09012-000	.PIN	1	Rp22.000
13	09263-45004-000	.BEARING (45X52X16)	1	Rp286.500
14	09117-08047-000	BOLT (8X30)	2	Rp44.500
15	09117-08110-000 SUB: 09117-08057-000	BOLT (8X25)	4	Rp33.000
16-2	57110-92J70-000	SHAFT, DRIVE (X)	1	Rp6.665.500	TRANSOM(X)
16-1	57110-92J60-000	SHAFT, DRIVE (L)	1	Rp4.259.500	TRANSOM(L)
17	57133-90J02-000 SUB: 57133-90J01-000	COLLAR, DRIVE SHAFT	1	Rp153.000
18	09160-30055-000	WASHER (30X47X6)	1	Rp789.500	PROP SAFT REV
19	09160-30056-000	WASHER (32X47X3)	1	Rp244.500	PROP SAFT REV
20	09269-30014-000	BEARING (30X47X2)	1	Rp105.500	PROP SAFT REV
21	09265-25046-000 SUB: 09265-25040-000	BEARING (25X52X29.25)	1	Rp663.500
22	57300-92850-000	PINION/GEAR SET	1	Rp10.461.500
23	09140-14024-000	NUT	1	Rp23.000
24	57500-87873-000	SHIM SET, DRIVE SHAFT	1	Rp495.500
25-14	09181-41014-000	.SHIM (41X52X1.15)	1	Rp44.000
25-13	09181-41013-000	.SHIM (41X52X1.1)	1	Rp44.000
25-12	09181-41012-000	.SHIM (41X52X1.05)	1	Rp44.000
25-11	09181-40195-000	.SHIM (40X52X1)	1	Rp35.000
25-10	09181-41010-000	.SHIM (41X52X0.95)	1	Rp44.000
25-9	09181-41009-000	.SHIM (41X52X0.9)	1	Rp44.000
25-8	09181-41008-000	.SHIM (41X52X0.85)	1	Rp44.000
25-6	09181-41006-000	.SHIM (41X52X0.75)	1	Rp44.000
25-5	09181-41005-000	.SHIM (41X52X0.7)	1	Rp44.000
25-4	09181-41004-000	.SHIM (41X52X0.65)	1	Rp44.000
25-3	DISCONTINUE SUB: 09181-41003-000	.SHIM (41X52X0.6)	1	-
25-2	DISCONTINUE SUB: 09181-41002-000	.SHIM (41X52X0.55)	1	-
25-1	09181-40186-000	.SHIM (41X52X0.5)	1	Rp32.000
25-7	DISCONTINUE SUB: 09181-40190-000	.SHIM (40X52X0.8)	1	-
26-4	09160M35006-000 SUB: 09160-35006-000	WASHER (35X46X0.9)	1	Rp8.500
26-9	09160M35010-000 SUB: 09160-35010-000	WASHER (35X46X1.15)	1	Rp9.500
26-8	09160M35003-000 SUB: 09160-35003-000	WASHER (35X46X1.1)	1	Rp9.000
26-7	09160M35009-000 SUB: 09160-35009-000	WASHER (35X46X1.05)	1	Rp14.000
26-6	09160M35002-000 SUB: 09160-35002-000	WASHER (35X46X1)	1	Rp9.500
26-5	09160M35008-000 SUB: 09160-35008-000	WASHER (35X46X0.95)	1	Rp14.500
26-3	DISCONTINUE SUB: 09160B35013N000	WASHER (35X46X0.8)	1	-
26-2	09160-35014-000	WASHER (35X46X0.7)	1	Rp44.500
26-1	09160M35015-000 SUB: 09160-35015-000	WASHER (35X46X0.6)	1	Rp6.500	PROP SAFT REV
27	09160-60011-000	WASHER (60X85X3)	1	Rp468.000	REV GEAR
28-6	09160-60006-000	WASHER (60X85X1.3)	1	Rp128.500
28-7	09160-60007-000	WASHER (60X85X1.4)	1	Rp128.500
28-5	09160-60005-000	WASHER (60X85X1.2)	1	Rp128.500
28-3	09160-60003-000	WASHER (60X85X1)	1	Rp128.500
28-2	09160-60009-000	WASHER (60X85X0.9)	1	Rp94.500
28-1	09160-60008-000	WASHER (60X85X0.8)	1	Rp112.000
28-4	09160-60004-000	WASHER (60X85X1.1)	1	Rp128.500
29	09160-70005-000	WASHER (70X95X2)	1	Rp356.500
30-8	09181-70012-000	SHIM (70X95X0.95)	1	Rp125.000
30-9	DISCONTINUE SUB: 09181-70004-000	SHIM (70X95X1)	1	-
30-7	DISCONTINUE SUB: 09181-70003-000	SHIM (70X95X0.9)	1	-
30-6	09181-70011-000	SHIM (70X95X0.85)	1	Rp78.000
30-5	DISCONTINUE SUB: 09181-70002-000	SHIM (70X95X0.8)	1	-
30-4	DISCONTINUE SUB: 09181-70010-000	SHIM (70X95X0.75)	1	-
30-3	DISCONTINUE SUB: 09181-70001-000	SHIM (70X95X0.7)	1	-
30-2	DISCONTINUE SUB: 09181-70009-000	SHIM (70X95X0.65)	1	-
30-1	DISCONTINUE SUB: 09181-70006-000	SHIM (70X95X0.6)	1	-
31	09269-60001-000	BEARING (60X85X3)	1	Rp331.000	REV
32	09269-70001-000	BEARING (70X95X4)	1	Rp535.500	FWD
33	57610-92J31-000	SHAFT, PROPELLER	1	Rp4.582.500
34	57621-92J20-000 SUB: 57621-92J10-000	SHIFTER, CLUTCH DOG	1	Rp1.162.000
35	57631-92J10-000 SUB: 57631-92J00-000	PIN, CONNECTOR	1	Rp365.500
36	09440-09040-000	SPRING	1	Rp26.500
37	06111M07004-000 SUB: 06111-07004-000	BALL	2	Rp3.000	NO.1
38	06111-11004-000	BALL	2	Rp12.500	NO.2
39	09202-07002-000	PIN	1	Rp35.000
40	09440-49004-000	SPRING	1	Rp21.500
41	57616-92J00-000	SPACER, CLUTCH DOG FWD	1	Rp456.500
