XL7

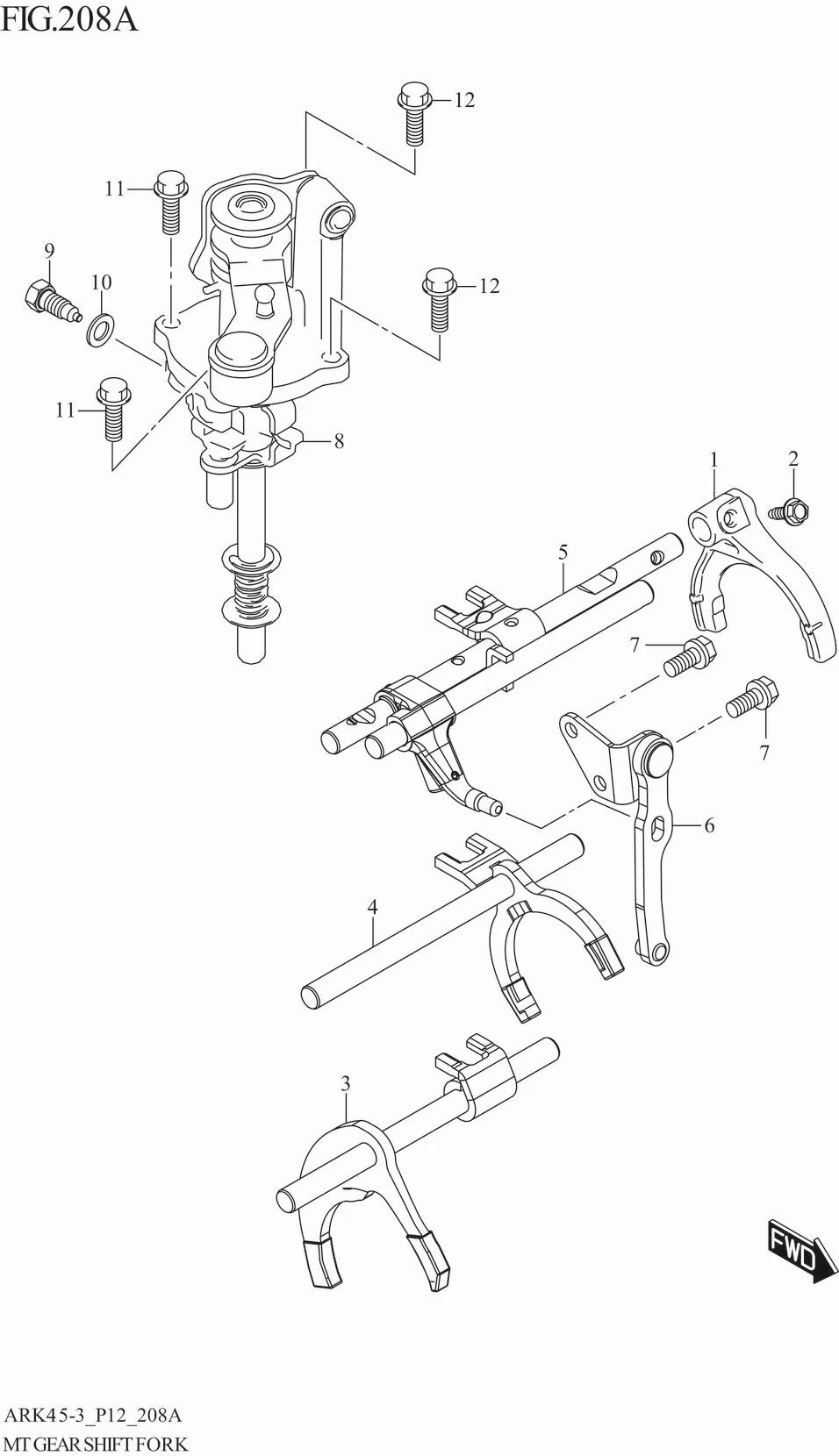

FIG. 208A MT GEAR SHIFT FORK (5MT)

FIG. 208A MT GEAR SHIFT FORK (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 25231-60MA0-000 FORK,5TH GEAR SHIFT 1 Rp647.500
2 25291-70C00-000 BOLT,LOW&HIGH SPEED FORK 1 Rp19.500
3 25401-73RA0-000 SHAFT,LOW SPEED GEAR SHF 1 Rp172.000
4 25402-73RA0-000 SHAFT,HIGH SPEED GEAR SHF 1 Rp146.000
5 25403-71L01-000 SHAFT,5TH&REV GR SHF 1 Rp1.404.000
6 25460-70C00-000 LEVER,REV GR SHF 1 Rp200.000
7 01570-0820B-000 BOLT 2 Rp31.000
8 25010M72R00-000 SHAFT ASSY, GEAR SHF & SELECT 1 Rp1.217.000
9 25321-74PE0-000 BOLT,GEAR SHF INTERLOCK 1 Rp47.000
10 08322-0110B-000
SUB: 08322B0110BN000
WASHER 1 Rp4.500
11 01550-0825A-000 BOLT (8X25) 2 Rp3.500
12 09103-08419-000 BOLT (8X25) 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
