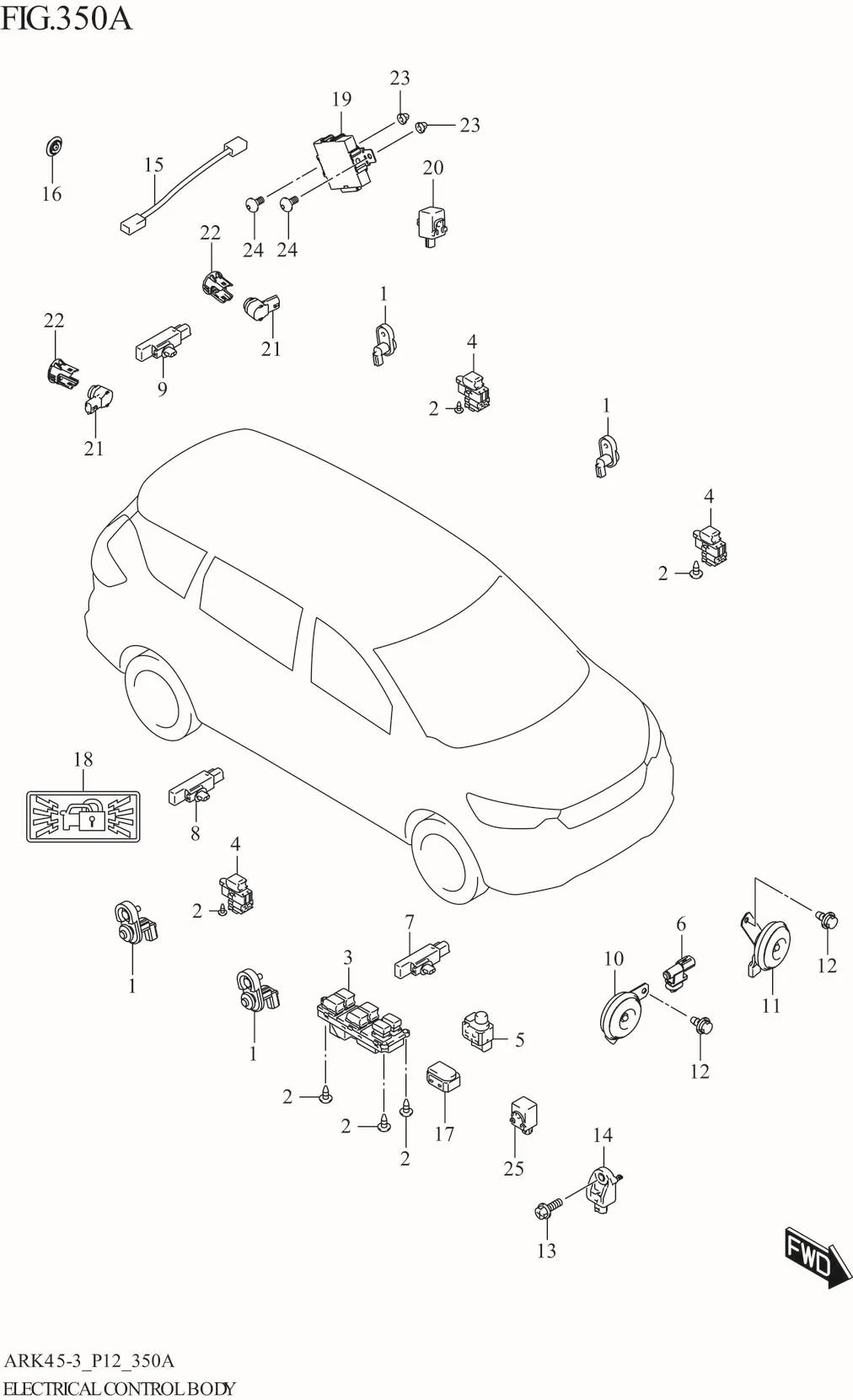

FIG. 350A ELECTRICAL CONTROL BODY

No	No. Part	Description	Qty	Price Per Pcs
1	37670M56R00-000	SWITCH ASSY,DOOR	4	Rp54.000
2	03541-0410A-000	SCREW	6	Rp11.000
3	37990-73RA2-000 SUB: 37990-73RA0-000	SWITCH ASSY,POWER WINDOW MA	1	Rp601.000
4	37995M79M02-000 SUB: 37995M79M00-000	SWITCH ASSY,POWER WINDOW SUB	3	Rp109.500
5-1	37950-62J21-000	SWITCH ASSY,MIRROR	1	Rp278.500
5-2	37950-62J31-000	SWITCH ASSY,MIRROR	1	Rp463.500
6	95643-74P00-000	SENSOR,OUTSIDE AIR TEMP	1	Rp280.000
7	37175-73R00-000	ANTENNA ASSY,KLS	1	Rp65.500
8	37175-73R00-000	ANTENNA ASSY,KLS	1	Rp65.500
9	37175-73R00-000	ANTENNA ASSY,KLS	1	Rp65.500
10-2	38500-73RA0-000	HORN ASSY,LOW PITCHED	1	Rp110.500
11-1	38500-73RB0-000	HORN ASSY,HIGH PITCHED	1	Rp109.000
12	09115-08001-000	BOLT (8X18)	2	Rp21.500
13	02162-0620A-000	SCREW	1	Rp5.500
14	38930-73R00-000	SENSOR ASSY,FORWARD RIGHT	1	Rp137.500
15	37177M66R10-000	SWITCH ASSY,BACK DOOR KLS	1	Rp184.000
16	09250-16015-000 SUB: 09250B16015N000	PLUG (OD:24.5)	1	Rp3.500
18	36771-79M01-000	LABEL,SECURITY ALARM	1	Rp5.000
19	37730-73R00-000	CONTROLLER ASSY,PARK SNSR	1	Rp371.500
20	37734M56R00-000	BUZZER,PARK SNSR	1	Rp93.500
21-2	37735-73R00-Z2S	SENSOR ASSY,PARK (SILVER)	2	Rp192.500
21-3	37735-73R00-ZYZ	SENSOR ASSY,PARK (GRAY)	2	Rp197.500
21-4	37735-73R00-ZBD	SENSOR ASSY,PARK (BLACK)	2	Rp192.500
21-5	37735-73R00-ZKB	SENSOR ASSY,PARK (RED)	2	Rp197.500
21-6	37735-73R00-ZLL	SENSOR ASSY,PARK (RED)	2	Rp197.500
21-7	37735-73R00-ZZY	SENSOR ASSY,PARK (ORANGE)	2	Rp197.500
21-8	37735-73R00-WAE	SENSOR ASSY,PARK (KHAKI)	2	Rp197.500
21-1	37735-73R00-ZQZ	SENSOR ASSY,PARK (WHITE)	2	Rp192.500
22-2	37737-73R00-Z2S	BEZEL,PARK SNSR (SILVER)	2	Rp76.500
22-8	37737-73R00-WAE	BEZEL,PARK SNSR (KHAKI)	2	Rp78.000
22-7	37737-73R00-ZZY	BEZEL,PARK SNSR (ORANGE)	2	Rp78.000
22-6	37737-73R00-ZLL	BEZEL,PARK SNSR (RED)	2	Rp78.000
22-5	37737-73R00-ZKB	BEZEL,PARK SNSR (RED)	2	Rp78.000
22-4	37737-73R00-ZBD	BEZEL,PARK SNSR (BLACK)	2	Rp76.500
22-3	37737-73R00-ZYZ	BEZEL,PARK SNSR (GRAY)	2	Rp76.500
22-1	37737-73R00-ZQZ	BEZEL,PARK SNSR (WHITE)	2	Rp76.500
23	71851M70F00-000	NUT	2	Rp4.000
24	03141M0612A-000	SCREW	2	Rp4.500
25	38590-72M00-000	BUZZER ASSY,KLS	1	Rp441.500
