SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.22 EMISSION CONTROLFIG.23 LABELFIG.24 MT CLUTCH (5MT)FIG.25 MT TRANSMISSION GEAR (5MT)FIG.26 MT TRANSMISSION CASE (5MT)FIG.27 MT GEARSHIFT FORK (5MT)FIG.28 AT TRANSMISSION ASSY (6AT)FIG.29 AT OIL PUMP (6AT)FIG.30 AT INPUT SHAFT (6AT)FIG.31 AT DIRECT CLUTCH (6AT)FIG.32 AT PLANETARY GEAR (6AT)FIG.33 AT REDUCTION GEAR (6AT)FIG.34 AT FORWARD CLUTCH (6AT)FIG.35 AT 2ND BRAKE (6AT)FIG.36 AT IST/REVERSE BRAKE (6AT)FIG.37 AT TRANSMISSION CASE (6AT)FIG.38 AT OIL PAN (6AT)FIG.39 AT VALVE (6AT)FIG.40 AT PARKING LOCK (6AT)FIG.41 AT OIL HOSE (6AT)FIG.42 GEAR SHIFT CONTROL (5MT)FIG.43 GEAR SHIFT CONTROL (6AT)FIG.44 SELECT LEVER (6AT)FIG.45 FRONT DIFFERENTIAL GEAR (5MT)FIG.46 FRONT DIFFERENTIAL GEAR (6AT)

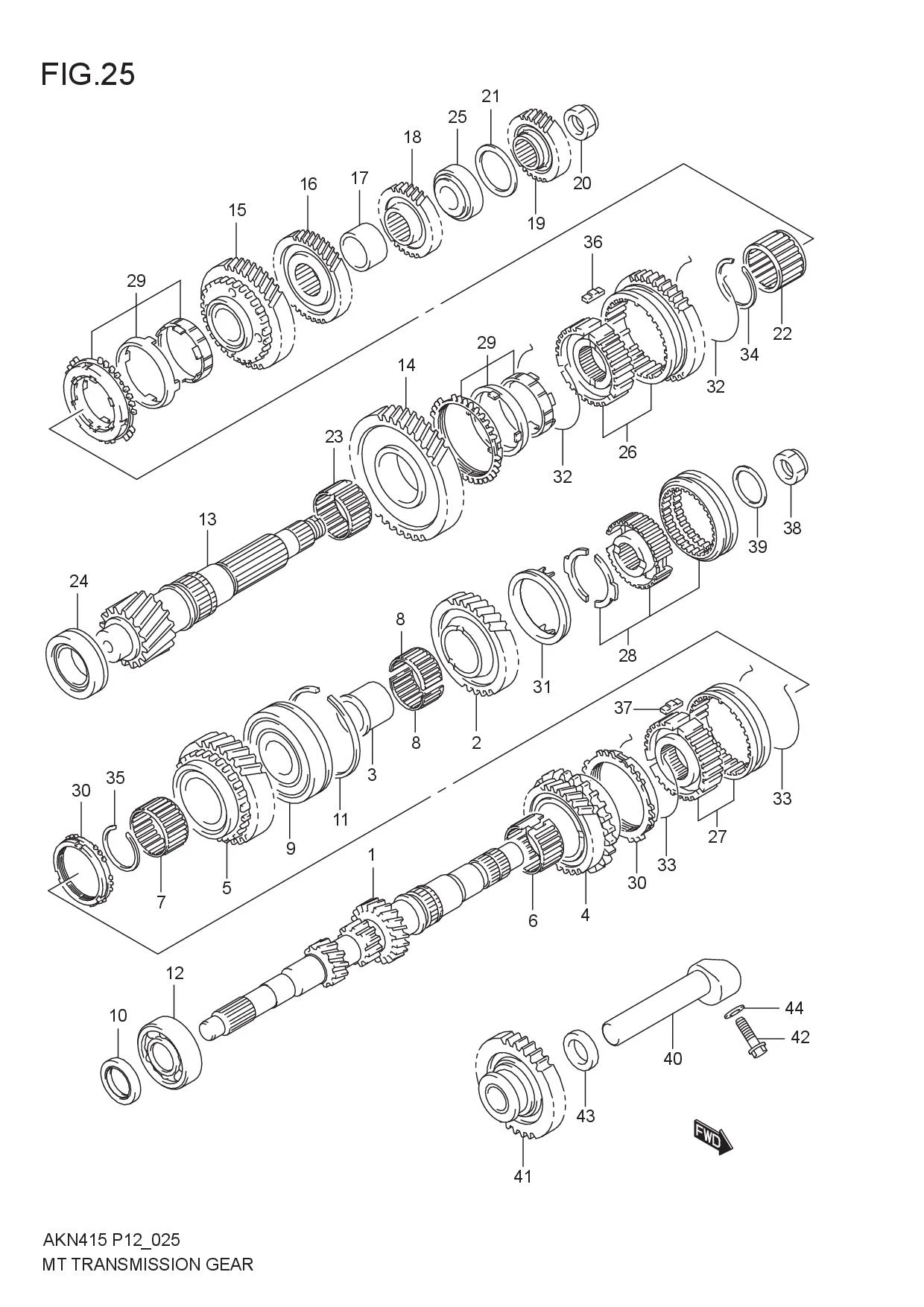

FIG.25 MT TRANSMISSION GEAR (5MT)

FIG.25 MT TRANSMISSION GEAR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111M50R00-000 SHAFT,TRANSAXLE INPUT 1 Rp2.088.500
2 24114M58R00-000 GEAR,INPUT SHAFT 5TH 1 Rp479.000
3-1 24119M79MB0-000
SUB: 24119M79MA0-000		 SPACER,INPUT SHAFT 5TH GEAR 1 Rp51.500 VENDOR:ASPEE SPRINGS LTD.
3-2 24119M79MB0-000 SPACER,INPUT SHAFT 5TH GEAR 1 Rp51.500 VENDOR:TIGHTWELL FASTNERS
4 24230M65M00-000 GEAR, INPUT SHAFT 3RD 1 Rp901.500
5 24240M55KA0-000 GEAR, INPUT SHAFT 4TH 1 Rp1.464.500
6 24283M86J00-000 BEARING, 3RD GEAR NEEDLE 1 Rp48.500
7 24284M86J00-000 BEARING, 4TH GEAR NEEDLE 1 Rp47.500
8 24285M79MA0-000 BEARING, 5TH GEAR NEEDLE 2 Rp25.000
9 24165M86J00-000 BEARING, INPUT SHAFT,LH 1 Rp195.000
10 24151M86J00-000 SEAL, INPUT SHAFT OIL 1 Rp18.500
11 09380-72002-000 RING, INPUT SHAFT,L SNAP 1 Rp42.500
12 24155M86J00-000 BEARING, INPUT SHAFT RIGHT 1 Rp186.500
13 24131M60M00-000 SHAFT, TRANSMISSION COUNTER 1 Rp2.047.000
14 24311M86JA0-000 GEAR, COUNTERSHAFT 1ST 1 Rp1.467.500
15 24321M86JA0-000 GEAR, COUNTERSHAFT 2ND 1 Rp1.386.500
16 24331M65M00-000 GEAR, COUNTERSHAFT 3RD 1 Rp686.500
17 24336M86J00-000 SPACER, 3RD & 4TH GEAR 1 Rp50.500
18 24341M55KA0-000 GEAR, COUNTERSHAFT 4TH 1 Rp421.500
19 24351M60M00-000 GEAR, COUNTERSHAFT 5TH 1 Rp352.000
20 09159-20009-000 NUT, COUNTERSHAFT 1 Rp74.000
21-12 09181-41015-000 SHIM (T:1.20) 0 Rp44.500
21-11 09181-41014-000 SHIM (T:1.15) 0 Rp44.000
21-10 09181-41013-000 SHIM (T:1.10) 0 Rp44.000
21-9 09181-41012-000 SHIM (T:1.05) 0 Rp44.000
21-8 09181-41011-000 SHIM (T:1.00) 0 Rp47.500
21-7 09181-41010-000 SHIM (T:0.95) 0 Rp44.000
21-5 09181-41008-000 SHIM (T:0.85) 0 Rp44.000
21-4 09181-41007-000 SHIM (T:0.80) 0 Rp47.500
21-3 09181-41006-000 SHIM (T:0.75) 0 Rp44.000
21-2 09181-41005-000 SHIM (T:0.70) 0 Rp44.000
21-1 09181-41004-000 SHIM (T:0.65) 0 Rp44.000
21-6 09181-41009-000 SHIM (T:0.90) 0 Rp44.000
22 24382M86J20-000
SUB: 24382M86J00-000		 BEARING, 2ND GEAR NEEDLE 1 Rp117.000
23 24381M86J20-000
SUB: 24381M86J00-000		 BEARING, 1ST GEAR NEEDLE 1 Rp56.500
24 09265-30021-000 BEARING ASSY, COUNTERSHAFT,RH 1 Rp321.000
25 09265-25041-000 BEARING ASSY, COUNTERSHAFT,LH 1 Rp283.500
26 24400M56RA0-000
SUB: 24400M74LA0-000		 HUB ASSY, LOW SPEED SYNC 1 Rp736.500
27 24410M74LB0-000
SUB: 24410M74LA1-000		 HUB ASSY, HIGH SPEED SYNC 1 Rp1.077.000
28 24420M79MA0-000 HUB ASSY, 5TH SPEED SYNC 1 Rp2.376.500
29 24430M86J00-000 RING ASSY, LOW GEAR SYNC 2 Rp909.500
30 24432M86J00-000 RING, HIGH SPEED SYNC 2 Rp139.000
31-1 24435M79MA0-000 RING, 5TH SPEED SYNC 1 Rp241.500 VENDOR:KYOWA NATESAN SYNCHRO PVT. LTD
31-2 24435-84A20-000 RING, 5TH SPEED SYNC 1 Rp280.500
32 24441-70C00-000 SPRING, LOW SPEED SYNC 2 Rp23.000
33 24442-70C00-000 SPRING, HIGH SPEED SYNC 2 Rp23.000
34 24451M78L00-000 CIRCLIP, LOW SPEED SYNC HUB 1 Rp6.000
35 24452M86J00-000 CIRCLIP, HIGH SPEED SYNC HUB 1 Rp10.000
36 24471-83M00-000 KEY, LOW SPEED SYNC 3 Rp37.500
37 24472-60B00-000 KEY, HIGH SPEED SYNC 3 Rp25.000
38 09159-20009-000 NUT, 5TH SPEED SYNC HUB 1 Rp74.000
39 09160M21022-000 WASHER, 5TH SPEED SYNC HUB 1 Rp5.500
40 DISCONTINUE
SUB: 24551-70C02-000		 SHAFT, TRANSAXLE REV GEAR 1 -
41 24560-70C60-000
SUB: 24560-70C41-000		 GEAR, REVERSE IDLER 1 Rp924.000
42 24565M53M00-000 BOLT, REVERSE SHAFT 1 Rp9.500
43 09161-18004-000 WASHER, REVERSE GEAR SHAFT 1 Rp34.500
44 09168M08030-000 WASHER, REVERSE SHAFT BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
