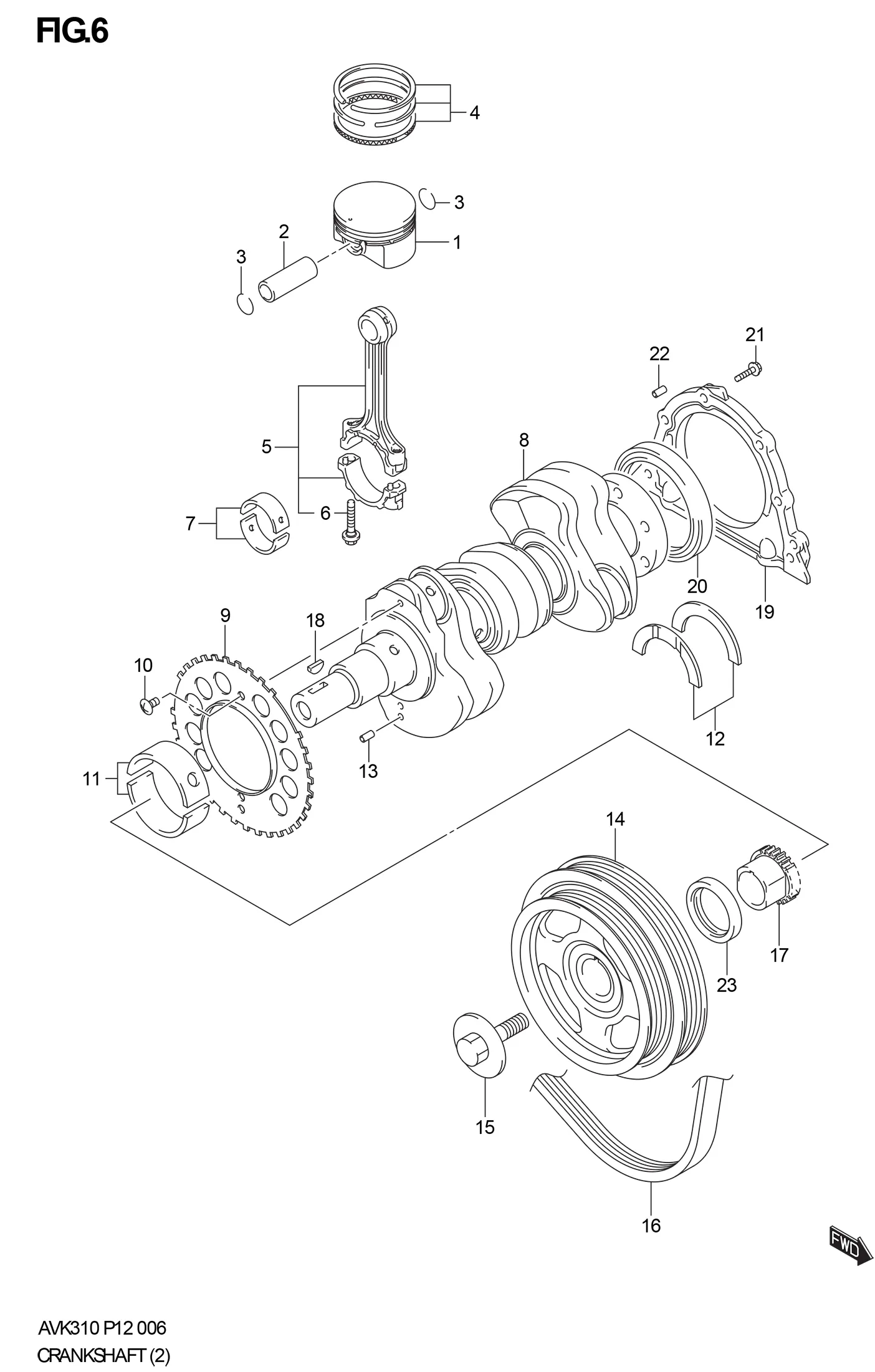

FIG.6 CRANKSHAFT (CVT)

FIG.6 CRANKSHAFT (CVT)
No No. Part Description Qty Price Per Pcs Remarks
1 12111-84M00-000 PISTON 3 Rp116.000
2 12151-71L00-0C0
SUB: 12151B71L00N0C0		 •PIN, PISTON 3 Rp49.000
3 09381-18002-000
SUB: 09381B18002N000		 •CIRCLIP 6 Rp2.500
4 12140-58M50-000
SUB: 12140B58M50N000		 RING SET, PISTON 3 Rp109.000
5 12160-58M50-000 CONNROD ASSY 3 Rp427.500
6 12163-58M00-000 •BOLT, CONNROD 6 Rp17.000
7-6 12100-68860-025 BEARING SET, CONNROD US 3 Rp300.500 US:0.25,T:1.625
7-5 12100-68860-0E0 BEARING SET, CONNROD (BLUE) 3 Rp305.500 STD,T:1.5
7-4 12100-68860-0D0 BEARING SET, CONNROD (YELLOW) 3 Rp300.500 STD,T:1.5
7-3 12100-68860-0C0 BEARING SET, CONNROD (NON) 3 Rp300.500 STD,T:1.5
7-2 12100-68860-0B0 BEARING SET, CONNROD (BLACK) 3 Rp305.500 STD,T:1.5
7-1 12100-68860-0A0 BEARING SET, CONNROD (GREEN) 3 Rp305.500 STD,T:1.5
8 12221M71M00-000 CRANKSHAFT 1 Rp2.499.000
9 12222-68K00-000
SUB: 12222B51K00N000		 PLATE, SENSOR 1 Rp86.500
10 12223-69G00-000 SCREW, SENSOR PLATE 2 Rp13.500
11-10 12300-74810-0EA BEARING SET, CRANK (RED/BLACK) 4 Rp305.500 US:0.25,T:2.125
11-9 12300-74810-0DA BEARING SET, CRANK (RED/GREEN) 4 Rp305.500 US:0.25,T:2.125
11-8 12300-74810-0CA BEARING SET, CRANK (RED/BROWN) 4 Rp300.500 US:0.25,T:2.125
11-7 12300-74810-0BA BEARING SET, CRANK (RED/PURPLE) 4 Rp305.500 US:0.25,T:2.125
11-5 12300-74810-0E0 BEARING SET, CRANK (BLACK) 4 Rp305.500 STD,T:2
11-4 12300-74810-0D0 BEARING SET, CRANK (GREEN) 4 Rp305.500 STD,T:2
11-3 12300-74810-0C0 BEARING SET, CRANK (BROWN) 4 Rp300.500 STD,T:2
11-2 12300-74810-0B0 BEARING SET, CRANK (PURPLE) 4 Rp300.500 STD,T:2
11-1 12300-74810-0A0 BEARING SET, CRANK (PINK) 4 Rp305.500 STD,T:2
11-6 12300-74810-0AA BEARING SET, CRANK (RED/PINK) 4 Rp305.500 US:0.25,T:2.125
12-1 12300-58830-000 BEARING SET, CRANK THRUST 1 Rp300.500 STD,T:2.5
12-2 12300-58830-012 BEARING SET, CRANK THRUST 1 Rp305.500 OS:0.125,T:2.563
13 09205-05006-000 SPRING PIN (5X12) 1 Rp11.500
14 12610M73K10-000
SUB: 12611M68K00-000		 PULLEY, CRANKSHAFT 1 Rp713.000
15 12619-69G10-000 BOLT, CRANK PULLEY 1 Rp102.500
16 17521-58M00-000 BELT, WATER PUMP (5PK897) 1 Rp195.500
17 12631-54GA1-000
SUB: 12631B54GA0N000		 SPROCKET, CRANKSHAFT TIMING 1 Rp171.500
18 08341M31059-000 KEY 1 Rp4.500
19 11341M51K00-000 HOUSING, OIL SEAL 1 Rp73.000
20 11342-58M00-000 SEAL, CRANKSHAFT RR OIL 1 Rp193.500
21 09103-06282-000 BOLT (6X25) 6 Rp16.500
22 04221-06129-000 PIN 2 Rp12.500
23 16141-58M00-000
SUB: 16141B58M00N000		 SEAL, CRANKSHAFT FR OIL 1 Rp97.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
