  5. FIG. 120B CRANKSHAFT (W_EASS)

New XL7 Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A SHORT ENGINE ASSYFIG. 105A ENGINE GASKET SETFIG. 110A CYLINDER HEAD COVERFIG. 111A CYLINDER HEADFIG. 112A CYLINDERFIG. 115A OIL PANFIG. 120A CRANKSHAFT (N_EASS)FIG. 120B CRANKSHAFT (W_EASS)FIG. 122A CAM SHAFT/VALVEFIG. 124A CAM CHAINFIG. 128A ENGINE MOUNTING (5MT)FIG. 128B ENGINE MOUNTING (4AT)FIG. 130A INTAKE MANIFOLDFIG. 142A THROTTLE BODYFIG. 150A AIR CLEANERFIG. 154A EXHAUST MANIFOLDFIG. 156A MUFFLERFIG. 157A DELIVERY PIPEFIG. 160A FUEL PUMPFIG. 176A OIL PUMP (N_EASS)FIG. 176B OIL PUMP (W_EASS)FIG. 180A WATER PUMP (N_EASS)FIG. 180B WATER PUMP (W_EASS)FIG. 184A RADIATOR (5MT)FIG. 184B RADIATOR (4AT)FIG. 188A WATER HOSE (5MT:(GL))FIG. 188B WATER HOSE (4AT:GL)FIG. 188C WATER HOSE (5MT:(GX))FIG. 188D WATER HOSE (4AT:(GX)FIG. 190A EMISSION CONTROLFIG. 199A LABEL

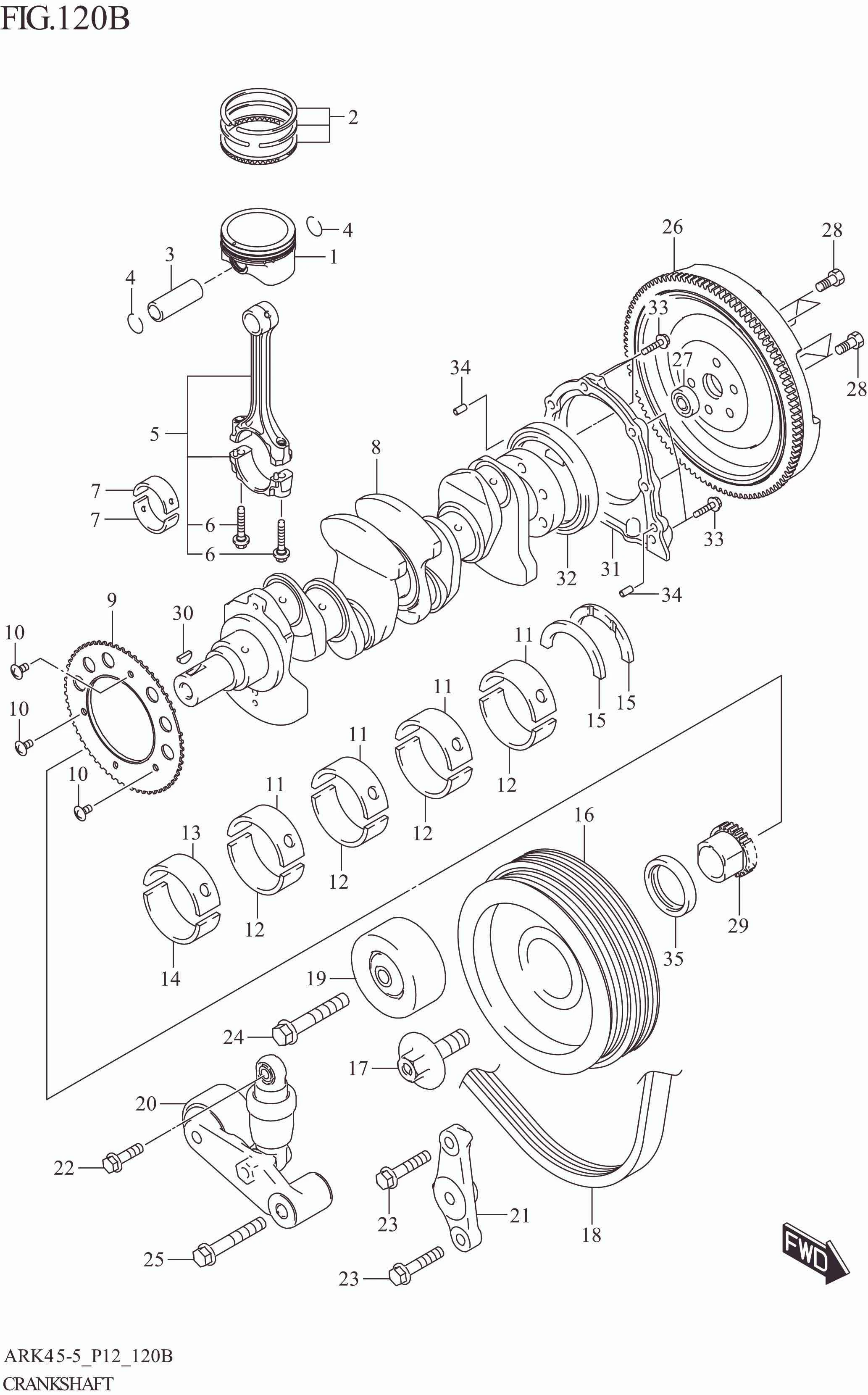

FIG. 120B CRANKSHAFT (W_EASS)

FIG. 120B CRANKSHAFT (W_EASS)
No No. Part Description Qty Price Per Pcs Remarks
1 12111-73R00-000 PISTON 4 Rp101.000
2 12140-73R00-000 RING SET,PISTON 4 Rp81.500
3 12151-71L00-0C0 PIN,PISTON 4 Rp49.000
4 09381-18002-000 CIRCLIP (OD:20.5) 8 Rp2.500
5 12160-73R00-000 CONNROD ASSY 4 Rp291.500
6 12163-69J00-000 .BOLT,CONNROD 8 Rp25.500
7-6 12181-77M00-025 BEARING,CONNROD RED (US:0.25,T:1.625) 8 Rp45.000
7-5 12181-77M00-0E0 BEARING,CONNROD BLUE (STD,T:1.5) 8 Rp46.000 COLOR:BLUE
7-4 12181-77M00-0D0 BEARING,CONNROD YELLOW (STD,T:1.5) 8 Rp45.000 COLOR:YELLOW
7-3 12181-77M00-0C0 BEARING,CONNROD NON (STD,T:1.5) 8 Rp45.000 COLOR:NON
7-2 12181-77M00-0B0 BEARING,CONNROD BLACK (STD,T:1.5) 8 Rp45.000 COLOR:BLACK
7-1 12181-77M00-0A0 BEARING,CONNROD GREEN (STD,T:1.5) 8 Rp45.000 COLOR:GREEN
8 12221-73R00-000 CRANKSHAFT 1 Rp3.691.000
9 12222-73R00-000 PLATE,SENSOR 1 Rp39.000
10 12223-69G00-000 SCREW,SENSOR PLATE 6X10 (6X10) 3 Rp14.500
11-7 12341-77M00-0BA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
11-10 12341-77M00-0EA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125,WHITE) 4 Rp26.500
11-9 12341-77M00-0DA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
11-8 12341-77M00-0CA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
11-6 12341-77M00-0AA BEARING,CRANK UPR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
11-4 12341-77M00-0D0 BEARING,CRANK UPR GREEN (STD,T:2.0) 4 Rp26.500 COLOR:GREEN
11-3 12341-77M00-0C0 BEARING,CRANK UPR BROWN (STD,T:2.0) 4 Rp26.500 COLOR:BROWN
11-2 12341-77M00-0B0 BEARING,CRANK UPR PURPLE (STD,T:2.0) 4 Rp26.500 COLOR:PURPLE
11-1 12341-77M00-0A0 BEARING,CRANK UPR PINK (STD,T:2.0) 4 Rp26.500 COLOR:PINK
11-5 12341-77M00-0E0 BEARING,CRANK UPR BLACK (STD,T:2.0) 4 Rp26.500 COLOR:BLACK
12-6 12345-77M00-0AA BEARING,CRANK LWR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
12-10 12345-77M00-0EA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125,WHITE) 4 Rp26.500
12-9 12345-77M00-0DA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
12-8 12345-77M00-0CA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
12-7 12345-77M00-0BA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
12-5 12345-77M00-0E0 BEARING,CRANK LWR BLACK (STD,T:2.0) 4 Rp26.500
12-4 12345-77M00-0D0 BEARING,CRANK LWR GREEN (STD,T:2.0) 4 Rp26.500
12-3 12345-77M00-0C0 BEARING,CRANK LWR BROWN (STD,T:2.0) 4 Rp26.500
12-2 12345-77M00-0B0 BEARING,CRANK LWR PURPLE (STD,T:2.0) 4 Rp26.500
12-1 12345-77M00-0A0 BEARING,CRANK LWR PINK (STD,T:2.0) 4 Rp26.500
13-10 12341-85K10-0ZA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 1 Rp144.000
13-9 12341-85K10-0YA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 1 Rp144.000
13-8 12341-85K10-0CA BEARING,CRANK UPR RED (US:0.25,T:2.125) 1 Rp143.500
13-7 12341-85K10-0BA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 1 Rp144.000
13-5 12341-85K10-0Z0 BEARING,CRANK UPR BROWN (STD,T:2.0) 1 Rp140.500
13-4 12341-85K10-0Y0 BEARING,CRANK UPR PURPLE (STD,T:2.0) 1 Rp143.500
13-6 12341-85K10-0AA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 1 Rp133.000
13-1 12341-85K10-0A0 BEARING,CRANK UPR GREEN (STD,T:2.0) 1 Rp129.000
13-3 12341-85K10-0C0 BEARING,CRANK UPR NON (STD,T:2.0) 1 Rp136.500
13-2 12341-85K10-0B0 BEARING,CRANK UPR BLACK (STD,T:2.0) 1 Rp143.500
14-7 12345-85K00-0BA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 1 Rp79.000
14-10 12345-85K00-0ZA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 1 Rp79.000
14-9 12345-85K00-0YA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 1 Rp79.000
14-8 12345-85K00-0CA BEARING,CRANK LWR RED (US:0.25,T:2.125) 1 Rp79.000
14-6 12345-85K00-0AA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 1 Rp79.000
14-5 12345-85K00-0Z0 BEARING,CRANK LWR BROWN (STD,T:2.0) 1 Rp77.000
14-4 12345-85K00-0Y0 BEARING,CRANK LWR PURPLE (STD,T:2.0) 1 Rp79.000
14-3 12345-85K00-0C0 BEARING,CRANK LWR NON (STD,T:2.0) 1 Rp71.500
14-2 12345-85K00-0B0 BEARING,CRANK LWR BLACK (STD,T:2.0) 1 Rp74.500
14-1 12345-85K00-0A0 BEARING,CRANK LWR GREEN (STD,T:2.0) 1 Rp71.500
15-1 12351-77M00-000 BEARING,CRANK THRUST (STD,T:2.5) 2 Rp17.500
15-2 12351-77M00-012 BEARING,CRANK THRUST (US:0.125,T:2.563) 2 Rp43.500
16 12610-81P10-000 PULLEY,CRANKSHAFT 1 Rp1.130.500
17 12619-67LA0-000 BOLT,CRANK PULLEY (12X37) 1 Rp54.000
18 17521-72RB0-000 BELT,WATER PUMP (7PK970) 1 Rp375.000
19-2 17530-68PB1-000 PULLEY,BELT IDLER 1 Rp668.500 FROM 202212
19-1 17530-68PB1-000 PULLEY,BELT 1 Rp668.500 UPTO 202211
20 17540-72RA0-000 TENSIONER ASSY,GEN BELT 1 Rp815.500
21 17541-72RA0-000 BRACKET,BELT TENSIONER 1 Rp131.000
22 01550-0830A-000 BOLT (8X30) 1 Rp4.000
23 01550-0840A-000 BOLT (8X40) 2 Rp3.500
24 01550-1060A-000 BOLT (10X60) 1 Rp5.500
25 01550M1065A-000 BOLT (10X65) 1 Rp16.500
26 12620-73R01-000
SUB: 12620-73R00-000		 FLYWHEEL 1 Rp1.030.000 5MT
27 12623-61J00-000 BEARING,INPUT SHAFT 1 Rp39.500 5MT
28 09103-10440-000 BOLT (10X18.5) 6 Rp33.000 5MT
29 12631-54GA1-000 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
30 08341M31059-000 KEY 1 Rp4.500
31 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
32 11342-67LD0-000 SEAL CRANKSHAFT REAR OIL 1 Rp70.000
33 09103-06282-000 BOLT (6X25) 6 Rp16.500
34 04221-06129-000 PIN (6X12) 2 Rp13.500
35 16141-73R00-000 SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
