  3. NEW CARRY PICK UP
  4. Transmission
  5. FIG. 260A- GEAR SHIFT CONTROL

NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 202A- MT CLUTCHFIG. 204A- MT TRANSMISSION GEARFIG. 206A- MT TRANSMISSION CASEFIG. 208A- MT GEAR SHIFT FORKFIG. 209A- MT GEAR SHIFT CASEFIG. 260A- GEAR SHIFT CONTROLFIG. 267A- PROPELLER SHAFTFIG. 282A- REAR DIFFERENTIAL GEAR

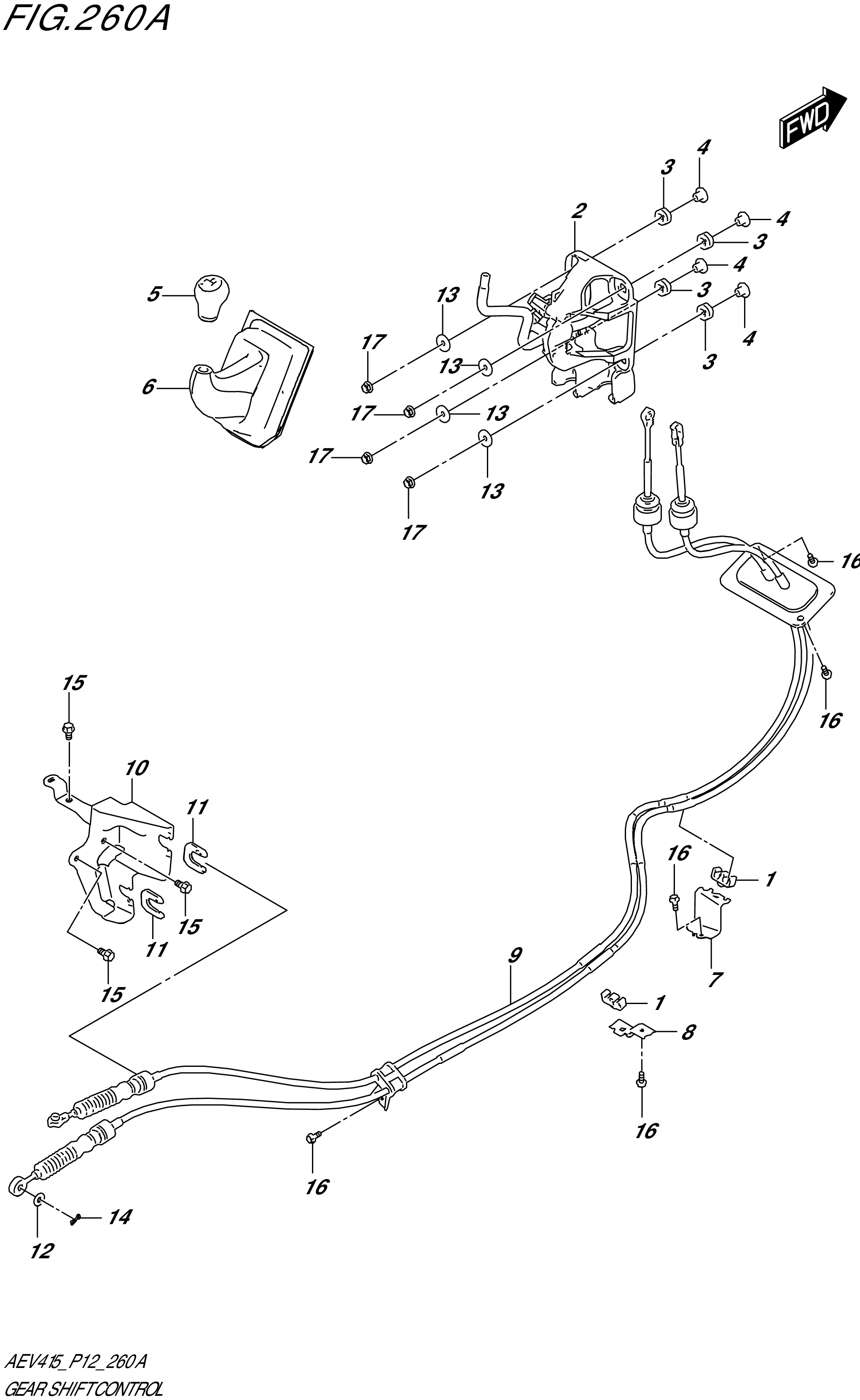

FIG. 260A- GEAR SHIFT CONTROL

FIG. 260A- GEAR SHIFT CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 15897-57L00-000 CLAMP,FUEL PIPE 2 Rp19.500
2 28101-52S00-000 LEVER S/ASSY,GEAR SHIFT CONT 1 Rp468.000
3 28131-52S00-000 CUSHION,GR SHF CONT 4 Rp7.000
4 28133-52S00-000 SPACER,GR SHF CONT CUSHION 4 Rp9.500
5 28113-52S00-5PK KNOB,GEAR SHIFT CONTROL LEVER 1 Rp69.000
6 28130-52S00-5PK BOOT,SHIFT LEVER (BLACK) 1 Rp87.500
7 28226-52S00-000 BRACKET,GR SHF CABLE CLAMP FR 1 Rp19.500
8 28226-52S20-000 BRACKET,GR SHF CABLE CLAMP RR 1 Rp18.500
9 28300-52S00-000 CABLE ASSY,GR SHF & SLT CONT 1 Rp1.012.500
10 28390-52S00-000 BRACKET,T/M CONT CABLE 1 Rp139.000
11 29365-73J00-000 CLIP,GEAR CONT CABLE NO.2 2 Rp32.500
12 09160-08054-000 WASHER (8.5X20X1.6) 1 Rp10.500
13 09160-08151-000 WASHER (8.5X26X1.6) 4 Rp16.500
14 09385-08007-000 CLIP (L:19) 1 Rp16.500
15 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 3 -
16 02162-0616A-000 SCREW (6X16) 5 Rp3.000
17 08316-1008A-000 NUT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
