KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (1)FIG.2 ENGINE GASKET SET (2)FIG.3 CYLINDER HEAD (1)FIG.4 CYLINDER HEAD (2)FIG.5 CYLINDER (1)FIG.6 CYLINDER (2)FIG.7 OIL PAN (1)FIG.8 OIL PAN (2)FIG.9 ENGINE MOUNTING (1)FIG.10 ENGINE MOUNTING (2)FIG.11 CRANKSHAFT (1)FIG.12 CRANKSHAFT (2)FIG.13 CAM SHAFT (1)FIG.14 CAM SHAFT (2)FIG.15 TIMING BELTFIG.16 CAM CHAINFIG.17 INTAKE MANIFOLD (1)FIG.18 INTAKE MANIFOLD (2)FIG.19 THROTTLE BODY (1)FIG.20 THROTTLE BODY (2)FIG.21 AIR CLEANER (1)FIG.22 AIR CLEANER (2)FIG.23 EXHAUST MANIFOLD (1)FIG.24 EXHAUST MANIFOLD (2)FIG.25 MUFFLER (1)FIG.26 MUFFLER (2)FIG.27 FUEL PUMP (1)FIG.28 FUEL PUMP (2)FIG.29 DELIVERY PIPE (1)FIG.30 DELIVERY PIPE (2)FIG.31 OIL PUMP (1)FIG.32 OIL PUMP (2)FIG.33 WATER PUMP (1)FIG.34 WATER PUMP (2)FIG.35 RADIATOR (1)FIG.36 RADIATOR (2)FIG.37 WATER HOSE (1)FIG.38 WATER HOSE (2)FIG.39 EMISSION CONTROL (1)FIG.40 EMISSION CONTROL (2)FIG.41 LABEL

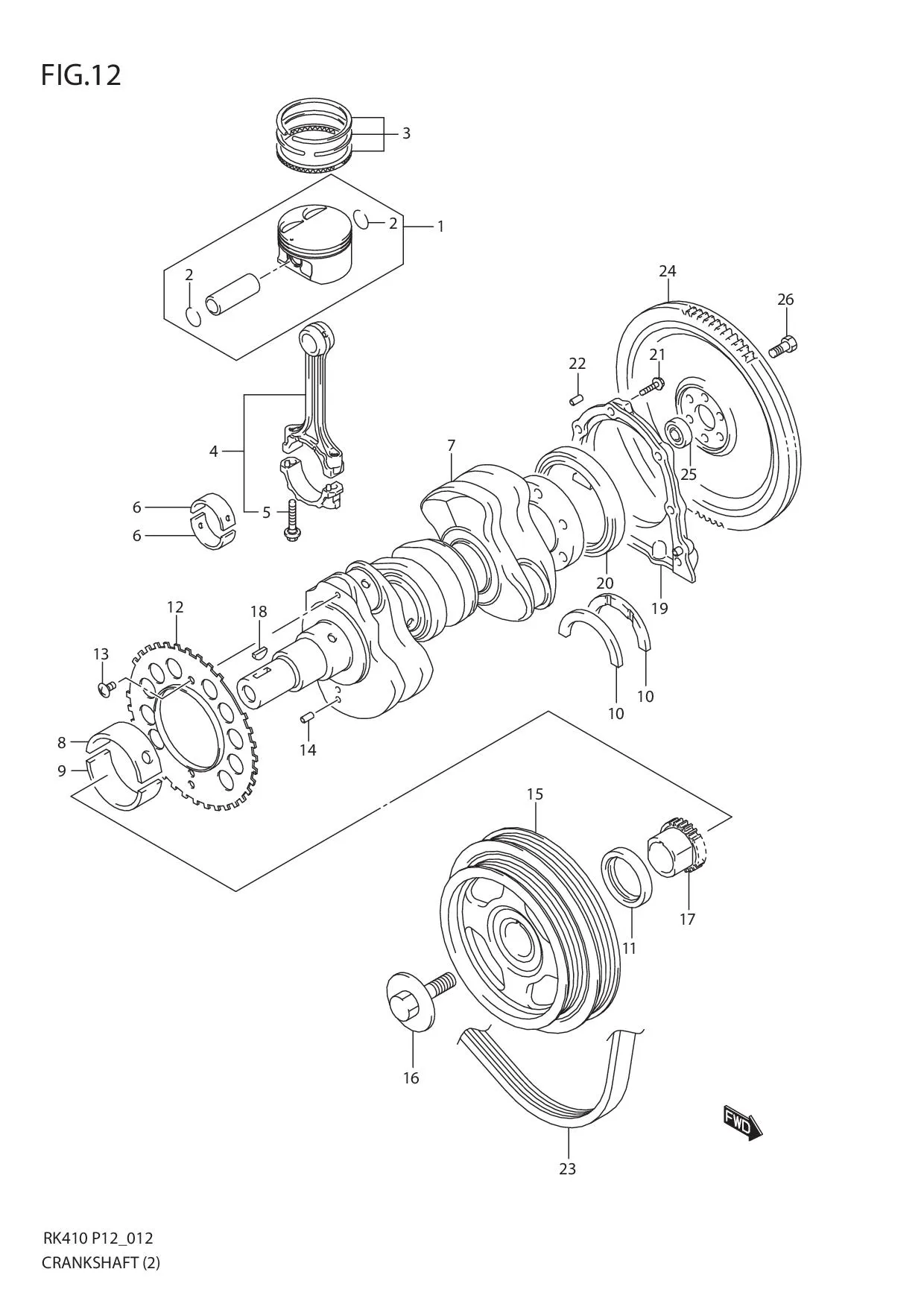

FIG.12 CRANKSHAFT (2)

FIG.12 CRANKSHAFT (2)
No No. Part Description Qty Price Per Pcs Remarks
1 12100M68850-000 PISTON SET 3 Rp265.000
2 09381-18002-000
SUB: 09381B18002N000		 •CIRCLIP 6 Rp2.500
3 12140M68K60-000
SUB: 12140M68K50-000		 RING SET, PISTON 3 Rp143.000
4 12160M68K10-000
SUB: 12160M68K00-000		 CONNROD ASSY 3 Rp358.000
5 12163-69J00-000 •BOLT, CONNROD 6 Rp25.500
6-1 12181M68K00-0A0 BEARING, CONNROD (GREEN) 6 Rp20.500 STD,T:1.5
6-2 12181M68K00-0B0 BEARING, CONNROD (BLACK) 6 Rp20.500 STD,T:1.5
6-3 12181M68K00-0C0 BEARING, CONNROD (NON COLOR) 6 Rp20.500 STD,T:1.5
6-4 12181M68K00-0D0 BEARING, CONNROD (YELLOW) 6 Rp20.500 STD,T:1.5
6-5 12181M68K00-0E0 BEARING, CONNROD (BLUE) 6 Rp22.000 STD,T:1.5
6-6 12181M68K10-025
SUB: 12181M68K00-025		 BEARING, CONNROD (RED) 6 Rp14.500 US:0.25,T:1.625
7 12221M71M00-000
SUB: 12221M68K00-000		 CRANKSHAFT 1 Rp2.499.000
8-3 12341M68K00-0C0 BEARING CRANKSHAFT UPR (BROWN) 0 Rp30.000 STD,T:2
8-9 12341M68K00-0DA BEARING CRANKSHAFT UPR US (RED/GREEN) 0 Rp144.000 US:0.25,T:2.125
8-8 12341M68K00-0CA BEARING CRANKSHAFT UPR US (RED/BROWN) 0 Rp136.000 US:0.25,T:2.125
8-7 12341M68K00-0BA BEARING CRANKSHAFT UPR US (RED/PURPLE) 0 Rp129.000 US:0.25,T:2.125
8-6 12341M68K00-0BA
SUB: 12341M68K00-0AA		 BEARING CRANKSHAFT UPR US (RED/PINK) 0 Rp129.000 US:0.25,T:2.125
8-5 12341M68K00-0E0 BEARING CRANKSHAFT UPR (BLACK) 0 Rp31.500 STD,T:2
8-4 12341M68K00-0D0 BEARING CRANKSHAFT UPR (GREEN) 0 Rp31.500 STD,T:2
8-2 12341M68K00-0B0 BEARING CRANKSHAFT UPR (PURPLE) 0 Rp30.000 STD,T:2
8-1 12341M68K00-0A0 BEARING CRANKSHAFT UPR (PINK) 0 Rp29.500 STD,T:2
9-9 12345M68K00-0DA BEARING CRANKSHAFT LWR US (RED/GREEN) 0 Rp137.000 US:0.25,T:2.125
9-8 12345M68K00-0CA BEARING CRANKSHAFT LWR US (RED/BROWN) 0 Rp133.500 US:0.25,T:2.125
9-7 12345M68K00-0BA BEARING CRANKSHAFT LWR US (RED/PURPLE) 0 Rp129.500 US:0.25,T:2.125
9-6 12345M68K00-0BA
SUB: 12345M68K00-0AA		 BEARING CRANKSHAFT LWR US (RED/PINK) 0 Rp129.500 US:0.25,T:2.125
9-4 12345M68K00-0D0 BEARING CRANKSHAFT LWR (GREEN) 0 Rp30.000 STD,T:2
9-3 12345M68K00-0C0 BEARING CRANKSHAFT LWR (BROWN) 0 Rp28.500 STD,T:2
9-2 12345M68K00-0B0 BEARING CRANKSHAFT LWR (PURPLE) 0 Rp28.500 STD,T:2
9-1 12345M68K00-0A0 BEARING CRANKSHAFT LWR (PINK) 0 Rp27.500 STD,T:2
9-5 12345M68K00-0E0 BEARING CRANKSHAFT LWR (BLACK) 0 Rp30.000 STD,T:2
10-1 12300-60840-000
SUB: 12351M68K00-000		 BEARING, CRANK THRUST 2 Rp120.000 STD,T:2.5
10-2 12300-60840-012
SUB: 12351M68K00-012		 BEARING, CRANK THRUST 2 Rp147.000 OS:0.125,T:2.563
11 16141M68K00-000 SEAL, OIL (41X53X6) 1 Rp53.500
12 12222-68K00-000
SUB: 12222B51K00N000		 PLATE, SENSOR 1 Rp86.500
13 12223-69G00-000 SCREW, SENSOR PLATE 2 Rp14.500
14 09205-05006-000 PIN 1 Rp13.500
15 12610M73K10-000
SUB: 12611M68K00-000		 PULLEY, CRANKSHAFT 1 Rp713.000
16 12619-69G10-000 BOLT, CRANK PULLEY 1 Rp102.500
17 12631-54GA1-000
SUB: 12631-54G00-000		 SPROCKET, CRANKSHAFT TIMING 1 Rp171.500
18-0 12341M68K00-0EA BEARING CRANKSHAFT UPR US (RED/BLACK) 0 Rp144.000 US:0.25,T:2.125
18 08341M31059-000 KEY 1 Rp4.500
19-0 12345M68K00-0EA BEARING CRANKSHAFT LWR US (RED/BLACK) 0 Rp137.000 US:0.25,T:2.125
19 11341M51K00-000 HOUSING, OIL SEAL 1 Rp73.000
20 11342M68K00-000 SEAL, CRANKSHAFT RR OIL 1 Rp131.500
21 09103-06282-000 BOLT (6X25) 6 Rp16.500
22 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp17.000
23 17521M65L50-000
SUB: 17521M65L00-000		 BELT, WATER PUMP (5PK890) 1 Rp144.000
24 12620-77M01-000
SUB: 12620M68K00-000		 FLYWHEEL 1 Rp766.000
25 12623M68K00-000 BEARING, INPUT SHAFT 1 Rp88.000
26 09100-10275-000
SUB: 09103-10305-000		 BOLT (10X18.5) 6 Rp31.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
