ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.324B SPEEDOMETER FIG.330B HEADLAMP FIG.336A REAR LAMP FIG.340A WIRING HARNESS FIG.360B LOCK SET FIG.376B REAR WINDOW WIPER FIG.392B AUDIO

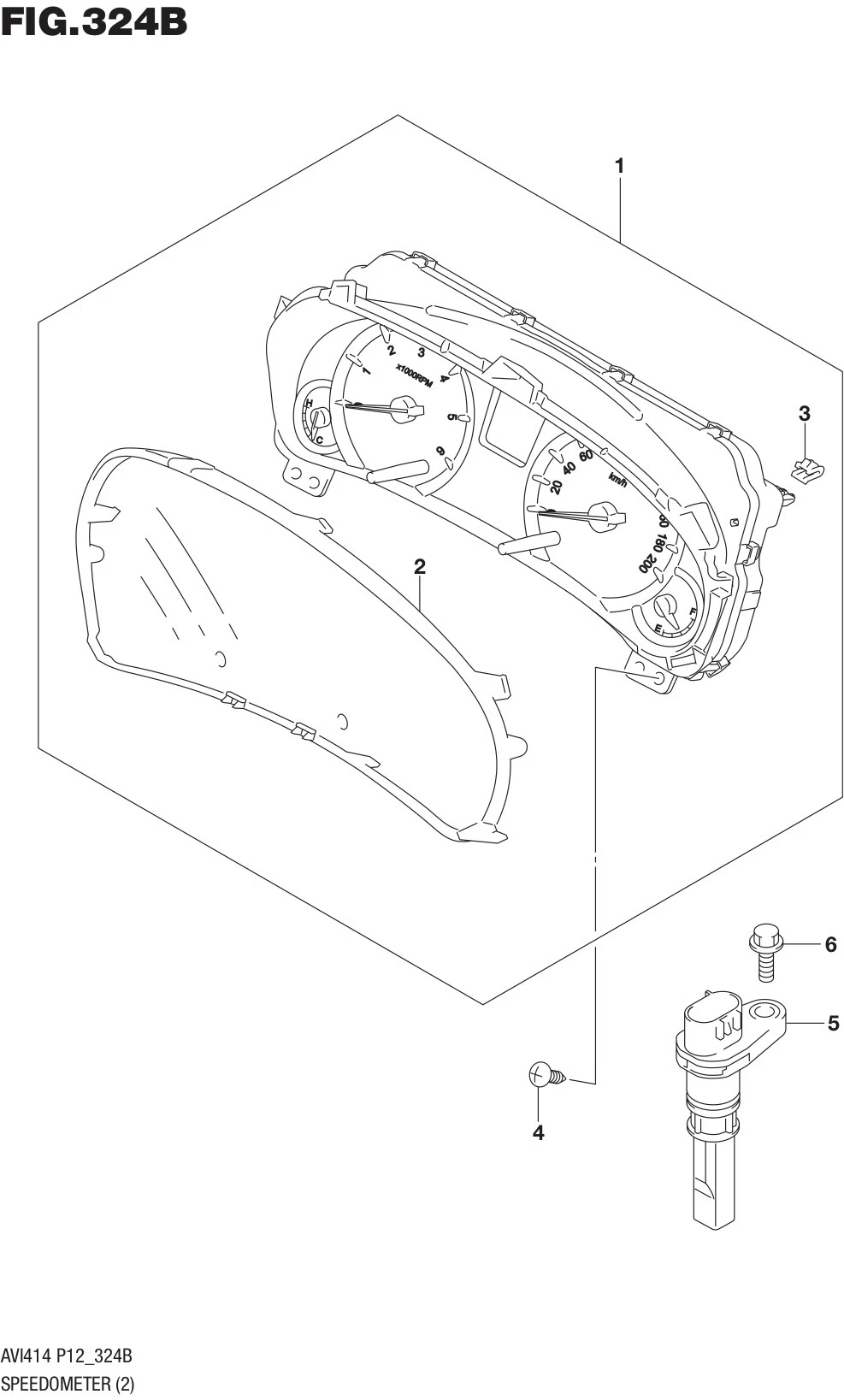

FIG.324B SPEEDOMETER

FIG.324B SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	34100-77MA1-000 SUB: 34100B77MA0N000	SPEEDOMETER ASSY	1	Rp2.373.000	TYPE 1, TYPE 2 : GL MT
1-2	34100-77MJ1-000 SUB: 34100B77MJ0N000	SPEEDOMETER ASSY	1	Rp2.616.000	TYPE 2 : GL AT
1-3	34100-77MH1-000 SUB: 34100B77MH0N000	SPEEDOMETER ASSY	1	Rp2.373.000	TYPE 1, TYPE 2 : GX MT
1-4	34100-77MR1-000 SUB: 34100B77MR0N000	SPEEDOMETER ASSY	1	Rp2.616.000	TYPE 2 : GX AT
1-5	34101-59RB0-000	SPEEDOMETER ASSY	1	Rp2.150.500	TYPE 3 : GL MT
1-6	34101-59RK0-000	SPEEDOMETER ASSY	1	Rp2.150.500	TYPE 3 : GL AT
1-7	34101-59RF0-000	SPEEDOMETER ASSY	1	Rp2.200.500	TYPE 3 : GX MT
1-8	34101-59RP0-000	SPEEDOMETER ASSY	1	Rp2.200.500	TYPE 3 : GX AT
1-9	34101-59RH0-000	SPEEDOMETER ASSY	1	Rp2.096.000	Dreza:5MT
1-10	34101-59RR0-000	SPEEDOMETER ASSY	1	Rp2.096.000	Dreza:4AT
2-1	34112-58M00-000 SUB: 34112B58M00N000	•GLASS, METER WINDOW	1	Rp424.000	TYPE 1, TYPE 2
2-2	34112-59R00-000	•GLASS, METER WINDOW	1	Rp129.000	TYPE 3
3	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
4	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
5	34960M68P10-000 SUB: 34960M68K10-000	SENSOR ASSY, SPEED	1	Rp364.000	MT
6	01550-0616A-000 SUB: 01550B0616AN000	BOLT	1	Rp3.500	MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
