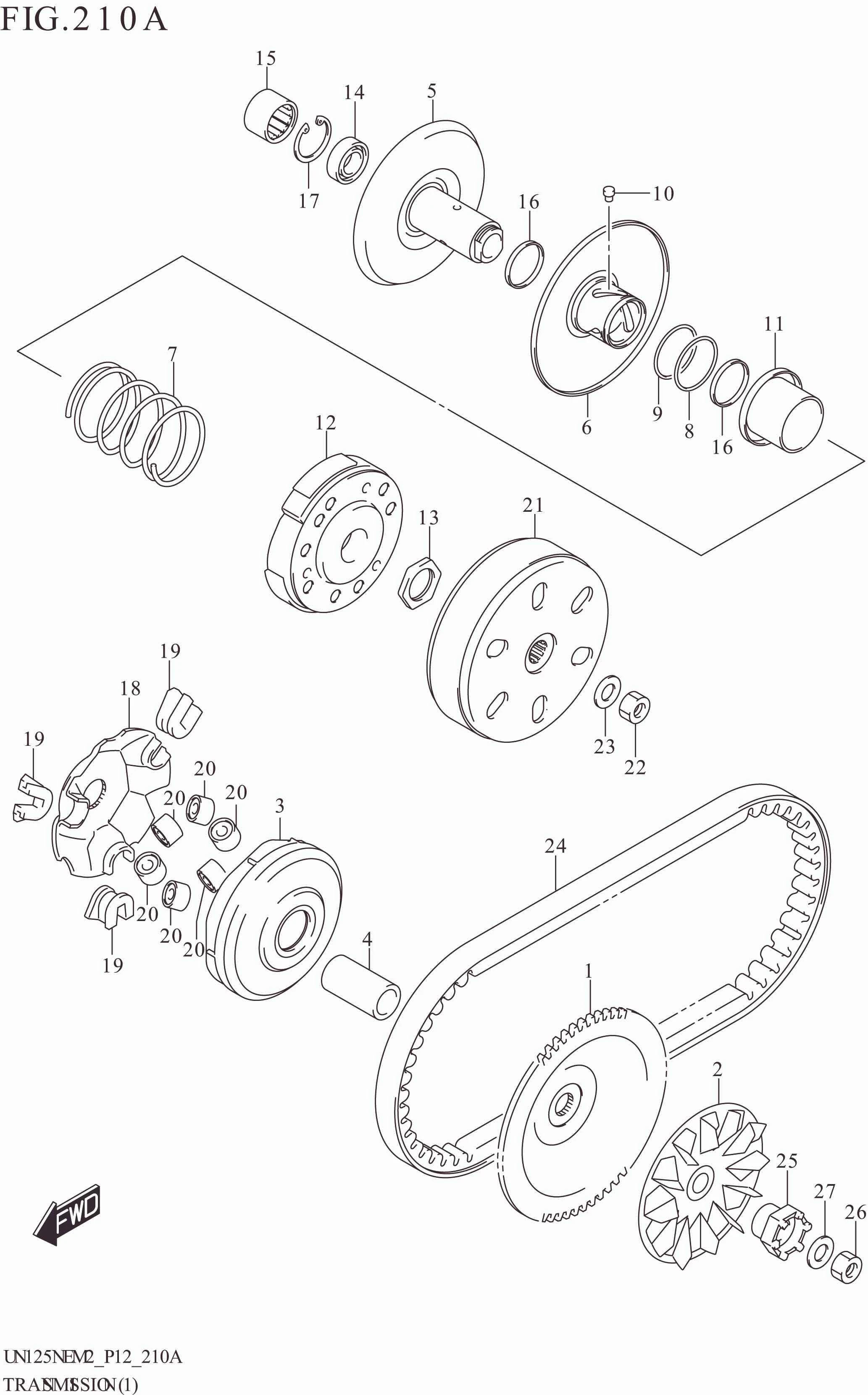

No	No. Part	Description	Qty	Price Per Pcs
1	21111-08K00-000	FACE,FIXED DRIVE	1	Rp287.000
2	21113-39J10-000	FAN,FIXED DRIVE	1	Rp43.500
3	21120-33G70-000	FACE,MOVABLE DRIVE	1	Rp209.500
4	21125-33G00-000	SPACER,MOVABLE DRIVE	1	Rp68.000
5	21210-08K00-000	FACE,FIXED DRIVEN	1	Rp366.500
6	21240-08K01-000	FACE,MOVABLE DRIVEN	1	Rp294.000
7	21243-08K00-000	SPRING,MOVABLE DRIVEN	1	Rp46.000
8	21245-09J00-000	O-RING,MOVABLE DRIVEN	1	Rp11.500
9	21246-08K00-000	O-RING,MOVABLE DRIVEN	1	Rp9.500
10	21248-08K00-000	PIN,MOVABLE DRIVEN	3	Rp5.500
11	21471-08K00-000	SHEET,MOVABLE DRIVEN	1	Rp25.000
12	21501-08K10-000	CLUTCH ASSY,SHOE	1	Rp563.000
13	21518-09J00-000	NUT,SHOE CLUTCH	1	Rp8.500
14	21215-08K10-000	BEARING,FIXED DRIVEN,L	1	Rp76.500
15	21214-08K00-000	BEARING,FIXED DRIVEN,R	1	Rp83.000
16	21247-08K00-000	SEAL,MOVABLE DRIVEN OIL	2	Rp29.000
17	21216-08K00-000	CIRCLIP,FIXED DRIVEN	1	Rp9.500
18	21431-33G00-000	PLATE,MOVABLE DRIVE	1	Rp78.000
19	21481-08K00-000	DAMPER,MOVABLE DRIVE PLATE	3	Rp35.000
20	21650-08K10-000	ROLLER,MOVABLE DRIVE	6	Rp31.000
21	21220-08K10-000	HOUSING,CLUTCH	1	Rp265.000
22	09140-12055-000	NUT	1	Rp5.500
23	08211-12223-000	WASHER	1	Rp5.500
24	27601-08K10-000	V-BELT,DRIVE	1	Rp202.000
25-1	26231-08K00-000	STARTER,KICK,R	1	Rp72.000
26	09140-12055-000	NUT	1	Rp5.500
27	08211-12223-000	WASHER	1	Rp5.500
