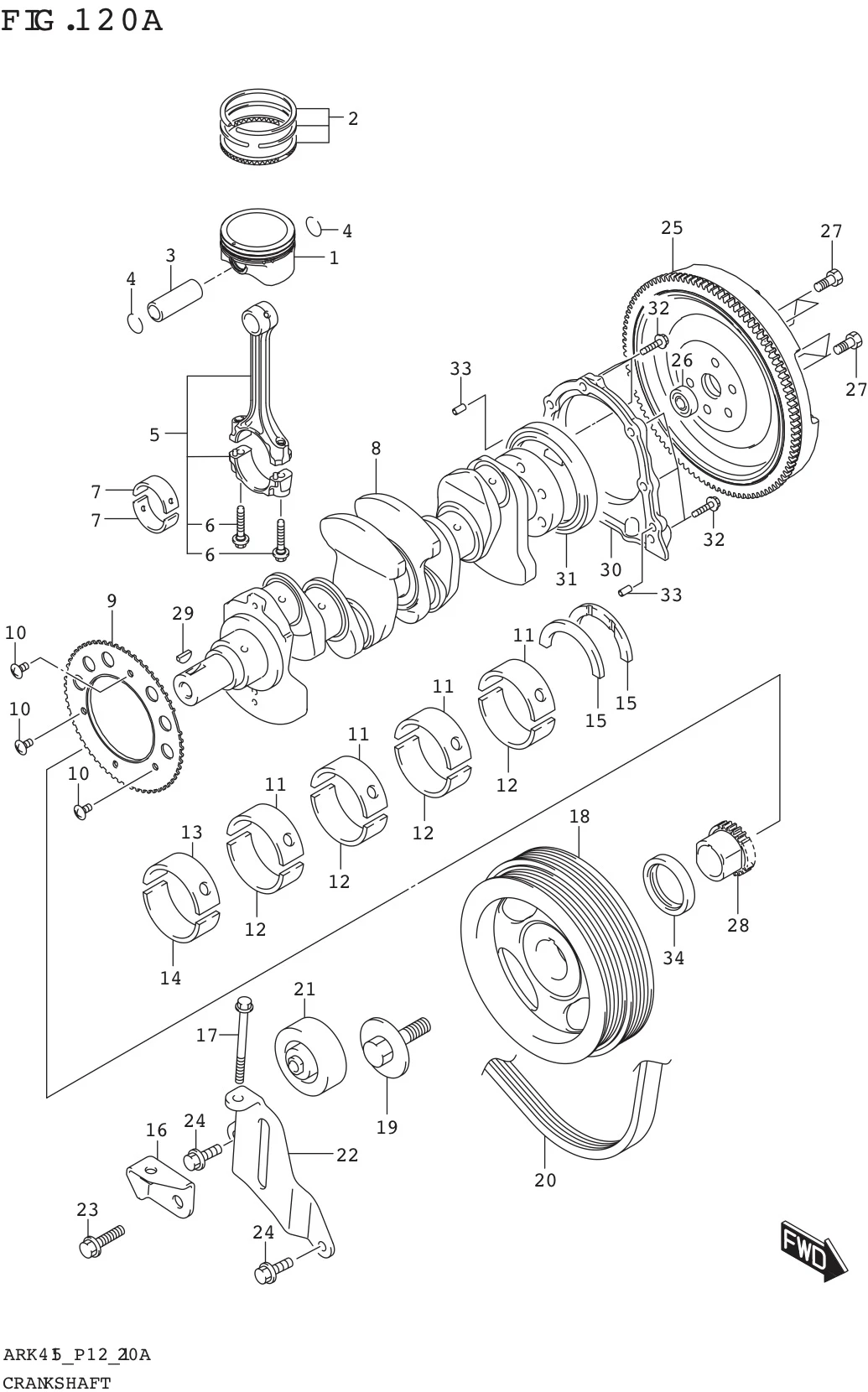

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-73R00-000 PISTON 4 Rp101.000
2 12140-73R00-000 RING SET,PISTON 4 Rp81.500
3 12151-71L00-0C0
SUB: 12151B71L00N0C0		 PIN,PISTON 4 Rp49.000
4 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP (OD:20.5) 8 Rp2.500
5 12160-73R00-000 CONNROD ASSY 4 Rp291.500
6 12163-69J00-000 .BOLT,CONNROD 8 Rp25.500
7-5 12181-77M00-0E0
SUB: 12181B77M00N0E0		 BEARING,CONNROD BLUE (STD,T:1.5) 8 Rp46.000 COLOR:BLUE
7-6 12181-77M00-025
SUB: 12181B77M00N025		 BEARING,CONNROD RED 8 Rp45.000 COLOR:RED
7-4 12181-77M00-0D0
SUB: 12181B77M00N0D0		 BEARING,CONNROD YELLOW (STD,T:1.5) 8 Rp45.000 COLOR:YELLOW
7-3 12181-77M00-0C0
SUB: 12181B77M00N0C0		 BEARING,CONNROD NON (STD,T:1.5) 8 Rp45.000 COLOR:NON
7-2 12181-77M00-0B0
SUB: 12181B77M00N0B0		 BEARING,CONNROD BLACK (STD,T:1.5) 8 Rp45.000 COLOR:BLACK
7-1 12181-77M00-0A0
SUB: 12181B77M00N0A0		 BEARING,CONNROD GREEN (STD,T:1.5) 8 Rp45.000 COLOR:GREEN
8 12221-73R00-000 CRANKSHAFT 1 Rp3.691.000
9 12222-73R00-000 PLATE,SENSOR 1 Rp39.000
10 12223-69G00-000 SCREW,SENSOR PLATE (6X10) 3 Rp14.500
11-6 12341-77M00-0AA
SUB: 12341B77M00N0AA		 BEARING,CRANK UPR RED/PINK 4 Rp26.500 COLOR:RED/PINK
11-10 12341-77M00-0EA
SUB: 12341B77M00N0EA		 BEARING,CRANK UPR RED/BLACK 4 Rp26.500 COLOR:RED/BLACK
11-9 12341-77M00-0DA
SUB: 12341B77M00N0DA		 BEARING,CRANK UPR RED/GREEN 4 Rp27.000 COLOR:RED/GREEN
11-8 12341-77M00-0CA
SUB: 12341B77M00N0CA		 BEARING,CRANK UPR RED/BROWN 4 Rp26.500 COLOR:RED/BROWN
11-7 12341-77M00-0BA
SUB: 12341B77M00N0BA		 BEARING,CRANK UPR RED/PURPLE 4 Rp26.500 COLOR:RED/PURPLE
11-5 12341-77M00-0E0
SUB: 12341B77M00N0E0		 BEARING,CRANK UPR BLACK 4 Rp26.500 COLOR:BLACK
11-4 12341-77M00-0D0
SUB: 12341B77M00N0D0		 BEARING,CRANK UPR GREEN 4 Rp26.500 COLOR:GREEN
11-3 12341-77M00-0C0
SUB: 12341B77M00N0C0		 BEARING,CRANK UPR BROWN 4 Rp26.500 COLOR:BROWN
11-2 12341-77M00-0B0
SUB: 12341B77M00N0B0		 BEARING,CRANK UPR PURPLE 4 Rp26.500 COLOR:PURPLE
11-1 12341-77M00-0A0
SUB: 12341B77M00N0A0		 BEARING,CRANK UPR PINK (STD,T:2.0) 4 Rp26.500 COLOR:PINK
12-6 12345-77M00-0AA
SUB: 12345B77M00N0AA		 BEARING,CRANK LWR RED/PINK 4 Rp26.500 COLOR:RED/PINK
12-10 12345-77M00-0EA
SUB: 12345B77M00N0EA		 BEARING,CRANK LWR RED/BLACK 4 Rp26.500 COLOR:RED/BLACK
12-9 12345-77M00-0DA
SUB: 12345B77M00N0DA		 BEARING,CRANK LWR RED/GREEN 4 Rp27.000 COLOR:RED/GREEN
12-8 12345-77M00-0CA
SUB: 12345B77M00N0CA		 BEARING,CRANK LWR RED/BROWN 4 Rp26.500 COLOR:RED/BROWN
12-7 12345-77M00-0BA
SUB: 12345B77M00N0BA		 BEARING,CRANK LWR RED/PURPLE 4 Rp26.500 COLOR:RED/PURPLE
12-5 12345-77M00-0E0
SUB: 12345B77M00N0E0		 BEARING,CRANK LWR BLACK 4 Rp26.500 COLOR:BLACK
12-4 12345-77M00-0D0
SUB: 12345B77M00N0D0		 BEARING,CRANK LWR GREEN 4 Rp26.500 COLOR:GREEN
12-3 12345-77M00-0C0
SUB: 12345B77M00N0C0		 BEARING,CRANK LWR BROWN 4 Rp26.500 COLOR:BROWN
12-2 12345-77M00-0B0
SUB: 12345B77M00N0B0		 BEARING,CRANK LWR PURPLE 4 Rp26.500 COLOR:PURPLE
12-1 12345-77M00-0A0
SUB: 12345B77M00N0A0		 BEARING,CRANK LWR PINK (STD,T:2.0) 4 Rp26.500 COLOR:PINK
13-4 12341-85K10-0Y0 BEARING,CRANK UPR PURPLE 1 Rp143.500 COLOR:PURPLE
13-10 12341-85K10-0ZA BEARING,CRANK UPR RED/BROWN 1 Rp144.000 COLOR:RED/BROWN
13-9 12341-85K10-0YA BEARING,CRANK UPR RED/PURPLE 1 Rp144.000 COLOR:RED/PURPLE
13-8 12341-85K10-0CA BEARING,CRANK UPR RED 1 Rp143.500 COLOR:RED
13-7 12341-85K10-0BA BEARING,CRANK UPR RED/BLACK 1 Rp144.000 COLOR:RED/BLACK
13-5 12341-85K10-0Z0 BEARING,CRANK UPR BROWN 1 Rp140.500 COLOR:BROWN
13-6 12341-85K10-0AA BEARING,CRANK UPR RED/GREEN 1 Rp133.000 COLOR:RED/GREEN
13-1 12341-85K10-0A0 BEARING,CRANK UPR GREEN (STD,T:2.0) 1 Rp129.000 COLOR:GREEN
13-2 12341-85K10-0B0 BEARING,CRANK UPR BLACK (STD,T:2.0) 1 Rp143.500 COLOR:BLACK
13-3 12341-85K10-0C0 BEARING,CRANK UPR NON (STD,T:2.0) 1 Rp136.500 COLOR:NON
14-1 12345-85K00-0A0 BEARING,CRANK LWR GREEN 1 Rp71.500 COLOR:GREEN
14-2 12345-85K00-0B0 BEARING,CRANK LWR BLACK (STD,T:2.0) 1 Rp74.500 COLOR:BLACK
14-3 12345-85K00-0C0 BEARING,CRANK LWR NON 1 Rp71.500 COLOR:NON
14-4 12345-85K00-0Y0 BEARING,CRANK LWR PURPLE 1 Rp79.000 COLOR:PURPLE
14-5 12345-85K00-0Z0 BEARING,CRANK LWR BROWN 1 Rp77.000 COLOR:BROWN
14-6 12345-85K00-0AA BEARING,CRANK LWR RED/GREEN 1 Rp79.000 COLOR:RED/GREEN
14-7 12345-85K00-0BA BEARING,CRANK LWR RED/BLACK 1 Rp79.000 COLOR:RED/BLACK
14-8 12345-85K00-0CA BEARING,CRANK LWR RED 1 Rp79.000 COLOR:RED
14-9 12345-85K00-0YA BEARING,CRANK LWR RED/PURPLE 1 Rp79.000 COLOR:RED/PURPLE
14-10 12345-85K00-0ZA BEARING,CRANK LWR RED/BROWN 1 Rp79.000 COLOR:RED/BROWN
15-1 12351-77M00-000
SUB: 12351B77M00N000		 BEARING,CRANK THRUST (STD,T:2.5) 2 Rp17.500
15-2 12351-77M00-012
SUB: 12351B77M00N012		 BEARING,CRANK THRUST US 2 Rp43.500
16 11562-73R00-000 ADJUSTER,GENERATOR 1 Rp8.000
17 11563-61M00-000 BOLT,GEN BELT ADJUSTING 1 Rp57.000
18 12610-73R00-000 PULLEY,CRANKSHAFT 1 Rp293.500
19 12619-67LA0-000
SUB: 12619B67LA0N000		 BOLT,CRANK PULLEY (12X37) 1 Rp54.000
20 17521-73R00-000 BELT,WATER PUMP (5PK913) 1 Rp79.000
21 17530-62R03-000
SUB: 17530-62R01-000		 PULLEY,BELT TENSIONER 1 Rp580.000
22 17541-73R00-000 ARM,BELT TENSIONER 1 Rp46.500
23 17545-62R00-000 BOLT,TENSIONER PULLEY 1 Rp41.500
24 01550-0825A-000 BOLT (8X25) 2 Rp3.500
25 12620-73R01-000
SUB: 12620-73R00-000		 FLYWHEEL 1 Rp1.030.000 5MT
26 12623-61J00-000 BEARING,INPUT SHAFT 1 Rp39.500 5MT
27 09103-10440-000 BOLT (10X18.5) 6 Rp33.000 5MT
28 12631-54GA1-000 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
29 08341M31059-000 KEY 1 Rp4.500
30 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
31 11342-67LD0-000 SEAL CRANKSHAFT REAR OIL 1 Rp70.000
32 09103-06282-000 BOLT (6X25) 6 Rp16.500
33 04221-06129-000 PIN (4X6X11) 2 Rp13.500
34 16141-73R00-000 SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
