All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 400A FRONT SUSPENSION408A FRONT STABILIZER410A FRONT DRIVE SHAFT (5MT)410B FRONT DRIVE SHAFT (4AT)418A FRONT SUSPENSION FRAME430A REAR SUSPENSION449A ROAD WHEEL/TIRE (GA)449B ROAD WHEEL/TIRE (GL)449C ROAD WHEEL/TIRE (GX)449D ROAD WHEEL/TIRE (SS)451A STEERING WHEEL (GA)451B STEERING WHEEL (GL)451C STEERING WHEEL (GX,SS)453A STEERING COLUMN (GA,GL)453B STEERING COLUMN (GX,SS)480A STEERING UNIT490A PEDAL/PEDAL BRACKET (5MT)490B PEDAL/PEDAL BRACKET (4AT)500A BRAKE MASTER CYLINDER (5MT:N_ESP)500B BRAKE MASTER CYLINDER (5MT:W_ESP)500C BRAKE MASTER CYLINDER (4AT:N_ESP)500D BRAKE MASTER CYLINDER (4AT:W_ESP)50CA FRONT BRAKE PIPING (N_ESP)50CB FRONT BRAKE PIPING (W_ESP)50DA REAR BRAKE PIPING510A ANTI LOCK BRAKE SYSTEM (N_ESP)510B ANTI LOCK BRAKE SYSTEM (W_ESP)520A FRONT WHEEL BRAKE530A REAR WHEEL BRAKE542A PARKING BRAKE

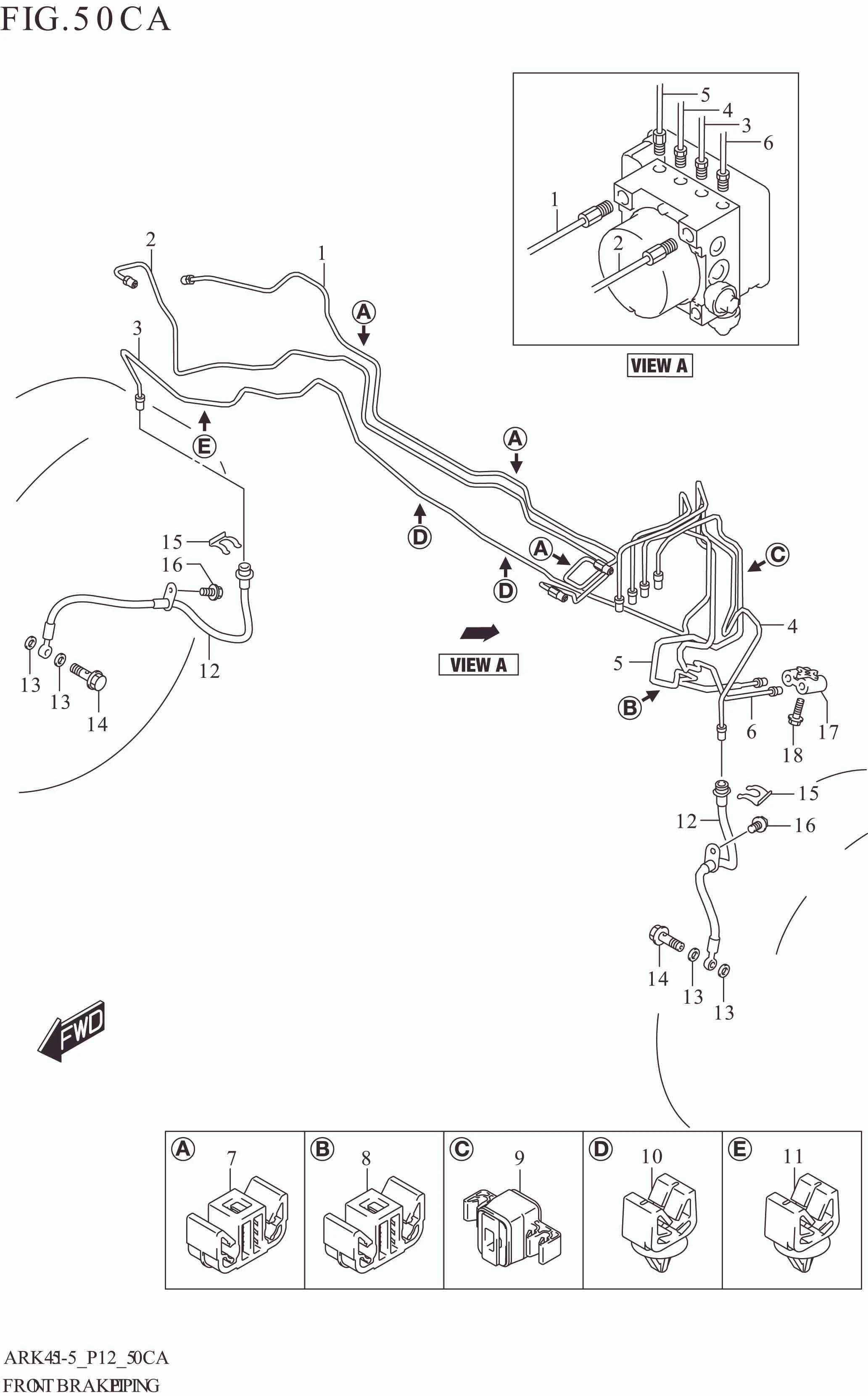

50CA FRONT BRAKE PIPING (N_ESP)

50CA FRONT BRAKE PIPING (N_ESP)
No No. Part Description Qty Price Per Pcs Remarks
1 51410-73R10-000 PIPE,MA PRI TO HU 1 Rp49.000
2 51420-73R10-000 PIPE,MA SEC TO HU 1 Rp58.500
3 51430-73R00-000 PIPE,HU TO FR BK HOSE,R 1 Rp54.500
4 51440-73R00-000 PIPE,HU TO FR BK HOSE,L 1 Rp54.500
5 51450-73R00-000 PIPE,HU TO JOINT,R 1 Rp46.500
6 51460-73R00-000 PIPE,HU TO JOINT,L 1 Rp39.000
7 51751-67L20-000 CLAMP,BK PIPE RR FL DOUBLE 3 Rp6.500
8 51751-67L20-000 CLAMP,BK PIPE RR FL DOUBLE 1 Rp6.500
9 51751M68P00-000 CLAMP,BK PIPE 1 Rp46.000
10 51761-77M40-000 CLAMP, BRAKE PIPE 2 Rp6.500
11 51761-77M40-000 CLAMP, BRAKE PIPE 1 Rp6.500
12 51550-68R01-000 HOSE,FR BRAKE FLEXIBLE 2 Rp214.500
13 51562-67L20-000 WASHER,FR DISC FLEXIBLE HOSE 4 Rp6.500
14 51561M55K00-000 UNION (10X1.0X23) 2 Rp8.500
15 09383M13004-000 E RING 2 Rp7.000
16 01551-0816C-000 BOLT 2 Rp13.500
17 51630-81K00-000 JOINT,BRAKE 4 WAY 1 Rp135.000
18 02162M0625E-000 BOLT,BRAKE JOINT 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
