DT9.9 15 P40 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER (DT9.9 P40)FIG 2 CYLINDER (DT9.9K P40)FIG 3 CYLINDER (DT9.9K P36)FIG 4 CYLINDER (DT15 P40)FIG 5 CYLINDER (DT15 P37)FIG 6 CYLINDER (DT15K P36)FIG 7 CRANKSHAFTFIG 8 INLET CASE (DT9.9 P40)FIG 9 INLET CASE (DT9.9K P40)FIG 10 INLET CASE (DT9.9K P36)FIG 11 INLET CASE (DT15 P40)FIG 12 INLET CASE (DT15 P37)FIG 13 INLET CASE (DT15K P36)FIG 14 CARBURETOR (DT9.9 P40)FIG 15 CARBURETOR (DT9.9K P40)FIG 16 CARBURETOR (DT9.9K P36)FIG 17 CARBURETOR (DT15 P40)FIG 18 CARBURETOR (DT15 P37)FIG 19 CARBURETOR (DT15K P36)FIG 20 EXHAUST TUBEFIG 21 FUEL PUMP (DT9.9 P40)FIG 22 FUEL PUMP (DT9.9K P40)FIG 23 FUEL PUMP (DT9.9K P36)FIG 24 FUEL PUMP (DT15 P40)FIG 25 FUEL PUMP (DT15 P37)FIG 26 FUEL PUMP (DT15K P36)FIG 27 WATER PUMP (DT9.9 P40)FIG 28 WATER PUMP (DT9.9K P40)FIG 29 WATER PUMP (DT9.9K P36)FIG 30 WATER PUMP (DT15 P40)FIG 31 WATER PUMP (DT15 P37)FIG 32 WATER PUMP (DT15K P36)FIG 33 STARTERFIG 34 THROTTLE CONTROL (DT9.9 P40)FIG 35 THROTTLE CONTROL (DT9.9K P40)FIG 36 THROTTLE CONTROL (DT9.9K P36)FIG 37 THROTTLE CONTROL (DT15 P40)FIG 38 THROTTLE CONTROL (DT15 P37)FIG 39 THROTTLE CONTROL (DT15K P36)FIG 40 CLUTCH (DT9.9 P40)FIG 41 CLUTCH (DT9.9K P40)FIG 42 CLUTCH (DT9.9K P36)FIG 43 CLUTCH (DT15 P40)FIG 44 CLUTCH (DT15 P37)FIG 45 CLUTCH (DT15K P36)FIG 46 TRANSMISSION (DT9.9 P40)FIG 47 TRANSMISSION (DT9.9K P40)FIG 48 TRANSMISSION (DT9.9K P36)FIG 49 TRANSMISSION (DT15 P40)FIG 50 TRANSMISSION (DT15 P37)FIG 51 TRANSMISSION (DT15K P36)FIG 52 STARTING MOTOR (DT15 P40)FIG 53 MAGNETO (DT9.9 P40)FIG 54 MAGNETO (DT9.9K P40)FIG 55 MAGNETO (DT9.9K P36)FIG 56 MAGNETO (DT15 P40)FIG 57 MAGNETO (DT15 P37)FIG 58 MAGNETO (DT15K P36)FIG 59 IGNITION COIL (DT9.9 P40)FIG 60 IGNITION COIL (DT9.9K P40)FIG 61 IGNITION COIL (DT9.9K P36)FIG 62 IGNITION COIL (DT15 P40)FIG 63 IGNITION COIL (DT15 P37)FIG 64 IGNITION COIL (DT15K P36)FIG 65 HARNESS (DT15 P40)FIG 66 ELECTRICAL (DT9.9 P40)FIG 67 ELECTRICAL (DT9.9K P40)FIG 68 ELECTRICAL (DT9.9K P36)FIG 69 ELECTRICAL (DT15 P40)FIG 70 ELECTRICAL (DT15 P37)FIG 71 ELECTRICAL (DT15K P36)FIG 72 CLAMP BRACKETFIG 73 SWIVEL BRACKETFIG 74 DRIVE SHAFT HOUSING (DT9.9 P40)FIG 75 DRIVE SHAFT HOUSING (DT9.9K P40)FIG 76 DRIVE SHAFT HOUSING (DT9.9K P36)FIG 77 DRIVE SHAFT HOUSING (DT15 P40)FIG 78 DRIVE SHAFT HOUSING (DT15 P37)FIG 79 DRIVE SHAFT HOUSING (DT15K P36)FIG 80 GEAR CASEFIG 81 LOWER COVER (DT9.9 P40)FIG 82 LOWER COVER (DT9.9K P40)FIG 83 LOWER COVER (DT9.9K P36)FIG 84 LOWER COVER (DT15 P40)FIG 85 LOWER COVER (DT15 P37)FIG 86 LOWER COVER (DT15K P36)FIG 87 ENGINE COVER (DT9.9 P40)FIG 88 ENGINE COVER (DT9.9K P40)FIG 89 ENGINE COVER (DT9.9K P36)FIG 90 ENGINE COVER (DT15 P40)FIG 91 ENGINE COVER (DT15 P37)FIG 92 ENGINE COVER (DT15K P36)FIG 93 HANDLE (DT9.9 P40)FIG 94 HANDLE (DT9.9K P40)FIG 95 HANDLE (DT9.9K P36)FIG 96 HANDLE (DT15 P40)FIG 97 HANDLE (DT15 P37)FIG 98 HANDLE (DT15K P36)FIG 99 FUEL TANK (RESIN:12L) (DT9.9K P40)FIG 100 FUEL TANK (RESIN:25L) (DT9.9 P40)FIG 101 FUEL TANK (RESIN:25L) (DT9.9K P40)FIG 102 FUEL TANK (RESIN:25L) (DT15 P40)FIG 103 FUEL TANK (RESIN:25L) (DT15 P37)FIG 104 FUEL HOSE (DT9.9K P36)FIG 105 FUEL HOSE (DT15K P36)FIG 106 OPT : STARTER MOTORFIG 107 OPT : ELECTRICAL (1)FIG 108 OPT : ELECTRICAL (2)FIG 109 OPT : REMOTE CONTROL PARTSFIG 110 OPT : REMOTE CONTROLFIG 111 OPT : DRAG LINK

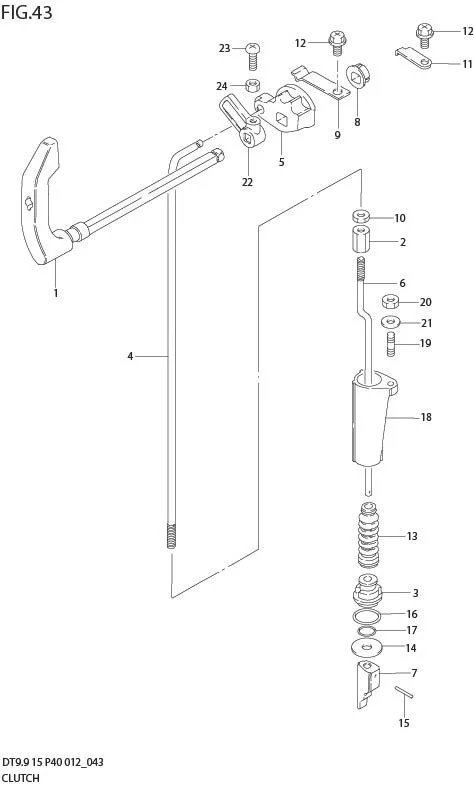

FIG 43 CLUTCH (DT15 P40)

FIG 43 CLUTCH (DT15 P40)
No No. Part Description Qty Price Per Pcs Remarks
1 21110-90L01-000
SUB: 21110-93912-000		 LEVER 1 Rp184.000
2 23311-95DL0-000
SUB: 23311-94300-000		 TURNBUCKLE 1 Rp72.500
3 25211-93901-000 GUIDE 1 Rp50.000
4 DISCONTINUE
SUB: 23111-93901-000		 ROD 1 -
5 DISCONTINUE
SUB: 23211-93900-000		 ARM 1 -
6-1 25111-93911-000 ROD 1 Rp180.000 TRANSOM (S)
6-2 25111-93901-000 ROD 1 Rp202.000 TRANSOM (L)
7 25311-93E11-000 CAM 1 Rp242.500
8 DISCONTINUE
SUB: 21220-93900-000		 BUSH 1 -
9 23213-93900-000 SPRING 1 Rp23.500
10 29141-93J00-000 NUT 1 Rp18.500
11 21126-95L10-000
SUB: 21126-92D00-000		 HOLDER 1 Rp20.000
12 02162-06127-000 SCREW 2 Rp12.500
13 25222-93902-000
SUB: 25222-93901-000		 BOOT 1 Rp67.500
14 09160-05047-000 WASHER (5.5X24X1.6) 1 Rp12.500
15 09205-02004-000 SPRING PIN (2.5X12) 2 Rp10.500
16 09280-05005-000 O RING (D:3.5 1 Rp13.500
17 59291-94J00-000 O RING (D:3.6 1 Rp31.000
18 25215-94J00-000 COLLAR 1 Rp54.000
19 DISCONTINUE
SUB: 09108-05007-000		 STUD BOLT 1 -
20 09140-05005-000 NUT 1 Rp20.000
21 09160-05029-000 WASHER (5.5X12X0.8) 1 Rp14.000
22 DISCONTINUE
SUB: 21313-93900-000		 ARM 1 - ELECTRIC STARTER
23 DISCONTINUE
SUB: 02112-05167-000		 SCREW 1 - ELECTRIC STARTER
24 08310-00057-000 NUT 1 Rp13.500 ELECTRIC STARTER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
