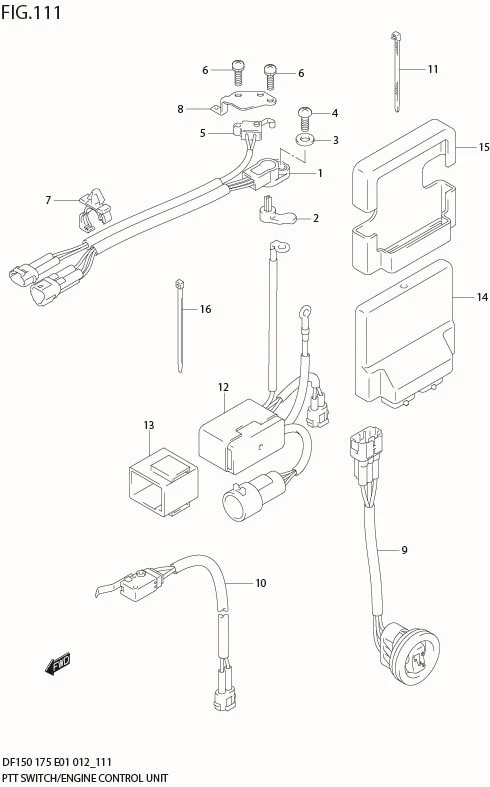

FIG 111 PTT SWITCH / ENGINE CONTROL UNIT (DF150T E1)

FIG 111 PTT SWITCH / ENGINE CONTROL UNIT (DF150T E1)
No No. Part Description Qty Price Per Pcs Remarks
1 13580-93J04-000
SUB: 13580-93J01-000		 SENSOR ASSY, SHIFT POSITION 1 Rp1.457.000
2 37729-93J00-000 LEVER, SHIFT SENSOR 1 Rp15.000
3 09160-05029-000 WASHER (5.5X12X0.8) 1 Rp14.000
4 DISCONTINUE
SUB: 02112-35167-000		 SCREW 1 -
5 37721-93J00-000 SWITCH ASSY, NEUTRAL 1 Rp333.000
6 09137-04004-000 SCREW (4X16) 2 Rp19.500
7 09403-12412-000 CLAMP 2 Rp19.500
8 37725-96J00-000 BRACKET, SWITCH ASSY 1 Rp28.500
9 37850-99E05-000
SUB: 37850-99E04-000		 SWITCH ASSY, PTT 1 Rp736.000
10 37722-93J14-000
SUB: 37722-93J11-000		 SWITCH ASSY, TILT LIMIT 1 Rp371.500
11 09407-14407-000 CLAMP (L:145) 1 Rp18.500
12 38410-93J12-000 RELAY ASSY, PTT 1 Rp1.174.500
13 38415-93J00-000 HOLDER, PTT RELAY 1 Rp52.000
14 33920-96JA0-000 UNIT, ENGINE CONTROL 1 Rp21.987.500
15 33925-93J00-000 CUSHION, ENGINE CONTROL UNIT 1 Rp93.500
16 09407-14407-000 CLAMP (L:145) 0 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
