SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH CONTROL (MT)FIG.24 MT TRANSMISSION GEAR (MT)FIG.25 MT GEAR SHIFT FORK (MT)FIG.26 MT TM CASE (MT)FIG.27 AUTOMATIC TRANSMISSION (AT)FIG.28 AT OIL PUMP (AT)FIG.29 AT INPUT SHAFT (AT)FIG.30 AT PLANETARY GEAR (AT)FIG.31 AT REDUCTION GEAR (AT)FIG.32 AT FWD & REV CLUTCH (AT)FIG.33 AT 2ND BRAKE (AT)FIG.34 AT 1ST & REV BRAKE (AT)FIG.35 AT OVER DRIVE BRAKE (AT)FIG.36 AT TRANSMISSION CASE (AT)FIG.37 AT VALVE (AT)FIG.38 AT PARKING BRAKE (AT)FIG.39 AT OIL COOLER HOSE (AT)FIG.40 GEAR SHIFT CONTROL (MT)FIG.41 GEAR SHIFT CONTROL (AT)FIG.42 AT SELECT LEVER (AT)FIG.43 DRIVE SHAFT (AT)FIG.44 FRONT DIFF GEAR (MT)FIG.45 AT FRONT DIFF GEAR (AT)

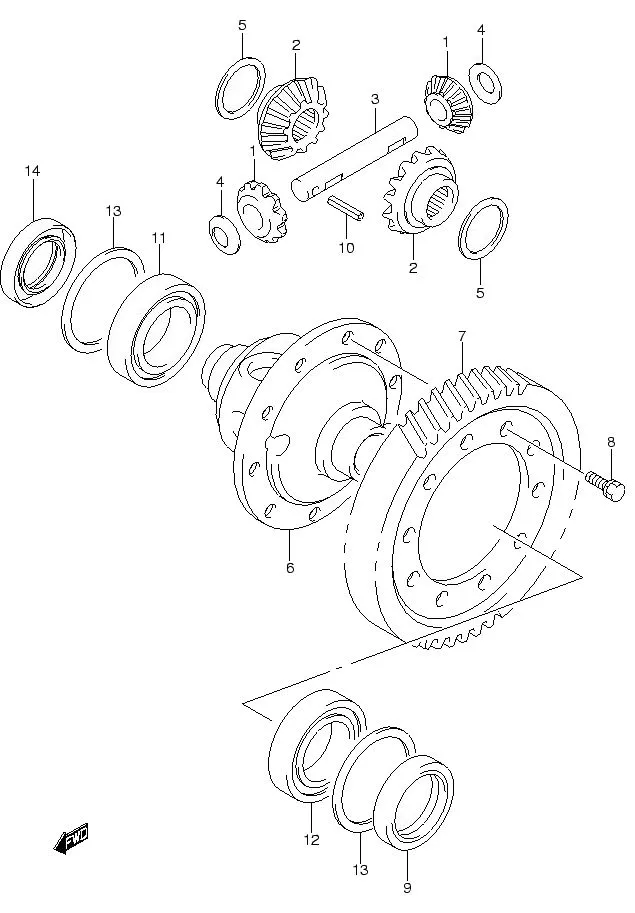

FIG.44 FRONT DIFF GEAR (MT)

FIG.44 FRONT DIFF GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 27331-80J00-000 PINION, DIFFERENTIAL 2 Rp529.500
2 27341-80J00-000 GEAR, DIFFERENTIAL SIDE 2 Rp664.500
3 27351M60MA0-000
SUB: 27351-80J00-000		 SHAFT, DIFF SIDE PINION 1 Rp104.500
4 09164-17011-000
SUB: 09164-17009-000		 WASHER 2 Rp29.000
5-1 09160M35002-000 SHIM (T:1.00) 0 Rp9.500
5-2 09160M35003-000 SHIM (T:1.10) 0 Rp9.000
5-3 09160M35004-000 SHIM (T:1.20) 0 Rp14.500
5-4 09160M35006-000 SHIM (T:0.90) 0 Rp8.500
5-5 09160M35008-000 SHIM (T:0.95) 0 Rp14.500
5-6 09160M35009-000 SHIM (T:1.05) 0 Rp14.000
5-7 09160M35010-000 SHIM (T:1.15) 0 Rp9.500
6 27411-80J00-000 CASE, DIFFERENTIAL 1 Rp1.567.500
7 27511-81K01-000
SUB: 27511-81K00-000		 GEAR, FINAL 1 Rp2.607.000
8 09103-10189-000
SUB: 09103M10189-000		 BOLT (10X23) 10 Rp29.000
9 27432-70C00-000 OIL SEAL, LH 1 Rp105.500
10 09205M05007-000 SPRING PIN (5X36) 1 Rp5.000
11 27521-79JA0-000 BEARING ASSY, DIFF SIDE RH 1 Rp452.500
12 27524-79JA0-000 BEARING ASSY, DIFF SIDE LH 1 Rp386.500
13-1 29541-79JA0-100 SHIM, DIFF SIDE BRG (T:1.00) 0 Rp60.000
13-18 29541-79JA0-168 SHIM, DIFF SIDE BRG (T:1.68) 0 Rp64.000
13-17 DISCONTINUE
SUB: 29541-79JA0-164		 SHIM, DIFF SIDE BRG (T:1.64) 0 -
13-16 29541-79JA0-160 SHIM, DIFF SIDE BRG (T:1.60) 0 Rp64.000
13-15 DISCONTINUE
SUB: 29541-79JA0-156		 SHIM, DIFF SIDE BRG (T:1.56) 0 -
13-14 DISCONTINUE
SUB: 29541-79JA0-152		 SHIM, DIFF SIDE BRG (T:1.52) 0 -
13-13 DISCONTINUE
SUB: 29541-79JA0-148		 SHIM, DIFF SIDE BRG (T:1.48) 0 -
13-12 DISCONTINUE
SUB: 29541-79JA0-144		 SHIM, DIFF SIDE BRG (T:1.44) 0 -
13-11 29541-79JA0-140 SHIM, DIFF SIDE BRG (T:1.40) 0 Rp64.000
13-10 29541-79JA0-136 SHIM, DIFF SIDE BRG (T:1.36) 0 Rp64.000
13-9 29541-79JA0-132 SHIM, DIFF SIDE BRG (T:1.32) 0 Rp64.000
13-8 DISCONTINUE
SUB: 29541-79JA0-128		 SHIM, DIFF SIDE BRG (T:1.28) 0 -
13-7 DISCONTINUE
SUB: 29541-79JA0-124		 SHIM, DIFF SIDE BRG (T:1.24) 0 -
13-6 DISCONTINUE
SUB: 29541-79JA0-120		 SHIM, DIFF SIDE BRG (T:1.20) 0 -
13-5 29541-79JA0-116 SHIM, DIFF SIDE BRG (T:1.16) 0 Rp64.000
13-4 29541-79JA0-112 SHIM, DIFF SIDE BRG (T:1.12) 0 Rp62.000
13-3 29541-79JA0-108 SHIM, DIFF SIDE BRG (T:1.08) 0 Rp64.000
13-2 DISCONTINUE
SUB: 29541-79JA0-104		 SHIM, DIFF SIDE BRG (T:1.04) 0 -
14 27431-79JA0-000 OIL SEAL, RH 1 Rp112.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
