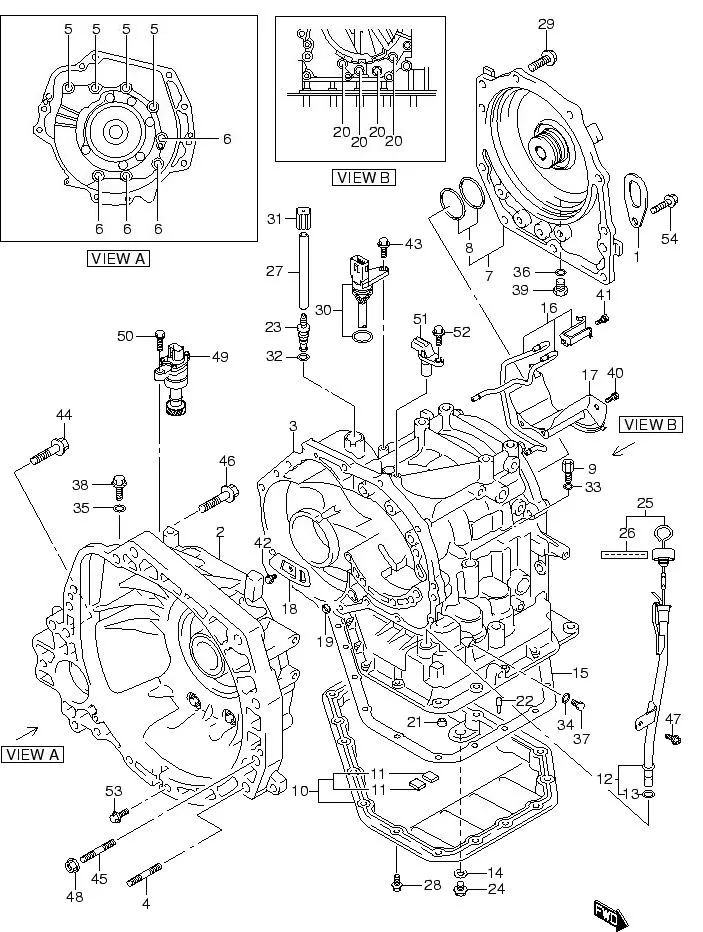

| 1 |
DISCONTINUE
SUB: 11851-62B00-000 |
HOOK, ENGINE |
1 |
- |
| |
| 2 |
24710-79J11-000
SUB: 24710-79J10-000 |
HOUSING, TORQUE CONVERTER |
1 |
Rp7.823.000 |
| |
| 3 |
24720-55G10-000 |
CASE, TRANSMISSION |
1 |
Rp17.608.500 |
| |
| 4 |
DISCONTINUE
SUB: 24725-54G10-000 |
BOLT, HOUSING STUD |
1 |
- |
| |
| 5 |
24725-79C10-000 |
BOLT, HOUSING NO.1 |
11 |
Rp26.500 |
| |
| 6 |
24729-79C10-000 |
BOLT, HOUSING NO.2 |
4 |
Rp32.000 |
| |
| 7 |
24730-55G31-000
SUB: 24730-55G30-000 |
COVER, T/M REAR |
1 |
Rp3.528.000 |
| |
| 8 |
24732-70H10-000 |
•RING, REAR COVER SEAL |
2 |
Rp69.500 |
| |
| 9 |
24743-57B10-000 |
UNION, OIL |
2 |
Rp254.500 |
| |
| 10 |
24761-55GT0-000 |
PAN SET, T/M OIL |
1 |
Rp976.500 |
| |
| 11 |
DISCONTINUE
SUB: 24745-59J00-000 |
•MAGNET, OIL CLEANER |
2 |
- |
| |
| 12 |
DISCONTINUE
SUB: 24770-79J10-000 |
TUBE ASSY, T/M OIL FILLER |
1 |
- |
| |
| 13 |
09280-09008-000 |
•O RING, D:2.1 ID:8.8 |
1 |
Rp20.000 |
| |
| 14 |
24781-57B00-000 |
GASKET, DRAIN PLUG |
1 |
Rp33.500 |
| |
| 15 |
24784-79C10-000 |
GASKET, T/M OIL PAN |
1 |
Rp130.000 |
| |
| 16 |
24811-79JT0-000
SUB: 24811-79CT0-000 |
TUBE SET, DIFF SIDE BEARING |
1 |
Rp257.000 |
| |
| 17 |
DISCONTINUE
SUB: 24813-55G10-000 |
PLATE, OIL RESERVOIR RH |
1 |
- |
| |
| 18 |
DISCONTINUE
SUB: 24814-79C10-000 |
PLATE, OIL RESERVOIR LH |
1 |
- |
| |
| 19 |
24815-60G10-000 |
GASKET, OIL LINE NO.1 |
1 |
Rp74.000 |
| |
| 20 |
24816-60G10-000 |
GASKET, OIL LINE NO.2 |
4 |
Rp72.000 |
| |
| 21 |
24818-68J10-000 |
GASKET, GOVERNOR APPLY NO.1 |
1 |
Rp71.500 |
| |
| 22 |
24819-79C10-000 |
GASKET, BRAKE DRUM |
1 |
Rp95.000 |
| |
| 23 |
24821-79C10-000 |
UNION, BREATHER |
1 |
Rp45.000 |
| |
| 24 |
24823-79C10-000 |
PLUG, DRAIN |
1 |
Rp31.000 |
| |
| 25 |
24830-79J31-000
SUB: 24830-79J30-000 |
GAUGE, T/M OIL LEVEL |
1 |
Rp283.000 |
| |
| 26 |
DISCONTINUE
SUB: 24839-61A31-000 |
•EMBLEM, ATF |
1 |
- |
| |
| 27 |
24856-79C10-000 |
HOSE, T/M BREATHER |
1 |
Rp77.000 |
| |
| 28 |
24882-79C10-000 |
BOLT, T/M OIL PAN |
18 |
Rp22.000 |
| |
| 29 |
DISCONTINUE
SUB: 24734-60G10-000 |
BOLT, REAR COVER NO.2 |
9 |
- |
| |
| 30 |
24892-79C10-000 |
HARNESS, SOLENOID WIRE |
1 |
Rp1.127.000 |
| |
| 31 |
27991-65D01-000 |
PLUG, BREATHER |
1 |
Rp22.500 |
| |
| 32 |
27992-79C10-000 |
O RING, BREATHER PLUG |
1 |
Rp24.000 |
| |
| 33 |
29737-57B00-000 |
O RING, OIL PIPE |
2 |
Rp71.000 |
| |
| 34 |
29738-57B00-000 |
O RING T/M CASE PLUG |
1 |
Rp47.500 |
| |
| 35 |
29738-57B00-000 |
O RING T/M CASE PLUG |
2 |
Rp47.500 |
| |
| 36 |
29738-57B00-000 |
O RING T/M CASE PLUG |
4 |
Rp47.500 |
| |
| 37 |
DISCONTINUE
SUB: 29849-57B00-000 |
PLUG, T/M CASE |
1 |
- |
| |
| 38 |
DISCONTINUE
SUB: 29849-57B00-000 |
PLUG, T/M CASE |
2 |
- |
| |
| 39 |
DISCONTINUE
SUB: 29849-57B00-000 |
PLUG, T/M CASE |
4 |
- |
| |
| 40 |
29970-57B00-000 |
BOLT, SOL WIRE HARN CLAMP |
3 |
Rp83.000 |
| |
| 41 |
29970-57B00-000 |
BOLT, SOL WIRE HARN CLAMP |
1 |
Rp83.000 |
| |
| 42 |
26449-65G10-000 |
BOLT |
1 |
Rp27.500 |
| |
| 43 |
29989-57B00-000 |
BOLT |
1 |
Rp69.500 |
| |
| 44 |
09103-12060-000 |
BOLT (12X50) |
2 |
Rp35.500 |
| |
| 45 |
09108-12012-000 |
BOLT, STUD |
1 |
Rp35.000 |
| |
| 46 |
01550-1255A-000 |
BOLT |
4 |
Rp31.000 |
| |
| 47 |
DISCONTINUE
SUB: 01550B0612AN000 |
BOLT |
1 |
- |
| |
| 48 |
08316-1012A-000
SUB: 08316B1012AN000 |
NUT |
1 |
Rp6.500 |
| |
| 49 |
26130-70H51-000
SUB: 26130-70H50-000 |
GEAR, SPEEDOMETER DRIVEN |
1 |
Rp1.371.000 |
| |
| 50 |
DISCONTINUE
SUB: 26135-79C10-000 |
BOLT, SPEED SENSOR |
1 |
- |
| |
| 51 |
26143-79C10-000 |
SENSOR, SPEED INPUT |
1 |
Rp1.456.000 |
| |
| 52 |
29989-57B00-000 |
BOLT |
1 |
Rp69.500 |
| |
| 53 |
01550-1035A-000
SUB: 01550B1035AN000 |
BOLT |
2 |
Rp5.500 |
| |
| 54 |
01550-0820A-000
SUB: 01550B0820AN000 |
BOLT |
1 |
Rp5.500 |
| |
