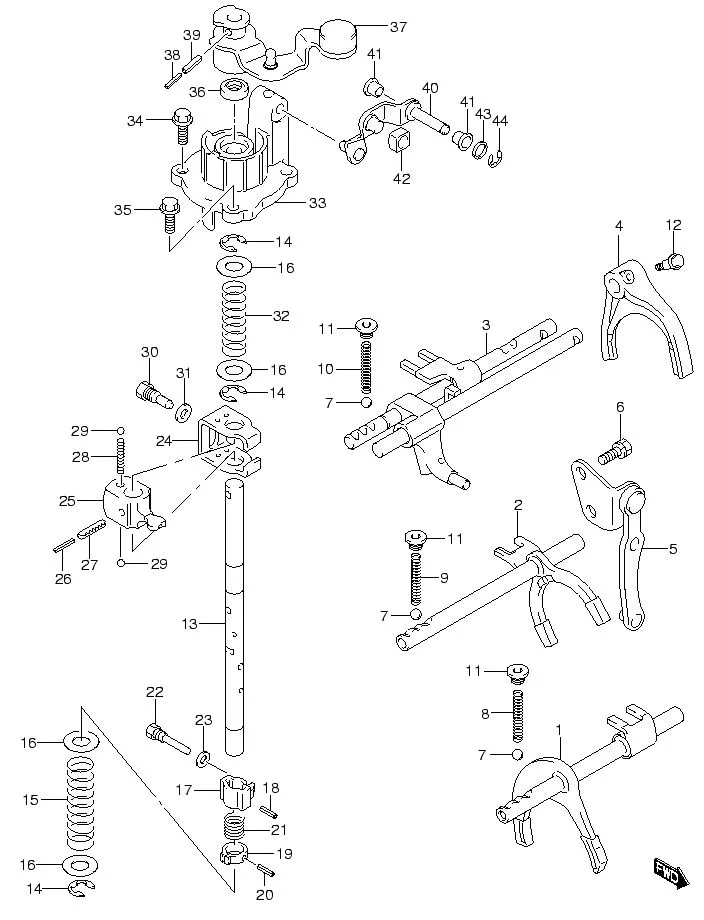

FIG.25 MT GEAR SHIFT FORK (MT)

FIG.25 MT GEAR SHIFT FORK (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 25401-55G00-000		 SHAFT, LOW SPEED GEAR SHF 1 -
2 DISCONTINUE
SUB: 25402-55G00-000		 SHAFT, HIGH SPEED GEAR SHF 1 -
3 25403-51KA0-000
SUB: 25403-55G00-000		 SHAFT, 5TH & REV GR SHF 1 Rp1.592.500
4 25231-54G01-000 FORK, 5TH GEAR SHIFT 1 Rp647.500
5 25460-70C00-000 LEVER, REVERSE GEAR SHIFT 1 Rp200.000
6 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000
7 06111-12004-000 BALL 3 Rp14.000
8 25415-70C01-000 SPRING, LOW SPEED 1 Rp39.000
9 25425-70C02-000 SPRING, HIGH SPEED 1 Rp37.000
10 25435-70C02-000 SPRING, GEAR SHIFT 1 Rp39.000
11 DISCONTINUE
SUB: 25416-70C00-000		 BOLT 3 -
12 25291-70C00-000 BOLT 1 Rp19.500
13 DISCONTINUE
SUB: 25571-79J00-000		 SHAFT, GEAR SHIFT/SELECT 1 -
14 08332-1112A-000 E RING 3 Rp14.000
15 DISCONTINUE
SUB: 25576-59J00-000		 SPRING, LOW SELECT 1 -
16 08212M14301-000 THRUST WASHER 4 Rp4.500
17 25581-51K01-000
SUB: 25581M50F00-000		 CAM, 5TH/REVERSE GEAR SHIFT 1 Rp199.500
18 09205M04009-000 SPRING PIN (4.5X20) 1 Rp5.500
19 DISCONTINUE
SUB: 25582-60B51-000		 GUIDE, 5TH & REVERSE GEAR 1 -
20 09205M03035-000 SPRING PIN (3X22) 1 Rp6.500
21 25583M60B50-000 SPRING, RETURN 1 Rp6.500
22 DISCONTINUE
SUB: 25584-70C00-000		 BOLT 1 -
23 08322M0108A-000 WASHER 1 Rp5.500
24 25311-59J20-000
SUB: 25311-79J00-000		 PLATE, GEAR SHIFT INTER LOCK 1 Rp111.000
25 DISCONTINUE
SUB: 25541-79J00-000		 LEVER, GEAR SHIFT/SELECT 1 -
26 09205M03016-000 SPRING PIN (3.5X28) 1 Rp4.500
27 09205M06022-000
SUB: 09205M06004-000		 SPRING PIN (6X28) 1 Rp6.500
28 DISCONTINUE
SUB: 25312-59J00-000		 SPRING, INTER LOCK 1 -
29 06111M07004-000 BALL 2 Rp3.000
30 DISCONTINUE
SUB: 25321-86G00-000		 BOLT 1 -
31 08322M0110A-000 WASHER 1 Rp4.500
32 DISCONTINUE
SUB: 25576-83E00-000		 SPRING, REVERSE SELECT 1 -
33 DISCONTINUE
SUB: 25573-79J01-000		 CASE, GEAR SHIFT GUIDE 1 -
34 09103-08419-000 BOLT (8X25) 2 Rp14.000
35 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
36 09283M14005-000
SUB: 09283-14006-000		 SEAL, OIL (14X22X6) 1 Rp9.000
37 DISCONTINUE
SUB: 25610-79J00-000		 LEVER, SHIFT CABLE 1 -
38 09205M03049-000
SUB: 09205M03037-000		 SPRING PIN (3X25) 1 Rp6.500
39 09205M06016-000
SUB: 09205-06007-000		 SPRING PIN (6X25) 1 Rp4.500
40 DISCONTINUE
SUB: 25620-79J00-000		 LEVER, SELECT CABLE 1 -
41 25625-79J00-000 BUSH 2 Rp24.500
42 25559-79J00-000 BUSH, SHAFT 1 Rp48.000
43 08322M0108A-000 WASHER 1 Rp5.500
44 08332-1106A-000
SUB: 08332B1106AN000		 E RING 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
