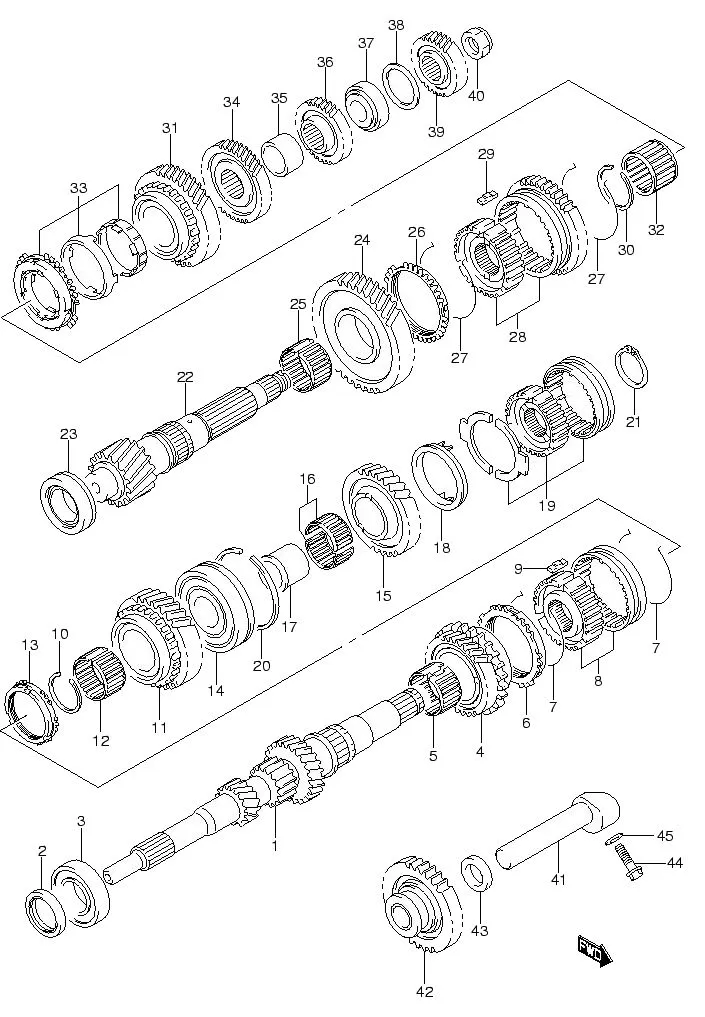

FIG.24 MT TRANSMISSION GEAR (MT)

FIG.24 MT TRANSMISSION GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111-59J02-000
SUB: 24111-59J00-000		 SHAFT, INPUT 1 Rp3.911.000
2 09283-25088-000 SEAL, OIL (25X38X6) 1 Rp60.000
3 24155-77M00-000
SUB: 08133B63057N000		 BEARING 1 Rp128.500
4 DISCONTINUE
SUB: 24230-68J00-000		 GEAR, INPUT SHAFT 3RD 1 -
5 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
6 24432-60A00-000 RING, SYNCHRONIZER 1 Rp562.000
7 24442-70C00-000 SPRING, SYNCHRONIZER 2 Rp23.000
8 24410-77MA0-000
SUB: 24410-59J00-000		 HUB, HIGH SPEED SYNCHRONIZER 1 Rp1.032.000
9 24472-60B00-000 KEY 3 Rp25.000
10 24451-60B00-000 CIRCLIP 1 Rp30.500
11 24240-71C00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.370.500
12 09263-30030-000 BEARING (30X35X24.8) 1 Rp135.500
13 24432-60A00-000 RING, SYNCHRONIZER 1 Rp562.000
14 24165-77M00-000
SUB: 09262B25106N000		 BEARING (25X72X19) 1 Rp220.000
15 24114-71C01-000 GEAR, INPUT SHAFT 5TH 1 Rp1.456.000
16 24200-70800-000 BEARING SET 1 Rp261.000
17 24119-70C00-000 SPACER 1 Rp255.000
18 24435-84A20-000
SUB: 24435-84A00-000		 RING, SYNCHRONIZER 1 Rp280.500
19 24420-55G01-000
SUB: 24420-55G00-000		 HUB, 5TH SPEED SYNCHRONIZER 1 Rp1.479.000
20 09380-72002-000 RING, SNAP 1 Rp42.500
21 08331-3124A-000
SUB: 08331-31246-000		 CIRCLIP 1 Rp15.000
22 DISCONTINUE
SUB: 24131-81K00-000		 SHAFT, TRANSMISSION COUNTER 1 -
23 09265-30021-000 BEARING (28X52X16) 1 Rp321.000
24 DISCONTINUE
SUB: 24311-71C00-000		 GEAR, COUNTER SHAFT LOW 1 -
25 09263-37005-000 BEARING (37X42X23.8) 1 Rp189.500
26 24431-70C00-000 RING, SYNCHRONIZER 1 Rp315.500
27 24441-70C00-000 SPRING, SYNCHRONIZER 2 Rp23.000
28 24400-55G00-000 HUB, LOW SPEED SYNCHRONIZER 1 Rp1.870.500
29 24471-70C00-000 KEY 3 Rp30.000
30 24451-70C00-000 CIRCLIP 1 Rp31.000
31 24321-55G01-000
SUB: 24321-55G00-000		 GEAR, COUNTER SHAFT 2ND 1 Rp1.279.500
32 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
33 24430-55G01-000
SUB: 24430-55G00-000		 RING ASSY, 2ND GEAR SYNC 1 Rp1.048.500
34 DISCONTINUE
SUB: 24331-71C00-000		 GEAR, COUNTER SHAFT 3RD 1 -
35 DISCONTINUE
SUB: 24336-70C00-000		 SPACER 1 -
36 24341-71C00-000 GEAR, COUNTER SHAFT 4TH 1 Rp1.001.000
37 09265-25041-000 BEARING (25X52X19.25) 1 Rp283.500
38-7 09181-41008-000 SHIM (T:0.85) 0 Rp44.000
38-13 09181-41014-000 SHIM (T:1.15) 0 Rp44.000
38-12 09181-41013-000 SHIM (T:1.10) 0 Rp44.000
38-11 09181-41012-000 SHIM (T:1.05) 0 Rp44.000
38-10 09181-41011-000 SHIM (T:1.00) 0 Rp47.500
38-9 09181-41010-000 SHIM (T:0.95) 0 Rp44.000
38-8 09181-41009-000 SHIM (T:0.90) 0 Rp44.000
38-6 09181-41007-000 SHIM (T:0.80) 0 Rp47.500
38-5 09181-41006-000 SHIM (T:0.75) 0 Rp44.000
38-4 09181-41005-000 SHIM (T:0.70) 0 Rp44.000
38-3 09181-41004-000 SHIM (T:0.65) 0 Rp44.000
38-2 DISCONTINUE
SUB: 09181-41003-000		 SHIM (T:0.60) 0 -
38-1 DISCONTINUE
SUB: 09181-41002-000		 SHIM (T:0.55) 0 -
39 24351-71C00-000 GEAR, COUNTER SHAFT 5TH 1 Rp1.019.500
40 09159-20009-000 NUT 1 Rp74.000
41 DISCONTINUE
SUB: 24551-70C02-000		 SHAFT, REVERSE GEAR 1 -
42 24560-70C60-000
SUB: 24560-70C21-000		 GEAR, REVERSE IDLER 1 Rp924.000
43 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
44 24565-60B00-000 BOLT 1 Rp21.500
45 09168M08030-000 WASHER (8.2X17X1) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
