What’s New

Led Projector Headlamp With 3 Point Signature Led Lamp

Exterior Liquid Flow Design

Head-up Display

Fuel Efficient K15B Engine

Photo Galery

Download Brochure *Specification might change without notice

Suzuki Insurance

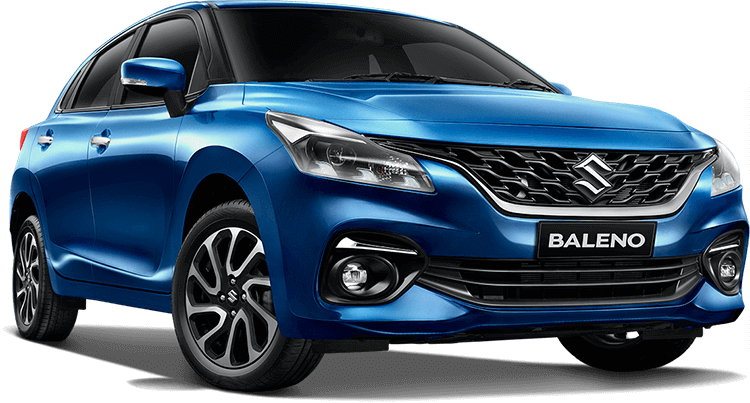

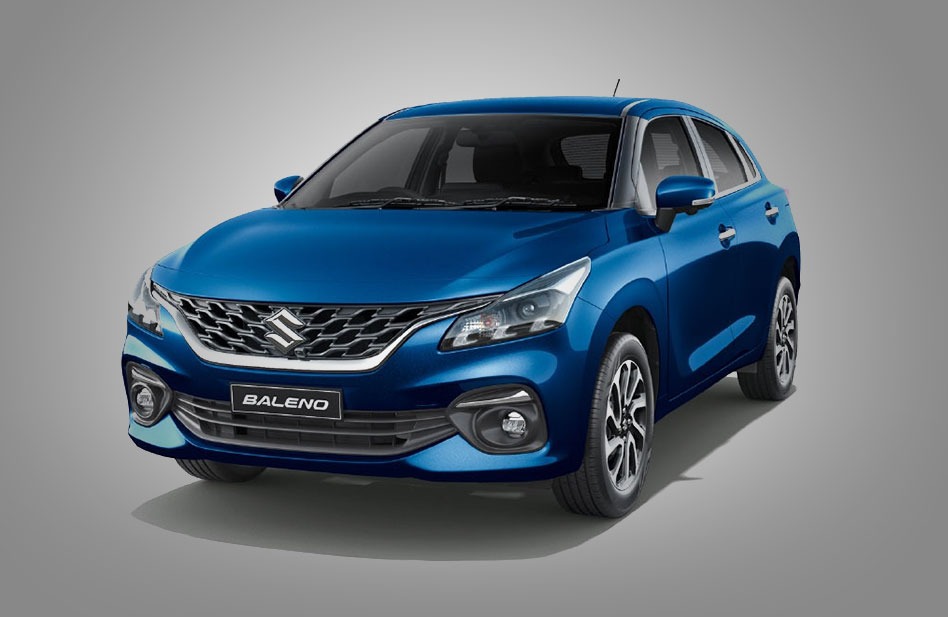

Exterior (Hero Angle)

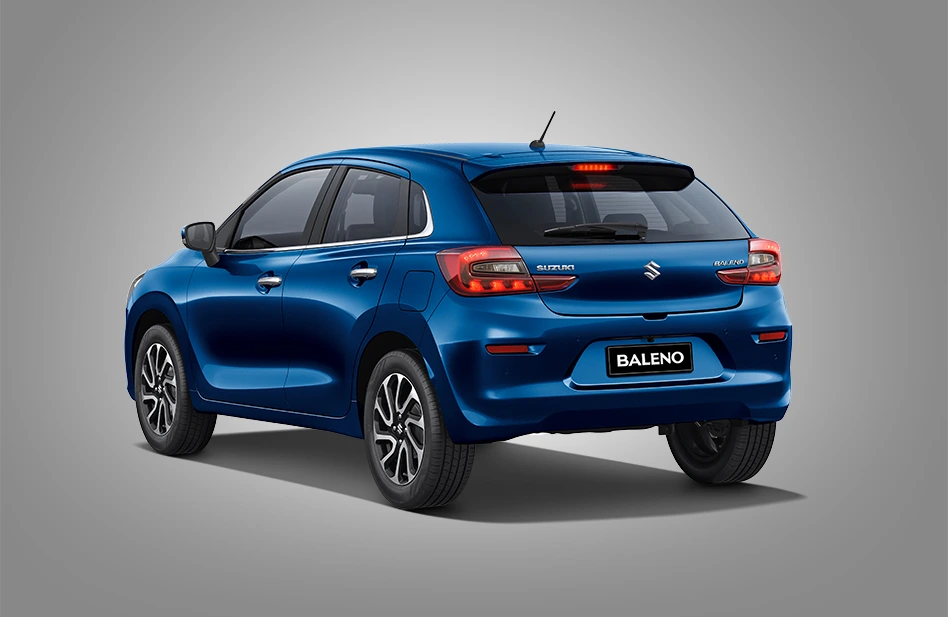

Exterior (Back Frontal)

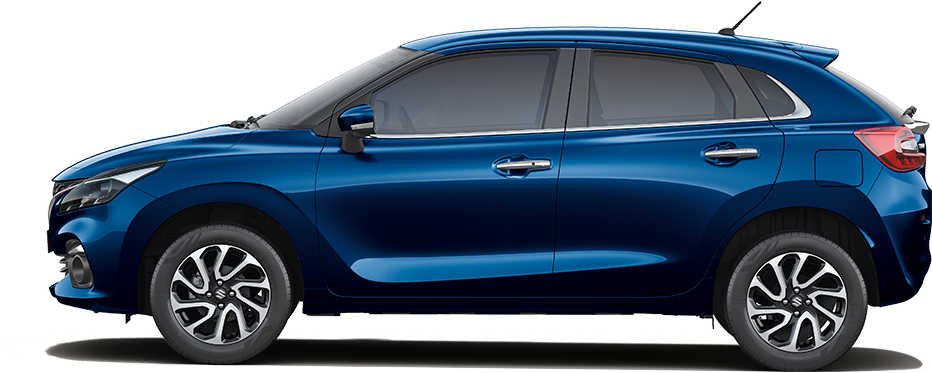

Exterior (Side)

PRME Celestial Blue

Hill Hold Control (AT)

HHC adalah fitur pembantu atau keamanan pada sistem pengereman saat berada di tanjakan.

Electronic Stability Program (ESP)*

Mencegah saat mobil berbelok terlalu understeer atau oversteer. Sistem ini adalah fitur keamanan pada mobil ini.

Braking System (ABS, EBD & BA)

ABS (Anti Lock Braking System) : Mencegah ban mengunci saat terjadi pengereman mendadak atau tiba-tiba.
EBD (Electronic Brake Distribution): Membagi besaran daya pengereman ke semua roda
BA (Braking Assist) : Menambah tekanan pengereman secara otomatis.

HEARTECT

Platform Heartect mampu meningkatkan fitur keamanan dengan bodi yang lebih ringan dan kokoh serta irit bahan bakar.

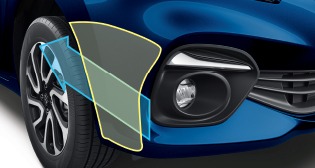

Pedestrian Injury Mitigation Body

Menyerap energi benturan pada saat terjadinya tabrakan antara pejalan kaki dengan kendaraan dan mengurangi resiko cedera pada pejalan kaki.

Pretensioner Front Seat Belt

Menambah unsur keamanan dengan berfungsi mengencangkan tali sabuk pengaman secara otomatis pada saat terjadi benturan.

6 Airbags

Mencegah pengemudi & penumpang dari benturan kerasnya tabrakan. Supaya melindungi dari benda keras atau tajam.

Fire Estinguisher

Alat Pemadam Kebakaran Ringan (APAR) yang dapat digunakan pada saat keadaan darurat.

Immobilizer

Mesin tidak dapat dinyalakan jika menggunakan kunci yang bukan aslinya.

Isofix

Fitur keamanan yang diperuntukkan untuk anak kecil.

SPECIFICATION

5 people

Seating Capacity

37 Liter

Fuel Tank Capacity

3990 mm

Length

2520 MM

Wheelbase

BANDINGKAN DENGAN MOBIL LAIN

AJUKAN TES DRIVE

TECHNICAL SPECIFICATIONS

DIMENSI / DIMENSION

Panjang keseluruhan / Overall length 3,990 MM

Lebar keseluruhan / Overall width 1,745 MM

Tinggi keseluruhan / Overall height 1,485 MM

Jarak poros roda / Wheelbase 2,520 MM

Jarak pijak depan / Front tread 1,505 MM

Jarak pijak belakang / Rear tread 1,510 MM

Radius putar minimal / Minimum turning radius 5.1 M

Ground Clearance 160 MM

KAPASITAS / CAPACITIES

Tempat duduk / Seating capacity 5 Orang / Persons

Kapasitas tangki / Fuel tank capacity 37 Litres

MESIN / ENGINE

Jenis / Type K15B

Silinder / Number of cylinders 4 inline

Jumlah katup / Number of valves 16

Isi silinder / Piston displacement 1,462 CC

Diameter x langkah / Bore x stroke 74.0 x 85.0 MM

Daya Maksimal / Maximum output 104.6/6,000 PS/rpm

Torsi maksimal / Maximum torque 138/4.400 Nm/rpm

Sistem bahan bakar / Fuel system Multipoint injection

TRANSMISI / TRANSMISSION

Perbandingan gigi / Gear ratio	1st	3.545	2.875
	2nd	1.905	1.568
	3rd	1.233	1.000
	4th	0.886	0.697
	5th	0.690	N.A
	Mundur / Reverse	3.250	2.300
Perbandingan gigi akhir / Final gear ratio		4.353	4.145

RANGKA / CHASSIS

Sistem kemudi / Electric power steering		Rack & Pinion, Electric Power Steering
Suspensi / Suspension	Depan / Front Belakang / Rear	MacPherson Strut with Coil Spring Torsion Beam with Coil Spring
Rem / Brakes	Depan / Front Belakang / Rear	Ventilated Disc Drum (leading and trailing)
Ukuran Ban / Tyres		195/55 R16

BERAT / WEIGHT

Berat kotor kendaraan / Gross vehicle weight 1,430 KG

Equipments

Engine

Engine Petrol 1.5L

Drive system 2WD

Seating capacity 5

CHASSIS

Tyres & wheels 195/55R16 + alloy wheels

Spare tyre & wheel 195/55R16 + steel wheel

EXTERIOR

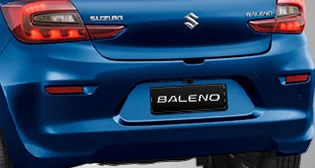

Bumper Body coloured

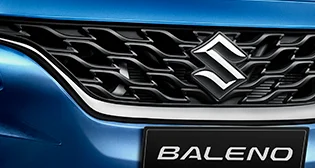

Front Grille Black with Chrome Accent

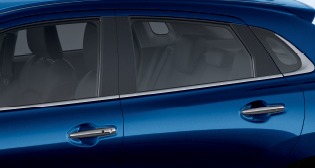

Outside door handles Chrome

VISIBILITY

Headlamps LED Projector

Wipers Front: 2 speed (low, high) + adjustable intermittent + washer

Rear Back Door Defogger

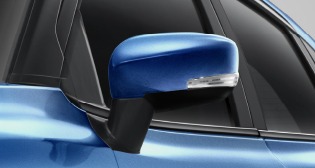

Outside door mirrors Body coloured Electric adjustable & foldable

Day/night rearview mirror Automatic dimming

STEERING & INSTRUMENT PANEL

3-spoke steering wheel with Leather Covered

Power steering with Tilt and telescopic

Audio Switch, Cruise control, Hands Free Phone Control

Information Display 4.2 inch LCD Display

DRIVING AMENITIES

Electric windows Front & Rear

Remote controled door locks With hazard lamp answerback function

Keyless Push Start System

Air conditioner Automatic

Heater

Audio Antenna Front & Rear speakers + 2x Tweeter

INTERIOR

Cabin lights Front cabin light (3-position)

Sun visors Driver’s side with Ticket Holder, Vanity Mirror & illumination lamp Passenger’s side with Ticket Holder, Vanity Mirror & illumination lamp

Assist grips Passenger’s side

Cup holder Front x 2

Bottle holder Front x 2, Rear x 2

12V accessory socket Front console

Fuel lid opener

Inside door handles Chrome

Storage pockets Front door

Head Up Display
