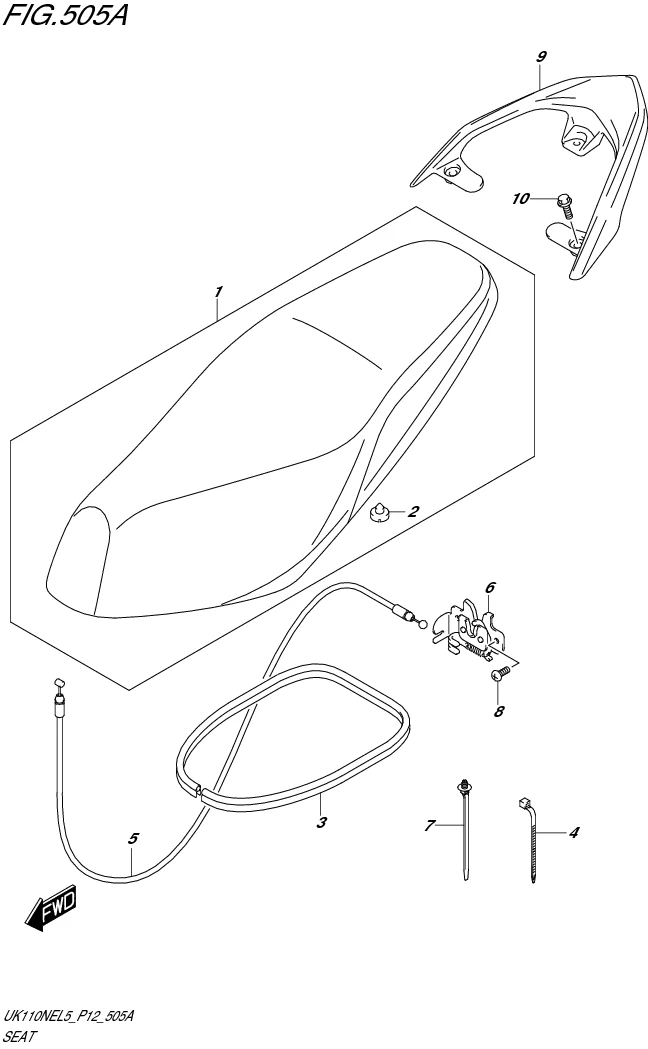

FIG. 505A SEAT

FIG. 505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-40J06-PRQ
SUB: 45100-40J00-PRQ		 SEAT ASSY (BLACK) 1 Rp432.000
2 45148-20G90-000 .CUSHION, SEAT MOUNT 2 Rp4.500
3 45211-40J01-000
SUB: 45211-40J00-000		 MOLDING, SEAT 1 Rp27.500
4 36990-25G20-000 CLAMP, SEAT LOCK CABLE 2 Rp9.500
5 45280-40J10-000
SUB: 45280-40J00-000		 CABLE, SEAT LOCK 1 Rp34.500
6 45700-33G60-000 BRACKET, STRIKER SUPPORT 1 Rp38.000
7 09407-17403-000 CLAMP (L:154) 3 Rp3.500
8 01547-0610A-000
SUB: 02112-0610A-000		 SCREW 2 Rp3.000
9 46211-40J00-13L HANDLE, PILLION RIDER (SILVER) 1 Rp191.000
10 01550-0825A-000 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
